- 37 -
turned on. Stage 2 would be how long the Nitrous stayed on.
If it is desired to have the Nitrous on for the rest of the pass,
enter a Stage 2 time greater than the vehicle’s ET.

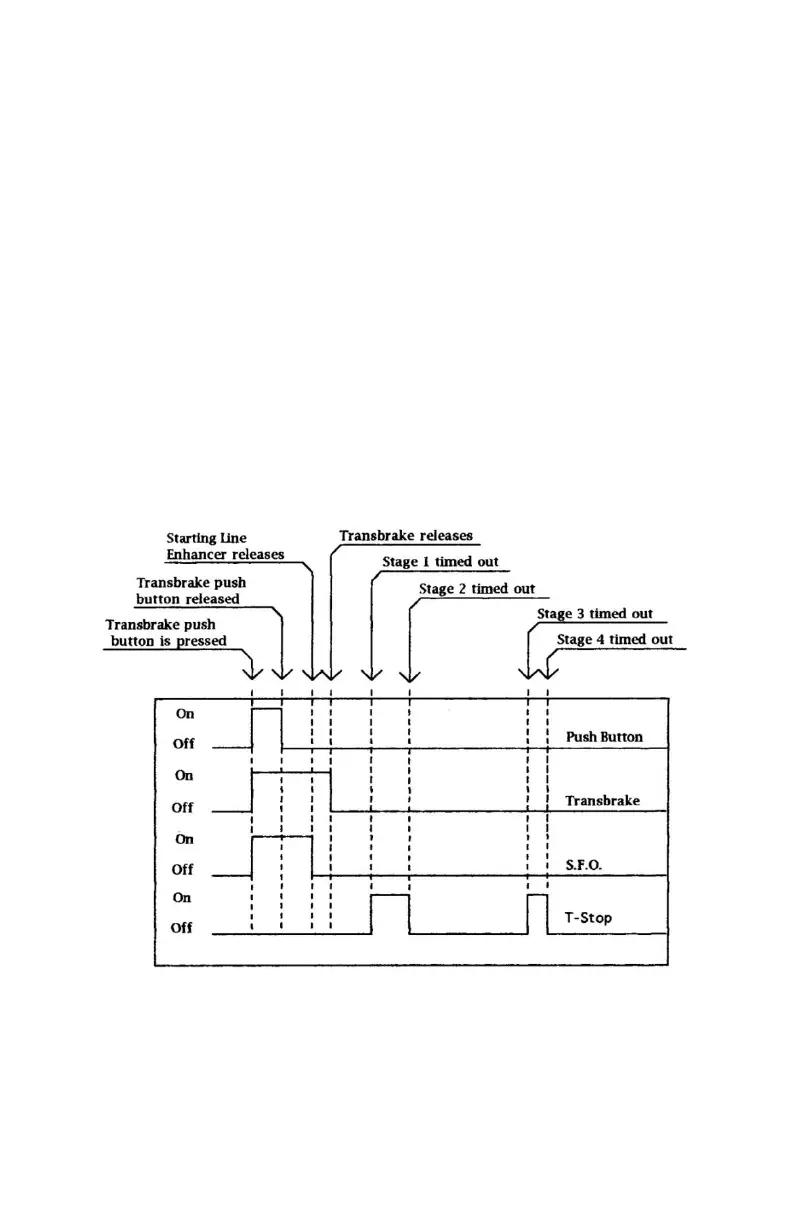

The Chart below shows the operation of the 4-Stage
Timer in relation to the release of the Transbrake solenoid.
Crossover Delay = 01.35
Starting Line Enhancer = 00.40
Timer 1 = 1.000
Timer 2 = 2.000
Timer 3 = 08.00
Timer 4 = 00.50
