Digital Dream DDCS V2.1 User Manual

This screw terminal block contains three kinds of input signals. The external switches for Start and Pause,
Probe, Limit/Home and E-Stop. Home and Limit switches can be NO or NC, the parameters can be set accord-
ingly in the Parameter Page.

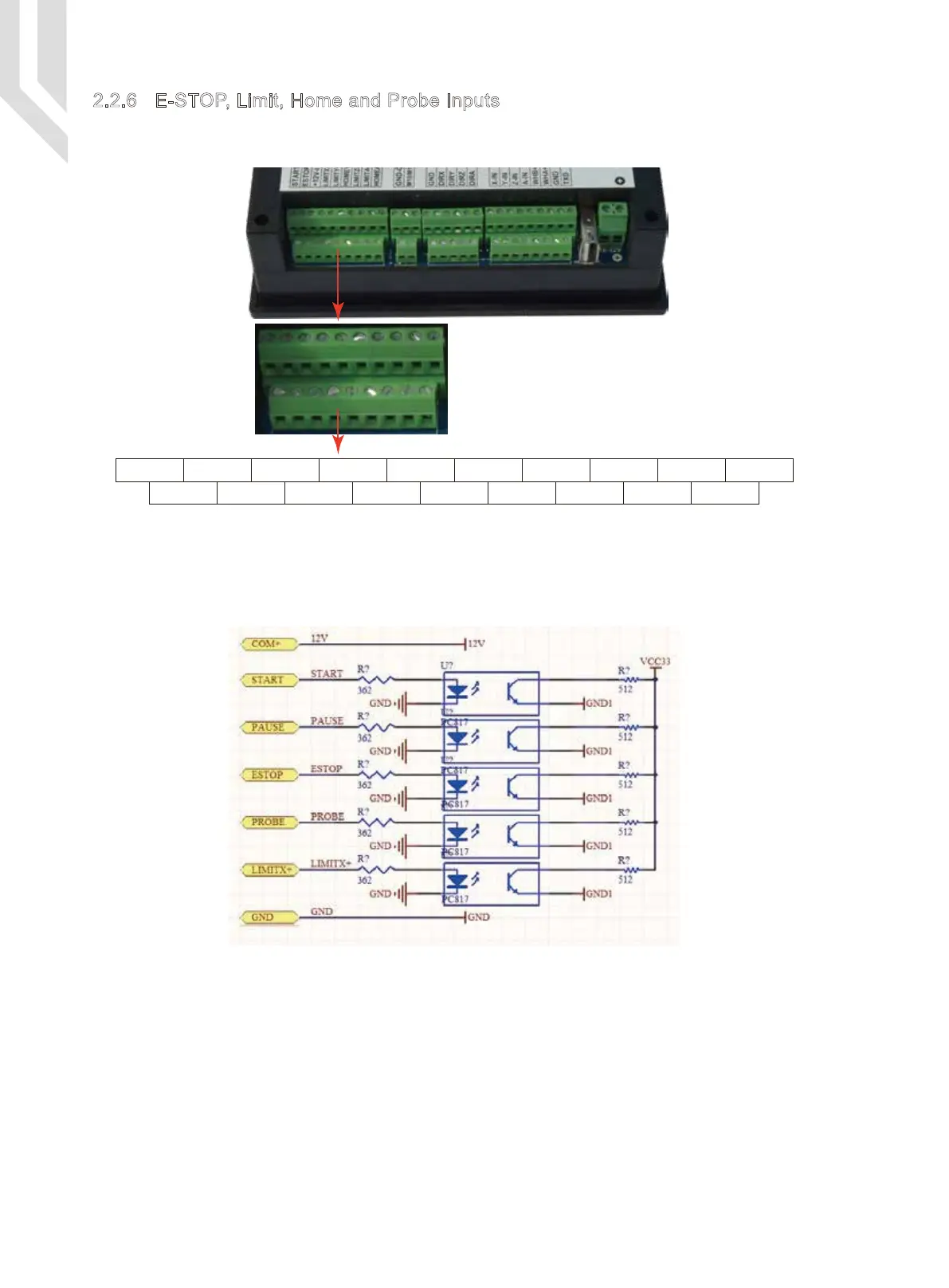

As picture 2-8 shows, the far left terminal block is the Input Port.See pictures for reference
2.2.6 E-STOP, Limit, Home and Probe Inputs
Picture 2-8 Input Port terminal
Start Estop +12V Limit X- Limit Y+ Home Y Home Z- Limit A+ Home A
+12V Pause Probe Limit X+ Home X Limit Y- Limit Z+ Home Z Limit A- GND
Picture 2-9 ESTOP, LIMIT and PROBE input signal circuit
Page -11Digtital Dream 4 Axis Motion Controller DDCS V2.1 User’s Manual

Digital Dream DDCS V2.1 Specifications

General

Brand	Digital Dream
Model	DDCS V2.1
Category	Controller
Language	English
