Digital Dream DDCS V2.1 User Manual

The DDCS V2.1 is a small box that can fit in a window of a small control box or control cabinet. Two
locking hooks fix this controller from the inside. The dimension you find in picture 1-1 and picture 1-2.
The front panel is 163mm*102mm*5mm；
The main body is 156mm*93mm*45mm；
To mount the unit in an equipment cabinet, cut the hole156mm*93mm

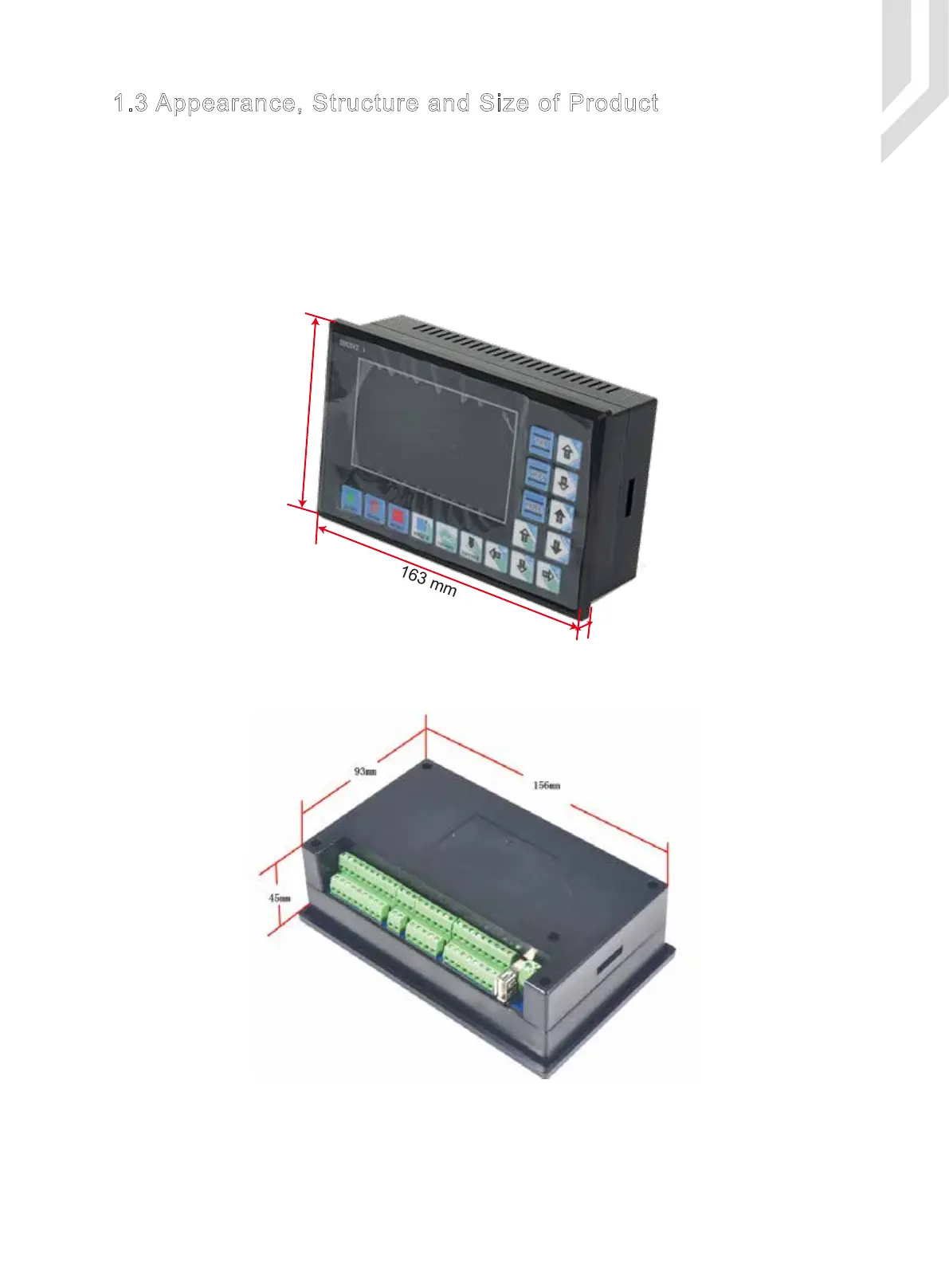

1.3 Appearance, Structure and Size of Product
Picture 1-1 DDCS V2.1 Front external view and dimensions
Picture 1-2 DDCS V2.1 Rear view and dimensions
Page -2Digtital Dream 4 Axis Motion Controller DDCS V2.1 User’s Manual
5 mm
163 mm
102 mm

Digital Dream DDCS V2.1 Specifications

General

Brand	Digital Dream
Model	DDCS V2.1
Category	Controller
Language	English
