5.1 Ethernet Communication Interface to PC
5.1.1 Setup with direct connection to a LAN network card.
To setup the network on the computer side there are two ways for our device:
1) Setup with direct connection to a LAN network card;
2) Setup with connection via switch/router.
Firstly connect the EC500 controller to PC by the ethernet cable.
To Setup the connection with direct cable connection click on the name of the connection and on the pop-up
window press the Properties button.Please note that for this action to work the user must have administrator
rights inWindows account.Control Panel -> Network and Internet -> Network Connections.
Pls remember to shut down the firewall of the computer before the connection.

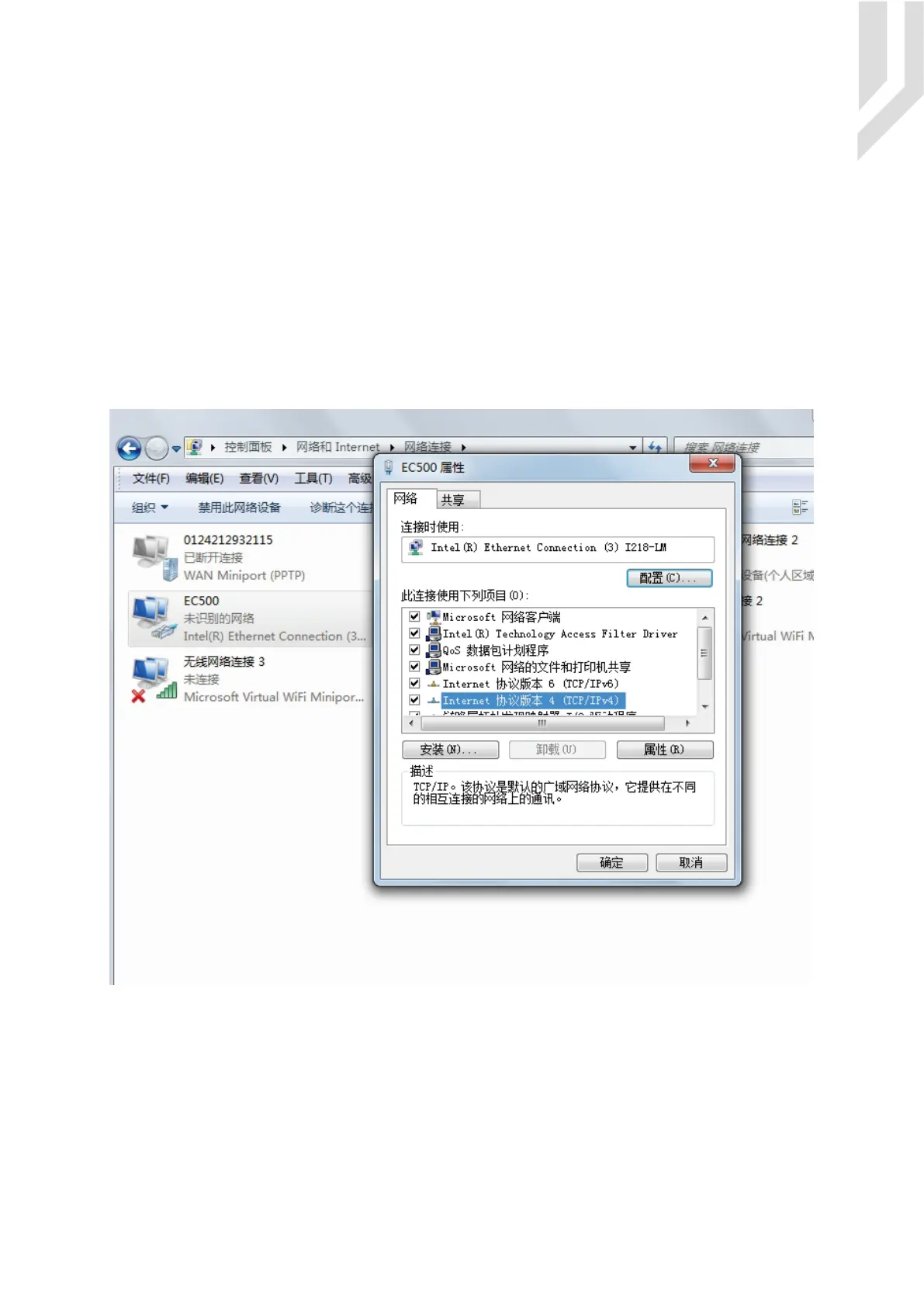

Picture 5-2 EC500 Ethernet Commnication Setup
Page -5Digital Dream Mach3 Motion Controller EC500 User’s Manual
