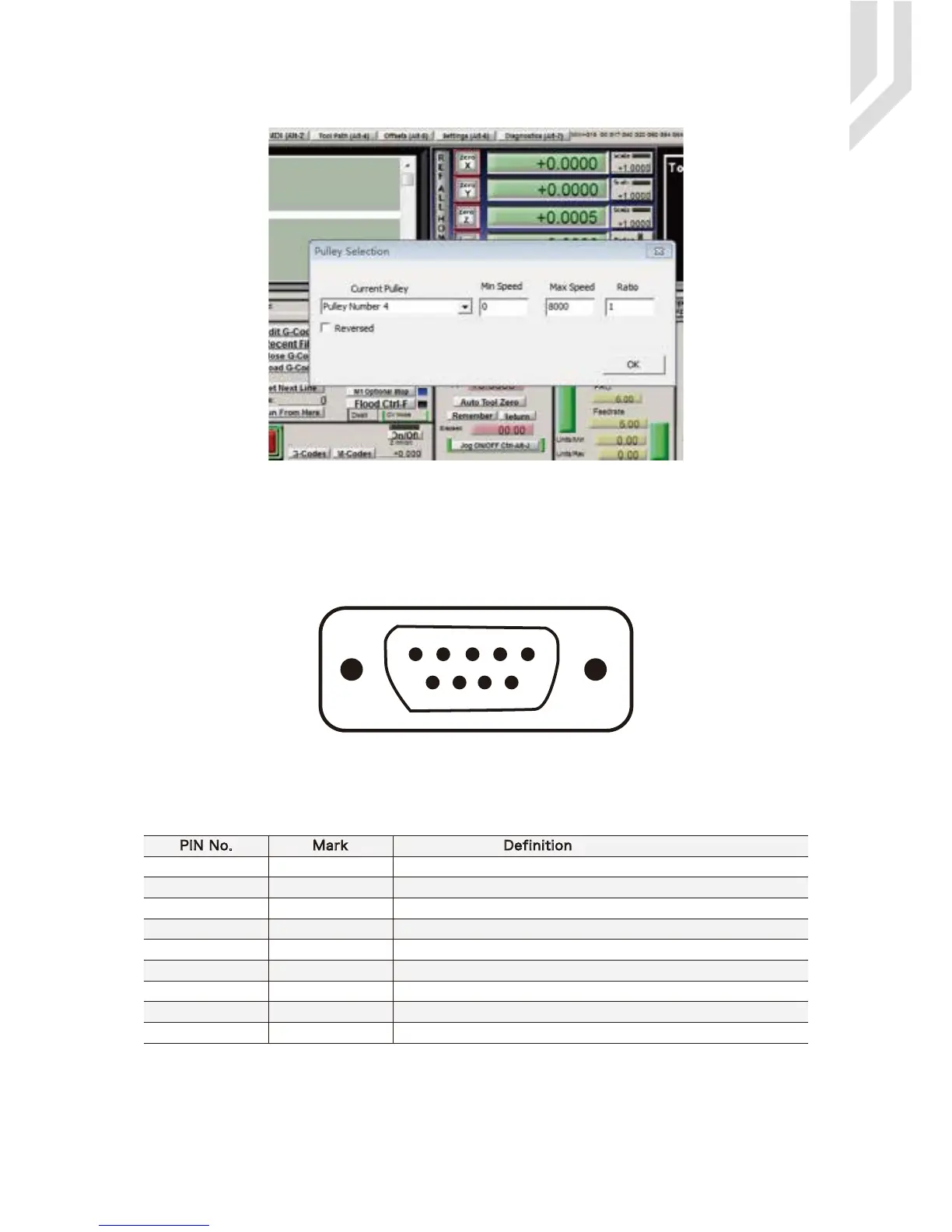

As the Picture 5-1 showed. the marked No. 4 is General output interface. This is a DB9 port.
5.4 General output interface
Picture 5-4
UC300 Spindle Motor Max Speed Setting
1
5
6
9
PIN
No.
Definition
Mark
1
2
3
4
5
6
7
8
9
OUTPUT 4
OUTPUT 6
OUTPUT 8
OUTPUT 10
Common Ground for output
OUTPUT3
OUTPUT5
OUTPUT7
OUTPUT9
OUT4
OUT6
OUT8
OUT10
GND
OUT3
OUT5
OUT7
OUT9
Picture 5-5
General Output Interface
UC300 User’s Manual
Page -7
Digital Dream Mach3 Motion Controller
8
10
Table of Contents
Default Chapter
2
Table of Contents
2
1 Brief Description of the UC300 Motion Controller
3
2 Safety Notes
4
3 Physical Installation of the Device
4
5 Wiring and Ports Description
7
Stepper/Servo Motor Control Interface Connection
7
Spindle Control Output Port
8
General Output Interface
9
Serial Extend Port
12
Adjustable Input Interface
14
Power Supply for Controller System and Power Supply for IO Port
15
6 Mach 3 Configuration
16
Check UC300 Plug-In in the Mach3 Software
17
Motor Tuning and Setup
18
MPG Settings
22
