Digital Watchdog VMAX960H CORE - 10 Appendix: Specification

User’s Manual | 112

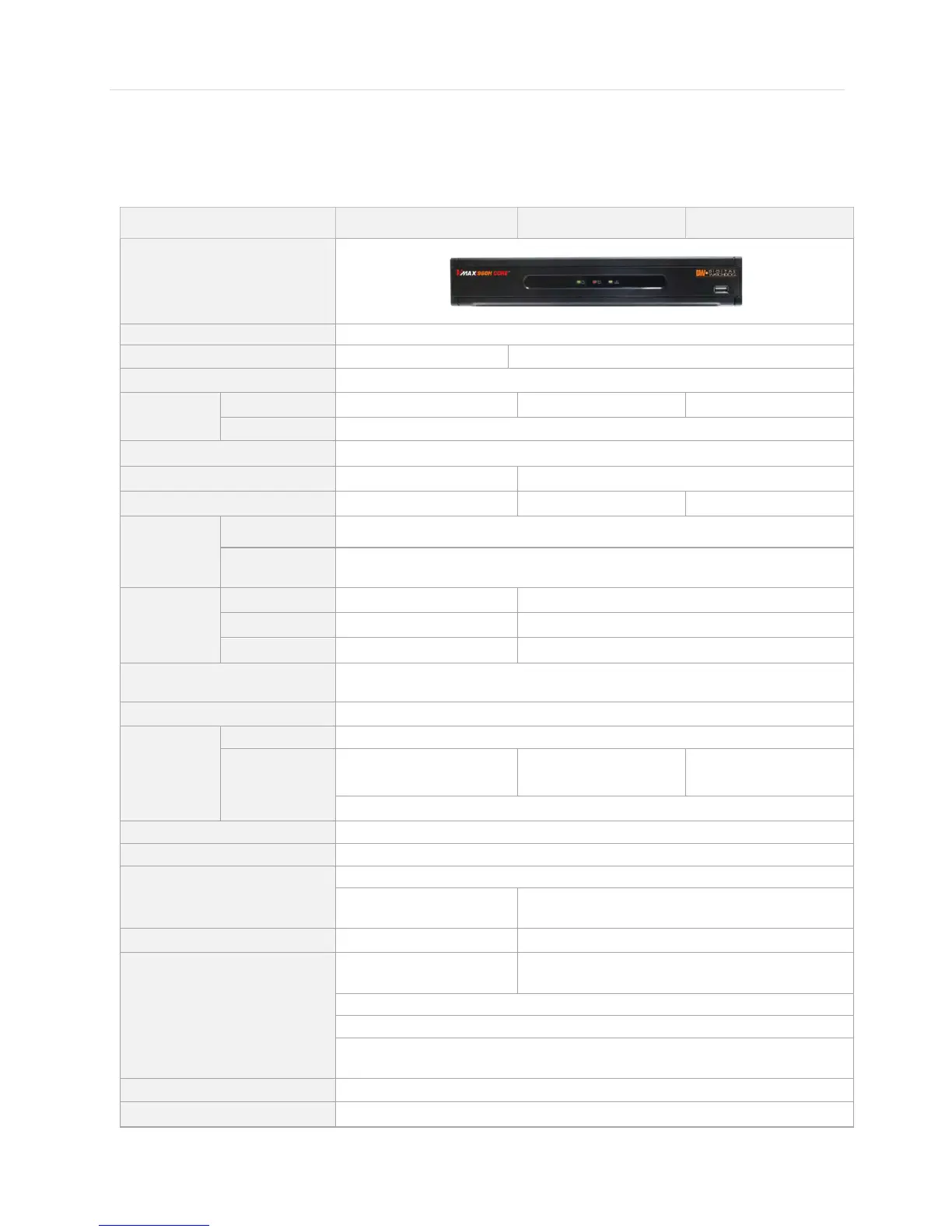

10 APPENDIX : SPECIFICATION
Model 4CH 8CH 16CH
Front Image
Compression
H.264
HDD Interface
1 x SATA 1 / II / III 2 x SATA 1 / II / III
Operation System
Embedded Linux
Video
Input
4BNC 8BNC 16BNC
Output
1 x HD Output (1080p Live Display), 1 x Composite, 1 x Analog Spot out
Video Mode
NTSC/PAL auto detection
Display Speed(NTSC/PAL)
120fps@960H 240 / 200fps@960H
Screen Split
1, 4 1, 4, 9 1, 4, 9, 16
Video
Monitor
2 x Main Monitor(HD, Composite), 1 x Analogue Spot out(Full mode)
VGA
Resolution
1080p, 720p, 1280x1024, 1024x768, 720x480 (N), 720x576 (P)
Recording
Speed
(NTSC/PAL)
480x240/288
120 / 100 fps 240 / 200 fps
960x240/288
120 / 100 fps 240 / 200 fps
960x480/576
120 / 100 fps 240 / 200 fps
Recording Resolution
NTSC: 480x240, 960x240, 960x480 /
PAL: 480x288, 960x288, 960x576
Recording Modes
Time-Lapse, Event, Pre-Event, Post-Event, Instan(Panic) Record
Play back &
Search
Speed
x1/32, x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32
Function
1, 4 CH
(Multi-Channel Playback)
1, 4, 9, 1+5, 1+7CH
(Multi-Channel
Playback)
1, 4, 9, 16, 1+5, 1+7CH
(Multi-Channel
Playback)
Date/Time, Record Table, Calendar, Event preview, Bookmark, System log
Audio Input / Output
In: 1 x RCA Jack / Out: 1 x RCA Jack
Alarm Input / Relay Output
4 x In / 1 x Relay Out
PTZ Control and Port
Virtual Joy-Stick Control on screen(by mouse)
RS 485 Port 1ea
(PTZ, Keyboard Controller)
RS 485 Port 2ea
(PTZ, Keyboard Controller)
LAN
1 x 10/100 Mbps Ethernet 1 x 10/100/1000Mbps Gigabit Ethernet
Network Transmission
120 fps@960x480(576),
120 fps@480x240(288)
240/200fps@960x480(576),
240/200fps@480x240(288)
Video Dual-Stream (Local Recording & Network Transmission)
Live monitoring, Remote Playback and File Backup (Triplex-on-Remote)
Remote & E-Mail Notification with JPEG,
Remote System Reboot by Client(CMS)
Mobile S/W
Android, iPhone, Kindlefire
Remote PTZ Control
Pan/Tilt/Zoom/Focus/Iris
