1. OUT 1 (AMP)*
Connect this output jack to your
guitar amplifier. Refer to the Flex-
ible Output Mode
TM
Setup sec-
tion for more information.
2. OUT 2 (MIXER)*
This output has been specifically
tailored for use with a full range
audio system and is designed to be
plugged directly into a mixer or
recording device for optimal per-
formance. Refer to the Flexible
Output Mode Setup section for
more information.
3. (Tip) - GAIN
Increases or decreases gain.
(Ring) - LEVEL
Increases or decreases level.
* Use only unbalanced TS instrument cables.

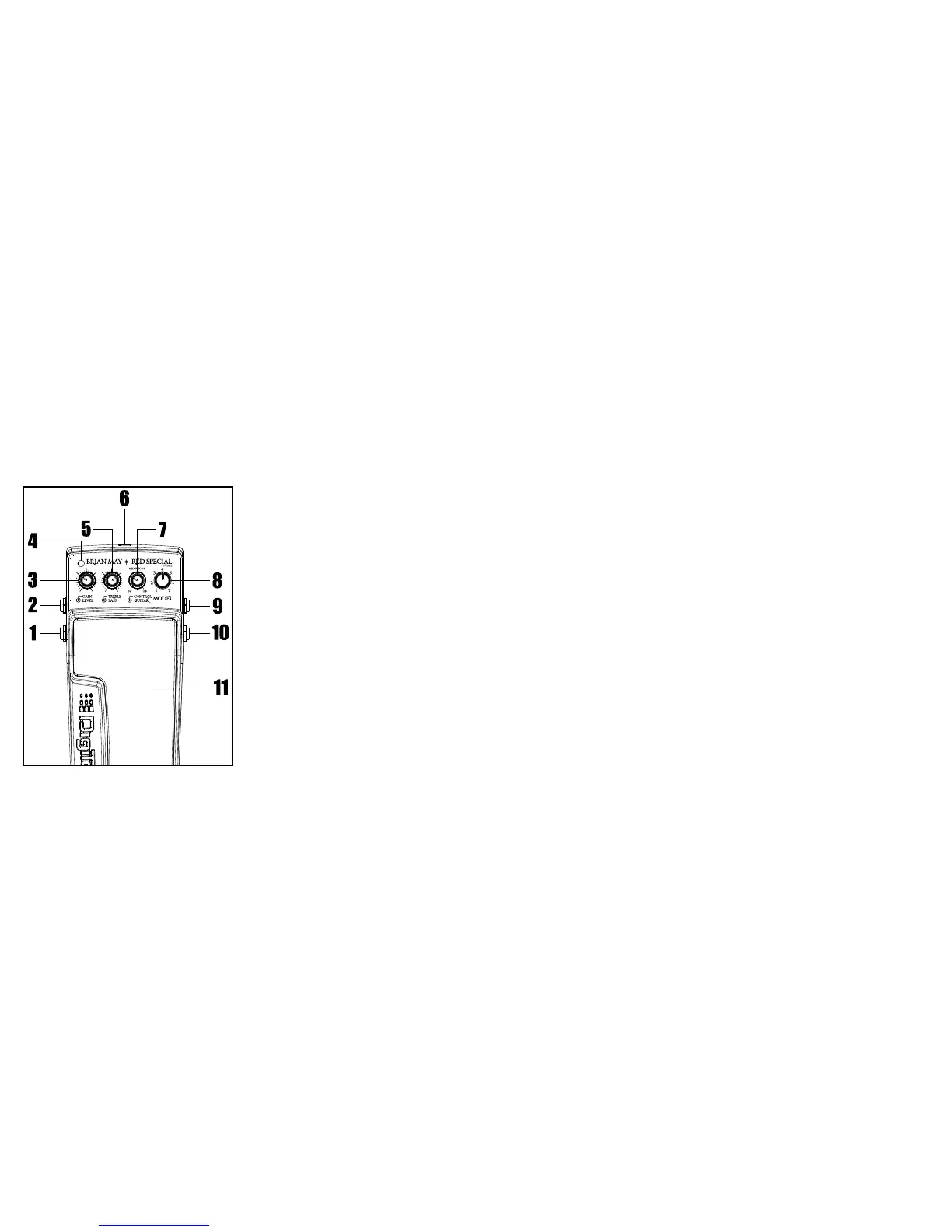

CONTROL DESCRIPTIONS
4. INDICATOR LED
This LED indicates the present
mode of the model selected:
OFF=bypass, GREEN=toe mode,
RED=heel mode. (Please refer to
the Flexible Output Mode
TM
,
and Calibrating the Expression
Pedal sections for more informa-
tion.)
5. (Tip) - TREBLE
Increases or decreases treble.
(Ring) - BASS
Increases or decreases bass.
6. POWER SUPPLY JACK
Connect only the included PS0913B
(9V AC) power supply to this jack.
Note that the Red Special Pedal is
not equipped for battery power.
7. (Tip) - CONTROL
Model dependent. Refer to the
Model Control table for more
information.
(Ring) - GUITAR
Transforms your guitar tone to
sound more like Brian’s, using guitar
modeling technology.
SC - Select this setting if you’re
using a single coil pickup(s), typical
of a Stratocaster
TM
* guitar
Red Special - Select this setting
if you’re playing a Red Special
replica (or using Burns
TM
* Tri-
Sonic
TM
* pickups).
HB - Select this setting if you’re
using a humbucker pickup(s), typi-
cal of a Les Paul
TM
* guitar.
8. MODEL
This knob selects one of the seven
different Models:
1. Keep Yourself Alive
2. Bohemian Rhapsody
3. Tie Your Mother Down
