1.5. Functional Check

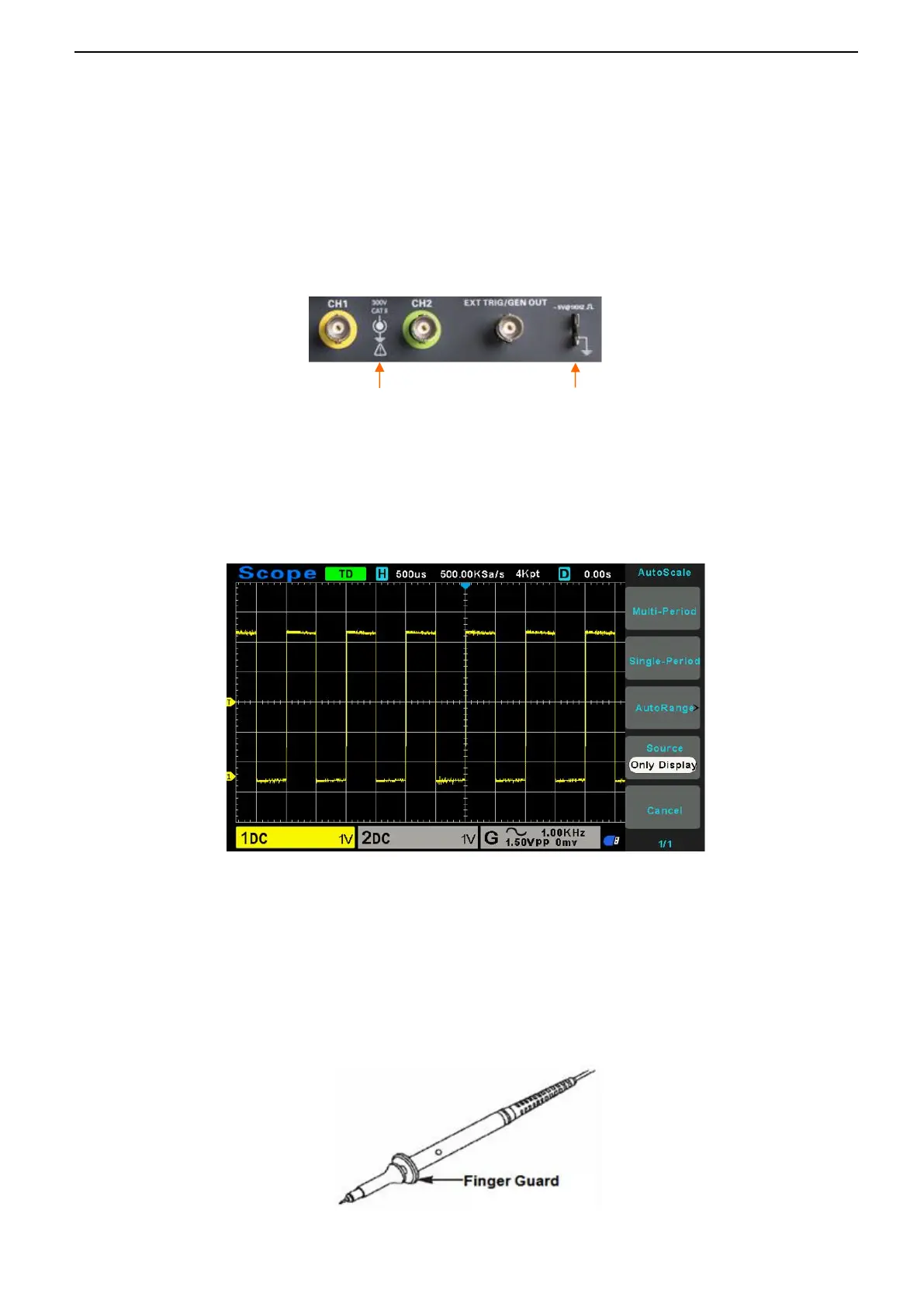

Follow the steps below to perform a quick functional check to your oscilloscope.
1.5.1. Connect the oscilloscope
Set the switch on the probe to X 10 and connect the probe to Channel 1 on the oscilloscope. First, align the slot in the probe
connector with the protuberance on the CH1 BNC and push to connect; then, turn to right to lock the probe in place; after that,
connect the probe tip and reference lead to the PROBE COMP connectors. There is a mark on the panel: ~5V@1KHz.
CH1: To connect with probe
1.5.2. Observe the waveform
Press the [Auto Set] button and you should see within a few seconds a square wave of about 5V peak-to-peak at 1KHz in the
display.
1.6. Probe Introduction
1.6.1. Safety
When using the probe, keep your fingers behind the guard on the probe body to avoid electric shock. Do not touch metallic
portions of the probe head while it is connected to a voltage source. Connect the probe to the oscilloscope and connect the
ground terminal to ground before you start any measurements.
