Block Diagrams

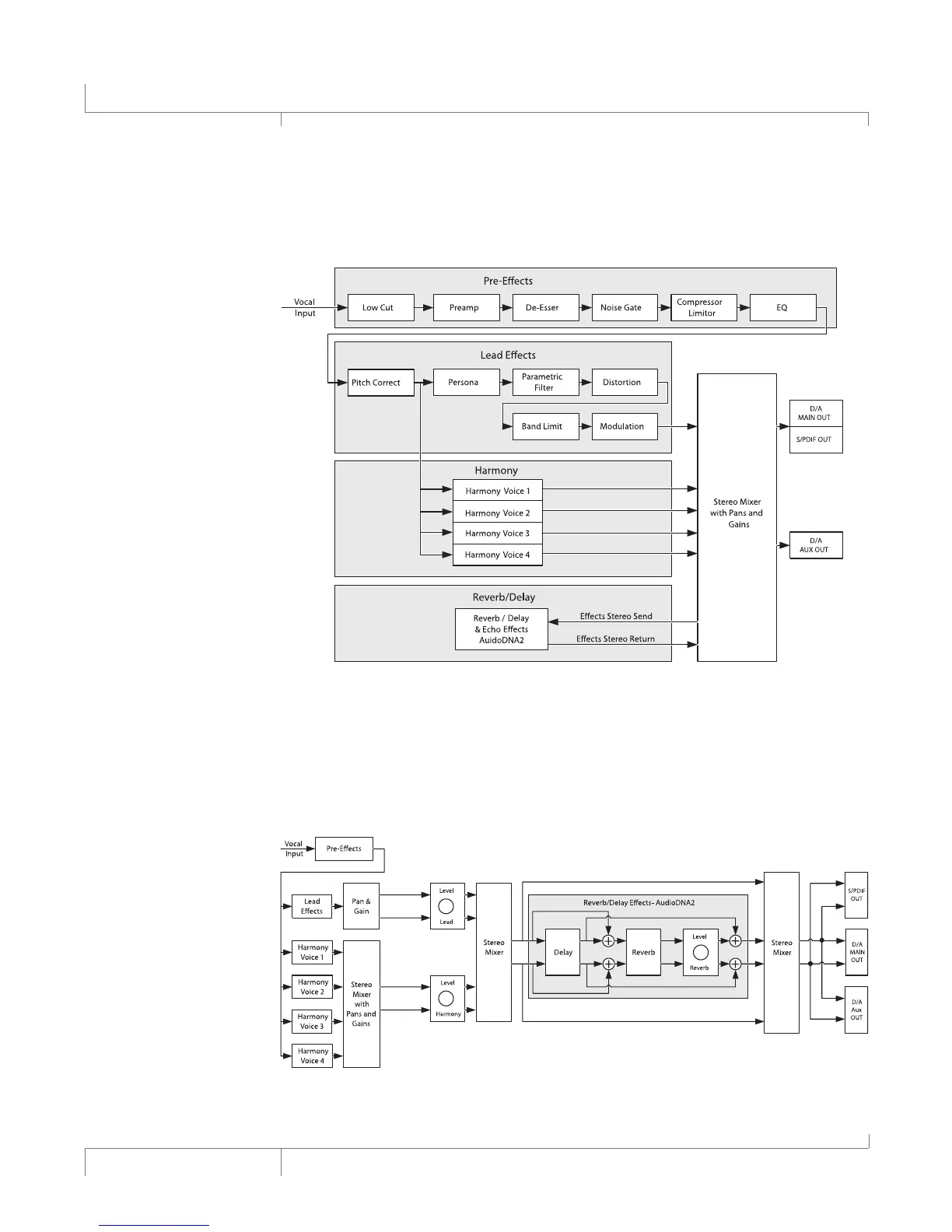

Effects Flow
Normal Output Mode Signal Flow
Note that in Aux=Main Output Mode the front panel Levels knobs adjust the Main Out, S/PDIF Out and Aux Out
mixes.
