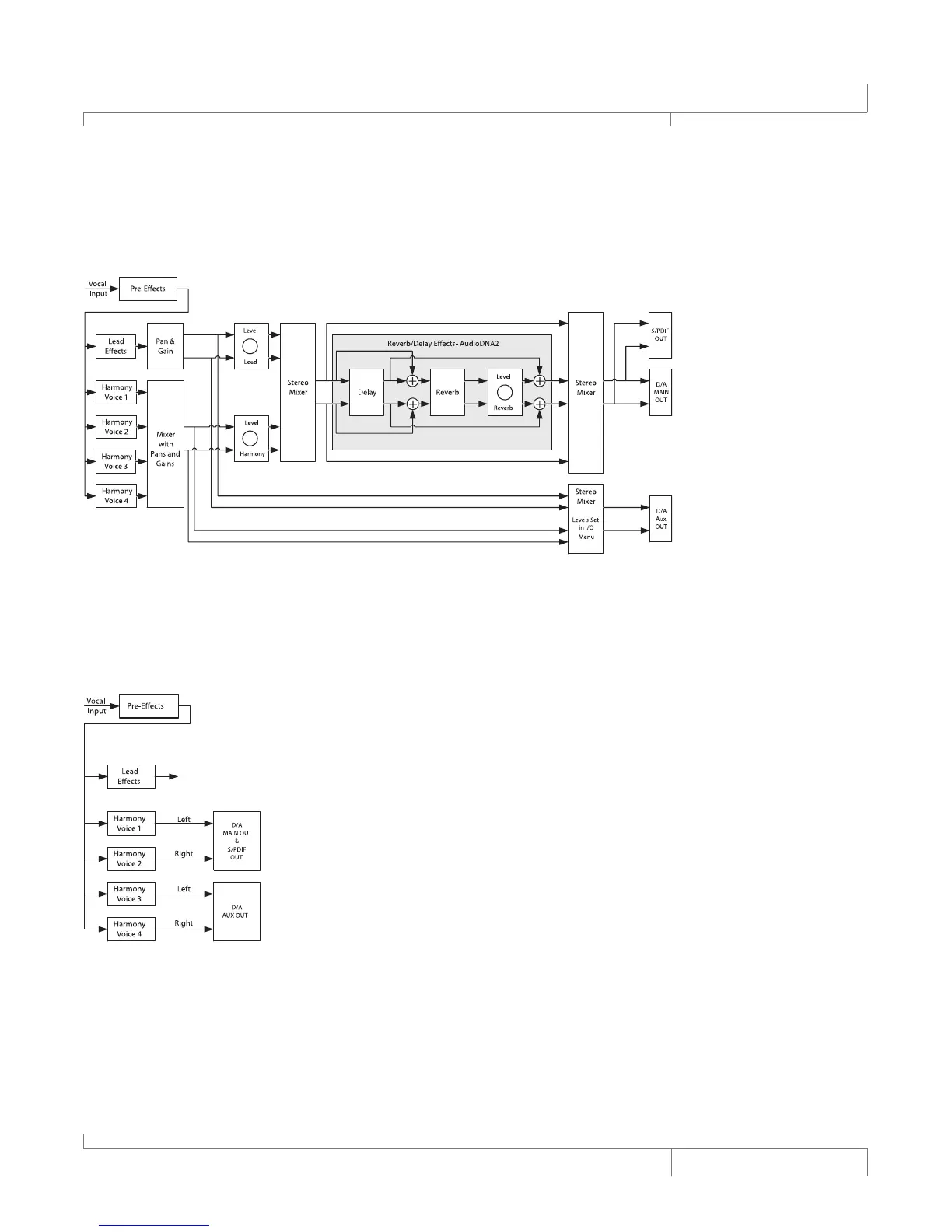

Separate Output Mode Signal Flow
V1+V2 V3+V4 Output Mode Signal Flow
Note that in Main, Aux Separate Output Mode the front panel Levels knobs adjust only the Main Out and S/PDIF
Out mixes and relative Lead and Harmony Levels for the Aux Out mix can be set in the Global I/O Setup menu.
Block Diagrams
