DigiTech Whammy DT User Manual

Page 9

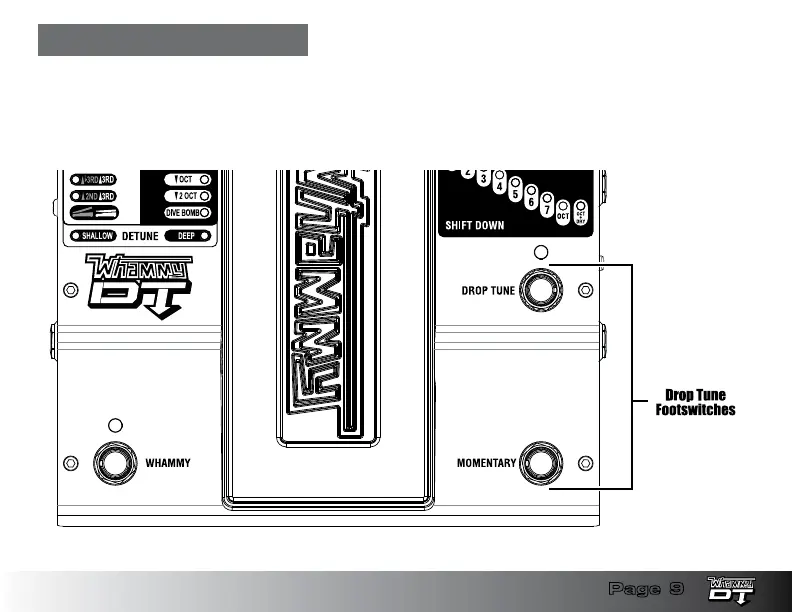

Drop Tune Footswitches
There are two footswitches below the Drop Tune effect section. The DROP TUNE footswitch is
used to turn the Drop Tune effect on and off as indicated by the LED above this footswitch. The
MOMENTARY footswitch is used to momentarily enable or bypass the effect when pressed. This
is designed to create hammer-on and pull-off style effects with chords shifting from a transposed
tuning to normal tuning.

DigiTech Whammy DT Specifications

General

Bypass Switching	True Bypass
Technology	Digital
Expression Pedal	Built-in
Whammy Effects	Yes
Detune Effects	Yes
Harmonizer Effects	Yes
Effect Type	Pitch Shifter
Inputs	1 x 1/4"
Outputs	1 x 1/4"
Power Source	9V DC
Features	Drop Tune, Momentary Switch
Pitch Shifting Range	+/- 2 Octaves
