CONNECTOR OVERVIEW
-4-

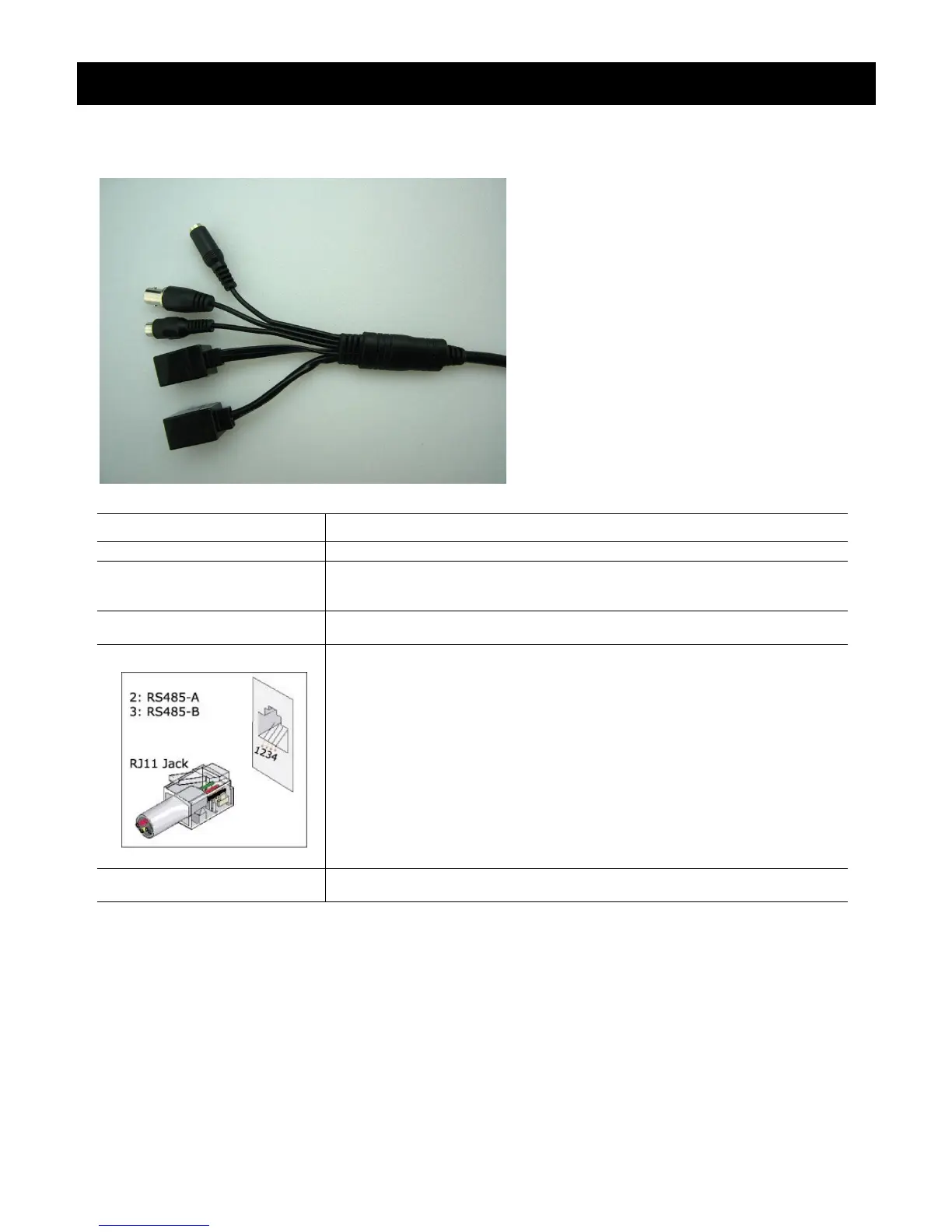

2. CONNECTOR OVERVIEW
2.1 CONNECTOR OVERVIEW
CONNECTOR DESCRIPTION
Power Connector Connect the DC 12V adapter for power supply.
Video Output Connector Connect to the video input connector of your monitor with a video cable (i.e. a RCA line with the
BNC connector, or a coaxial line) for video output.
* The video cable is not included with the sales package.
Audio Input Connector Support the connection to an audio device, such as a microphone, for voice transmission of the
local side.
RJ11 Connector Get a RJ11 line with the proper length to your connection.
Different RJ11 line may have different line layout, so the connection might be different. If you
cannot control the PTZ network camera after connection, please reverse the RJ11 line layout
and
try again.
RJ45 Jack Connector Get a R45 network cable with the proper length to your connection. And connect the network
camera to the network.
