ENGLISH

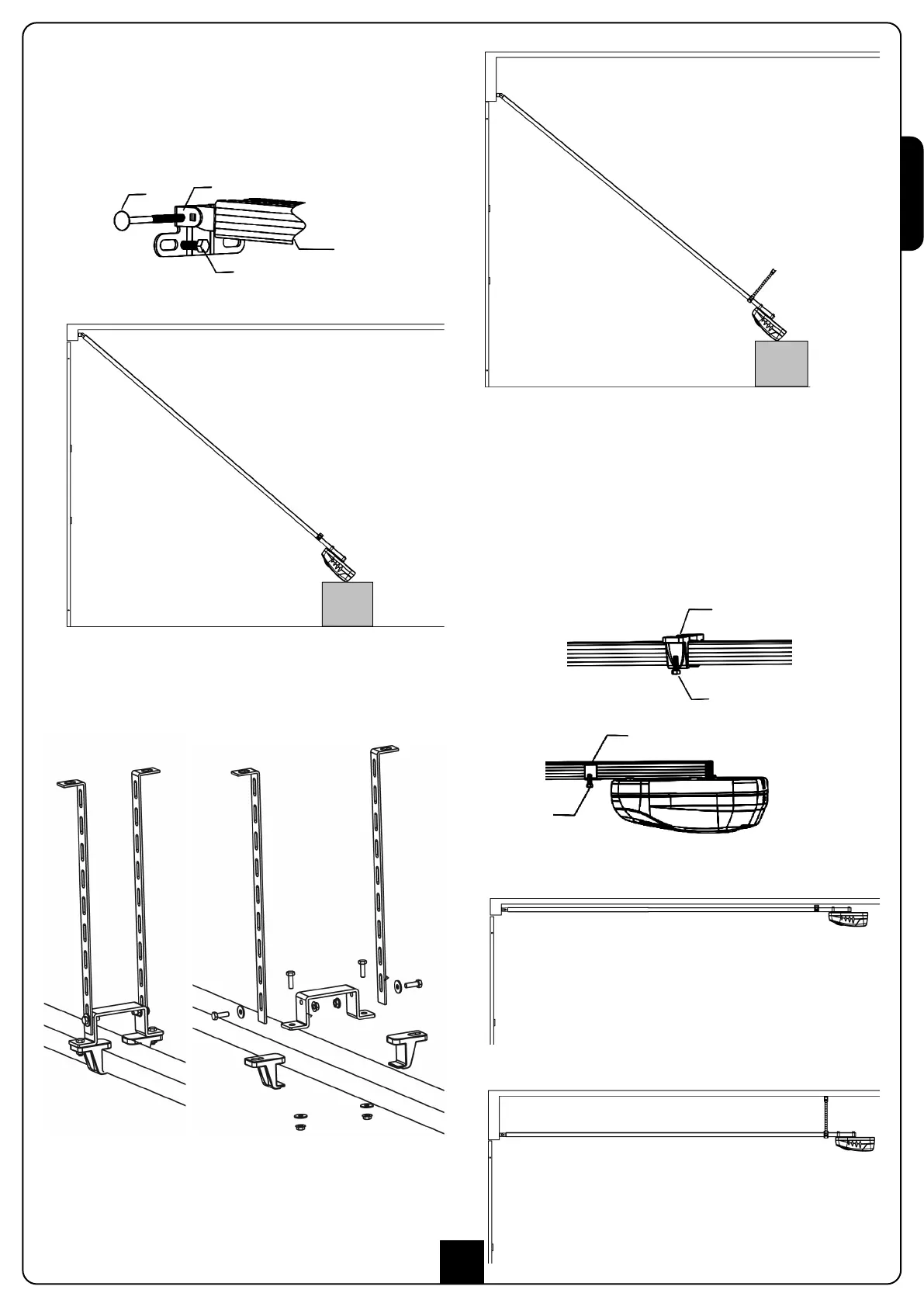

2.3 Fasten the bracket to the upper crossbeam of the door
using plugs suitable for the type of wall (ø minimum 8 mm).
2.4 Hook the section bar on the bracket using the 6 x 80 ball
stud provided with its self-locking nut.
In cases requiring the use of the extensions (kit p/n 163203),
assemble the extensions according to the figure provided using
the screws, nuts and washers contained in the kit.
2.5 Using the reference markings made on the ceiling, identify
the points for fastening the plastic brackets and for the
omega bracket. Drill holes, and using plugs suitable for the
type of ceiling (ø minimum 8 mm) fasten the actuator.
CAUTION: Respect the dimensions indicated in the
paragraph LIMITS FOR USE on page 10.
IT IS PROHIBITED to hang objects of weights on the section
bar or on the motor.
Section Bar
Plug
Screws 6x80 Bracket
Omega Bracket
Plug Screw
Plastic Bracket
Plug Screw
13
