3.3.4 Limit stop adjustment
Magnetic limit stop –

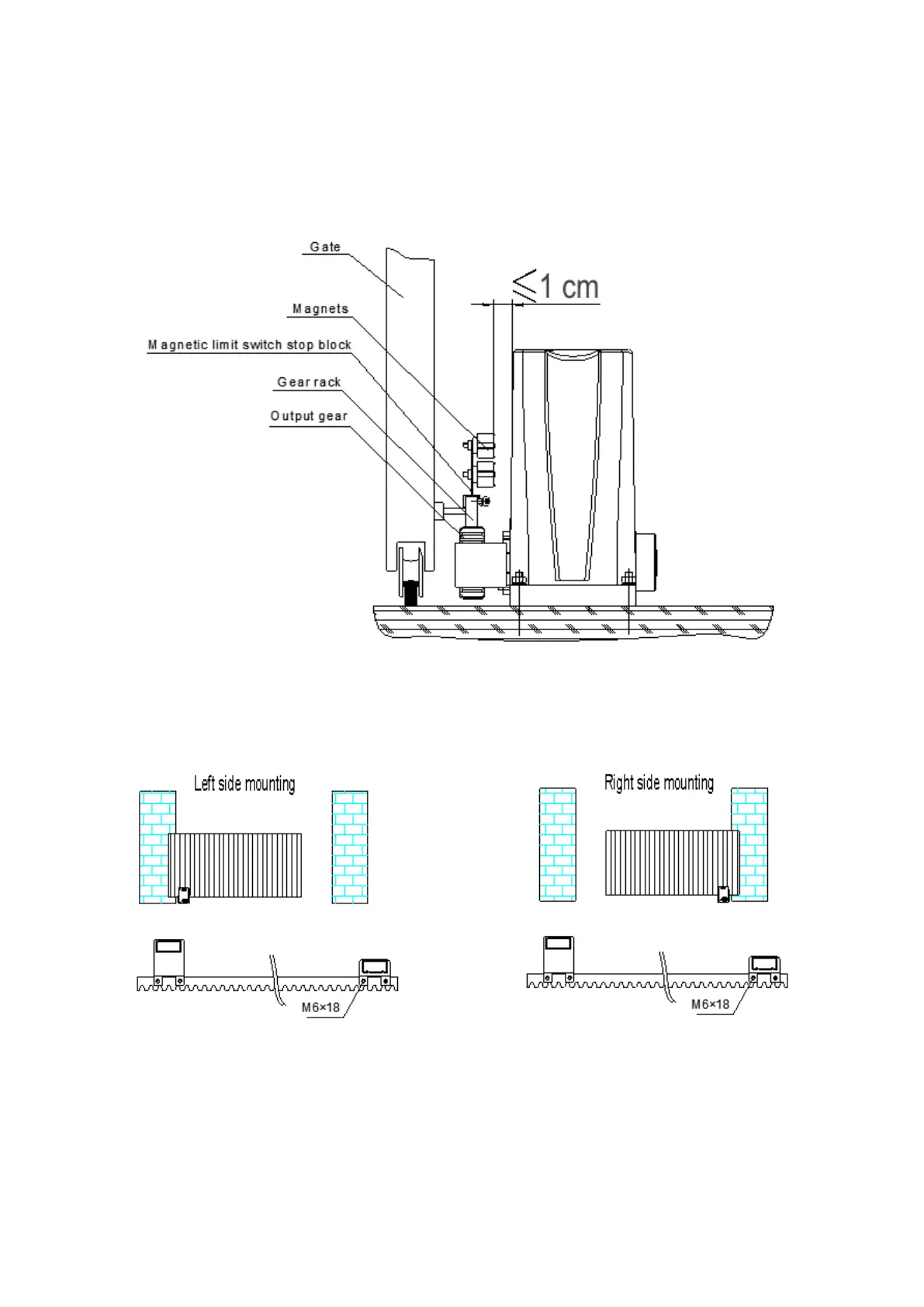

The installation position of magnetic limit stop is shown in Figure 8:
Figure 8
The installation of magnetic limit stop is shown in Figure 9:
Figure 9
Note: The default setting is right side mounting. (According to actual situation,
please refer to the “Note” of section 4.3.5 “Adjustment and operation” to adjust.)
