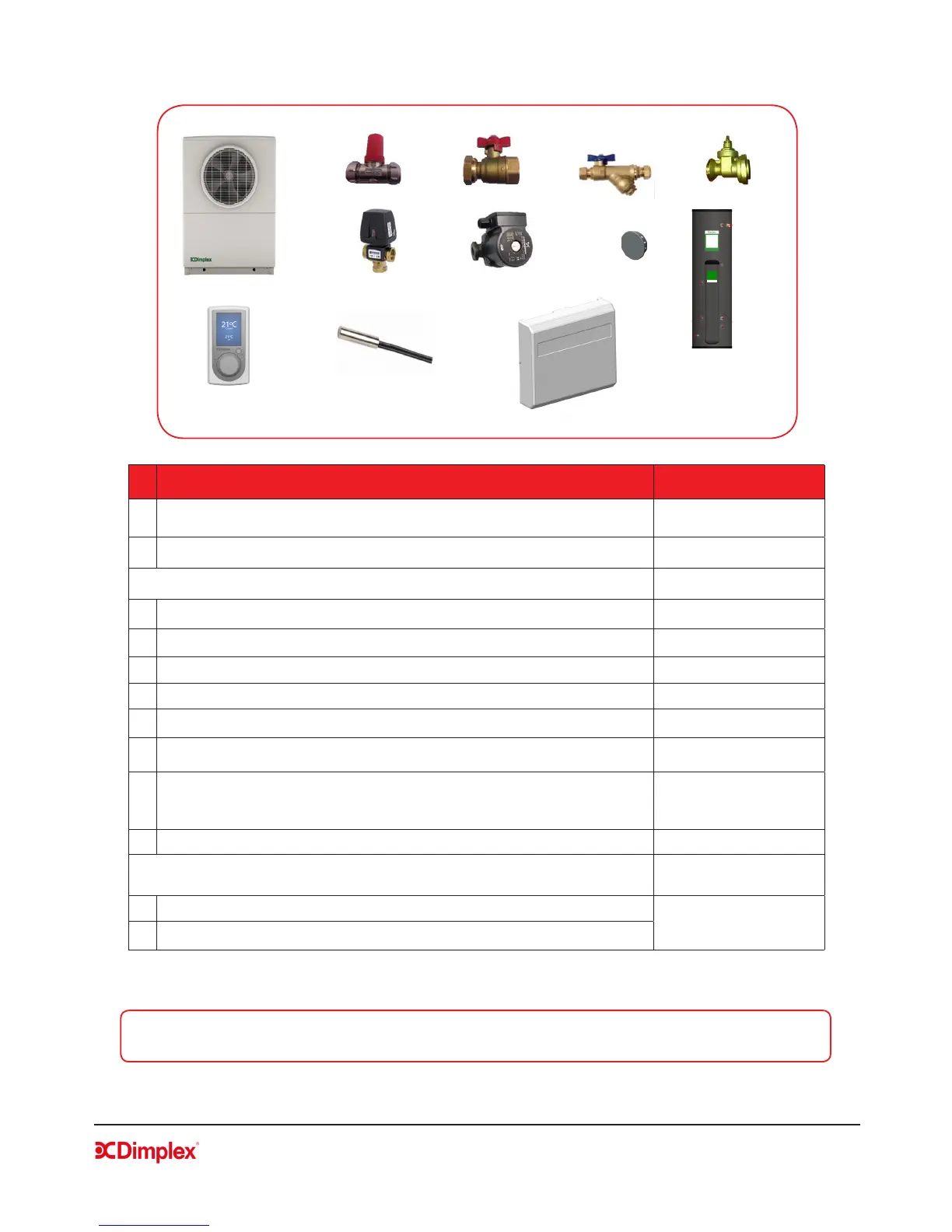

1.7.2 Installation pack 2 - Space heating and Dimplex standard cylinder
NOTE: Cylinder required for pack 2 installation; please see Dimplex EC-EAU cylinder manual for range of
non A-Class cylinders.
No. Description Part No.
1 A-Class heat pump A8M / A12M / A16M
10 Blanking plugs (x4, stored inside heat pump) 4592624105
Hydraulics Kit A ACCHYPK
2 User interface (UI) 1754600
3 ERES spring loaded by-pass valve (22mm comp. tting) 1755780
4 3-port diverting valve (28mm comp. ttings) 1755750
5 Pump - UPM GEO 25-85 180 (1500mm cable) 1755740
6 Isolation valves (1” swivel BSP to 28mm comp.) - Flow 1755760
7 Isolation valves (1” swivel BSP to 28mm comp.) - Return with strainer 1755770
12
2 x Circulation Pump Gate Valve 11/2” swivel to 28mm comp
2 x Washer 30.1x21x2mm
1756090
8 Dimplex standard cylinder
Wiring centre module, which includes;
9 Wiring centre module
049162
11 1 x Temperature probe (NTC10) for DHW
q
w
e
r t
y u
i
o
a
d
s
