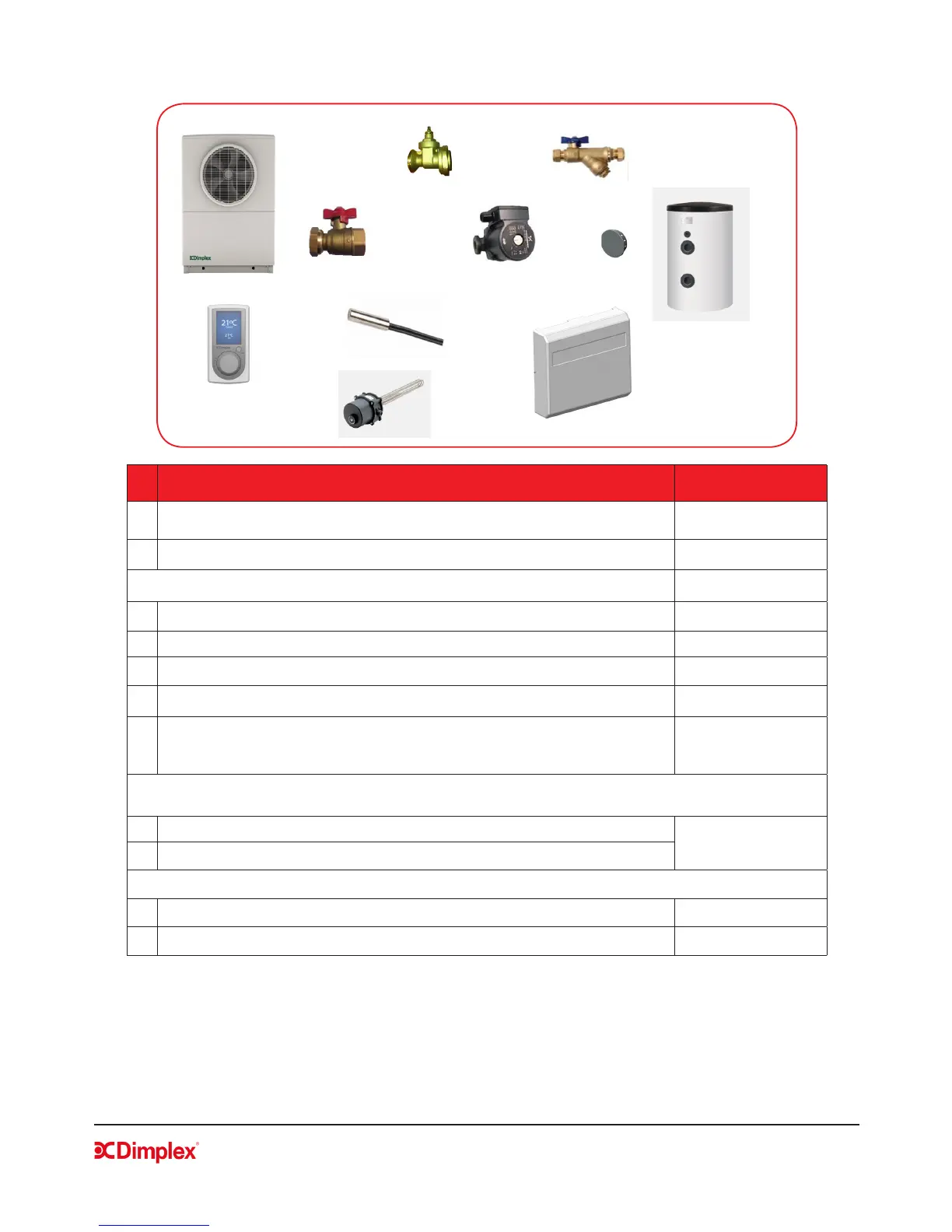

1.7.3 Installation pack 3 - Space heating only
q
w
r
t
y
u
o
a
s
i
No. Description Part No.
1 A-Class heat pump A8M / A12M / A16M
10 Blanking plugs (x4, stored inside heat pump) 4592624105
Hydraulics Kit B ACCHYPK
2 User interface (UI) 1754600
5 Pump - UPM GEO 25-85 180 (1500mm cable) 1755740
6 Isolation valves (1” swivel BSP to 28mm comp.) - Flow 1755760
7 Isolation valves (1” swivel BSP to 28mm comp.) - Return with strainer 1755770
4
2 x Circulation Pump Gate Valve 11/2” swivel to 28mm comp
2 x Washer 30.1x21x2mm
1756090
Wiring centre module, which includes;
9 Wiring centre module
049162
11 1 x Temperature probe (NTC10) for DHW
Accessories
8 100L / 200L / 300L buffer tank (depending on installation) 025586
3 2kW buffer immersion element 363610
