Dimplex BF33ST/DX - Page 22

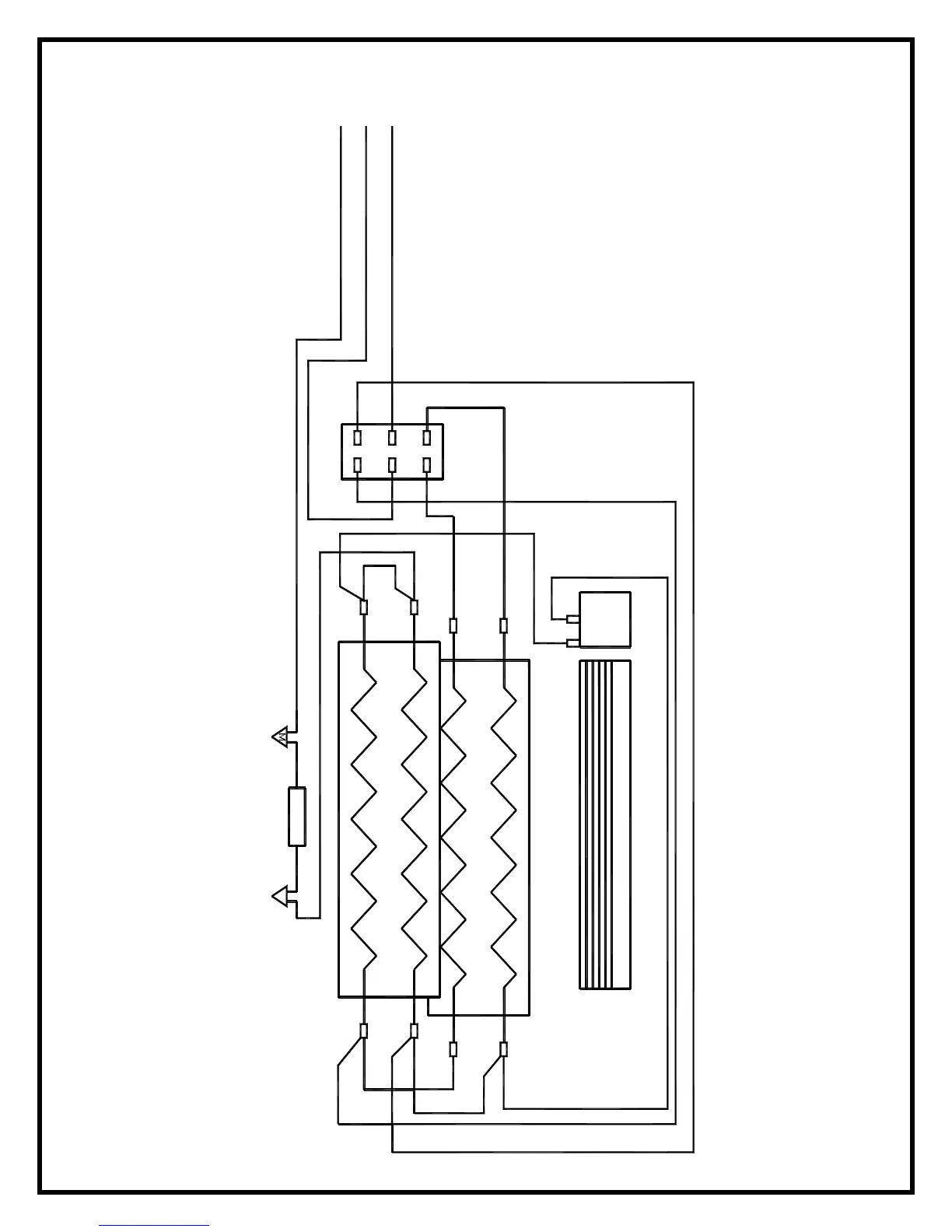

WIRING DIAGRAM
UPPER SECTION
20
CUT-OUT
M
ELEMENT #2
ELEMENT #1
2
6
4
1 5
3
BLOWER WHEEL
BLW. MOTOR
BROWN ORANGE
RED (CUT-OUT LONG WIRE)
BLK
YLW
BLK
BLK
YLW
BLK
BLK
BLK
YLW
RED (CUT-OUT SHORT WIRE)
