HEATER WALL SWITCH WIRING
NOTE:
Wiring of the wall switch must be completed prior to installing the unit.
NOTE:
When using a wall switch ensure that the switch has a rating of 20 amps.
NOTE:
Only install a wall switch on units that do not have a remote control.
120 / 240VOLT INSTALLATIONS

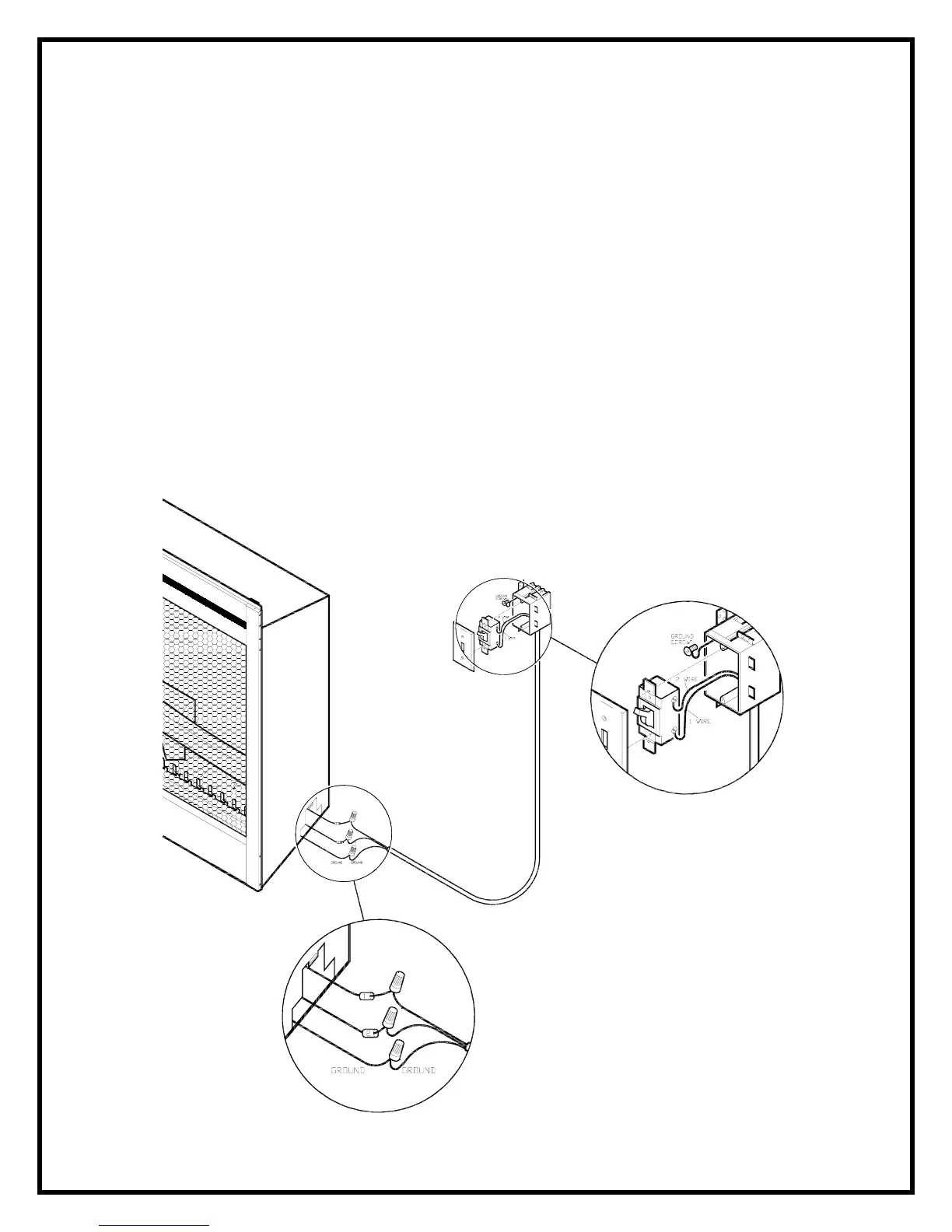

The wall mounted switch is connected to the fireplace by running a 2 conductor wire with a ground from the junction
box on the back of the unit to the thermostat.
1. Locate the switch on the top corner of the unit and ensure that the power conversion switch is in the proper
position for the required supply voltage.
2. Loosen the screw securing the junction box and remove the cover. Pull out the wire nut that contains wires
marked 1 & 2.
3. Remove the wire nut and separate the wires marked 1 & 2.
4. Connect one of the wires from the wall switch to the wire marked 1 and the other wire to the wire marked 2.
5. Connect the ground wire from the wall switch to the ground wire grouping from the power supply.
6. Ensure that all connections are tight. Insert all the wiring into the unit and secure with a cable clamp.
