7
BF5000NT, BF5000, EF2604, SF2603, DF2603

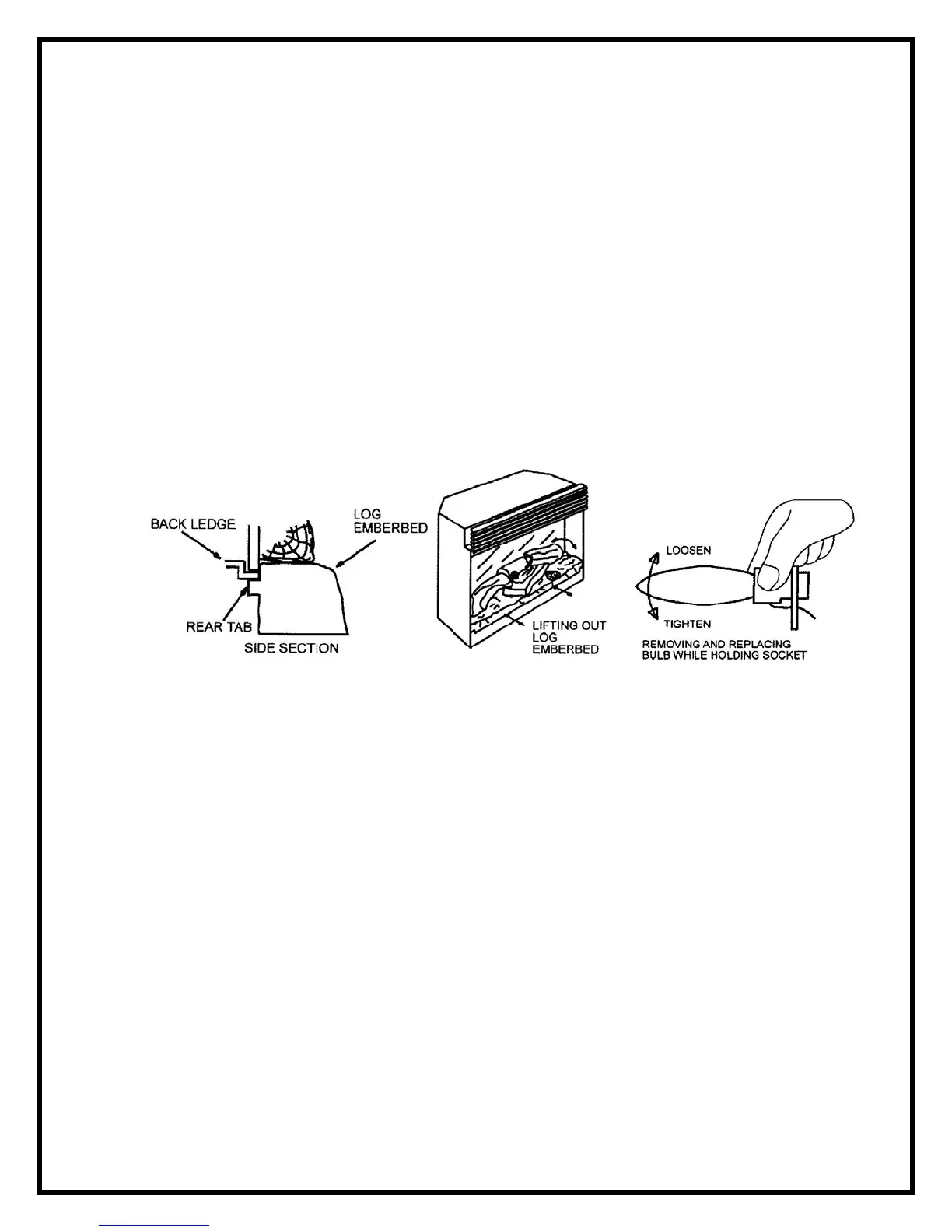

LOWER BULB REPLACEMENT
1. Remove the trim by pulling straight forward.
2. Hold the glass in place while removing the retaining clip from the upper center of the
firebox.
3. Lift glass out and store in a safe place.
4. Lift up the front edge of the log until it clears the front tabs. Pull out until the rear tab
clears the back ledge, and then lift out.
5. Examine the bulbs to determine which bulb(s) require(s) replacement.
6. Hold the socket while unscrewing the bulb.
7. Hold the socket while screwing in the new bulb.
8. Replace the log ember bed by placing the back lip of the log ember bed under the
mirror then push the front of the log ember bed down into the recess.
9. Reassemble in the reverse order.
LOWER LIGHT BULB REQUIREMENTS
Quantity of 4 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60
watt rating.
