Dimplex DF2426 Service Manual

5

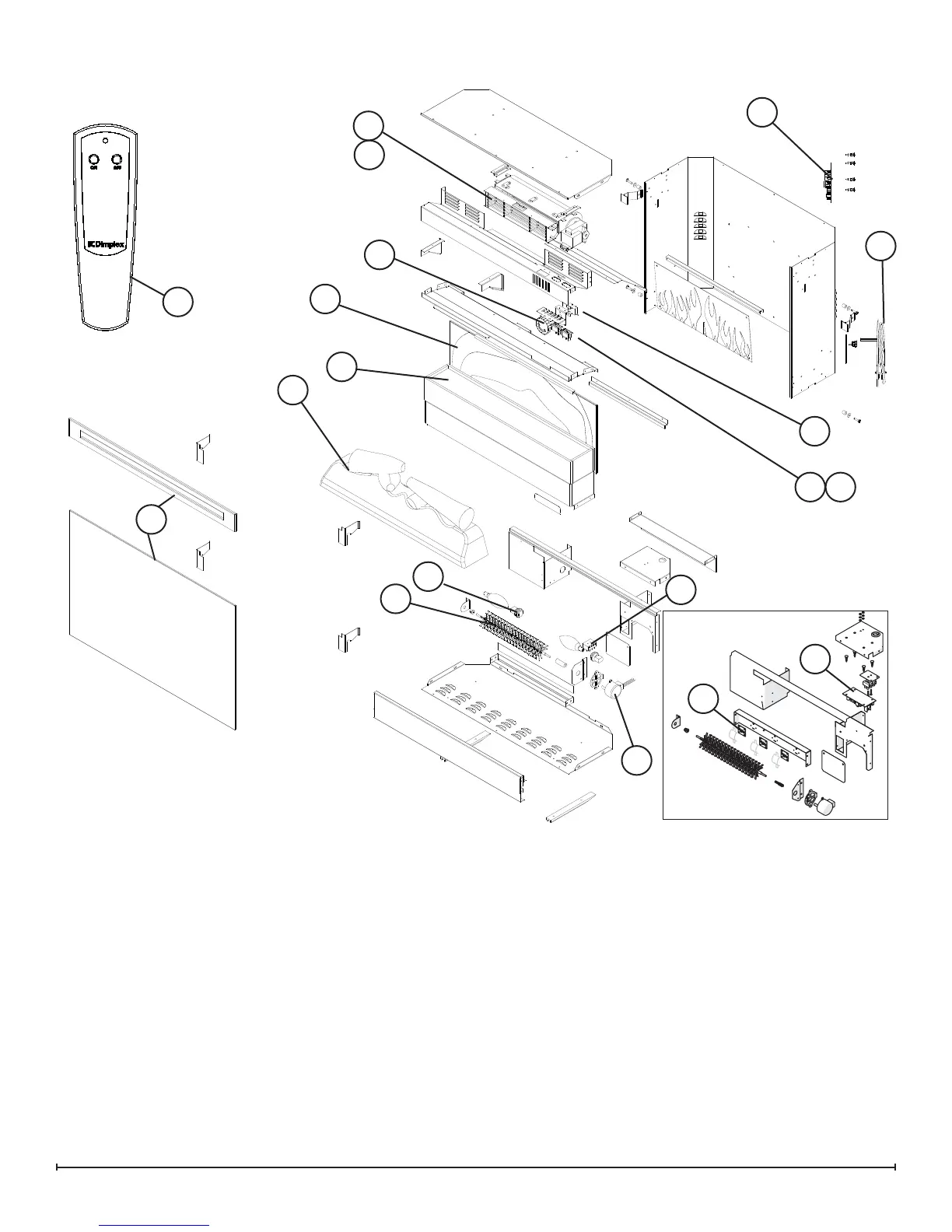

EXPLODED PARTS DIAGRAM: DF2426, DF2550, DFG2562, 6905050100-500
1. Remote Control ...................3000370500RP
2. Flicker Motor .....................2000210200RP
3. Heater Assembly (with cutout). . . . . . . . 2200491100RP
4. Thermostat ......................2300150100RP
5. Cutout ..........................2300270100RP
6. Light Assembly
Mod 0-A: 2 Socket Light Harness .....2500400500RP
Mod B: LED Light Assembly .........9600810100RP
7. Heater Switch ....................2800070700RP
8. 3-Position Switch. . . . . . . . . . . . . . . . . . 2800071100RP
9. Remote Control Receiver ...........3000380200RP
10. Terminal Block . . . . . . . . . . . . . . . . . . . . 4000150100RP
11. Power Cord . . . . . . . . . . . . . . . . . . . . . . 4100040900RP
12. Flicker Rod ...................... 5901110100RP
13. Partially Reective Glass - DF2426. . . . 5901410100RP
DF2550/DFG2562 ..........5901410200RP
14. Control Knob . . . . . . . . . . . . . . . . . . . . . 8801080100RP
15. DF2426SS Stainless Steel Trim Assembly
(comes with Front Glass) ...........1020230280RP
DF2426GB Gloss Black Trim Assembly
(comes with Front Glass) ...........1020230104RP
DF2550/DFG2562 Flat Black Trim Assembly
(comes with Front Glass) ...........1020230359RP
6905050400/6905050500 Silver Trim Assembly
(comes with Front Glass) ...........1020230478RP
16. DF2426/DF2550 Log Set Assembly ...0439970100RP
6905050400/0500 Tray . . . . . . . . . . . . . 0440400100RP
Glass Media .....................1400070100RP
17. LED Driver Board .................3001170100RP
OEM Accessory
River Rocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DFS1314
6
16
2
3
4
5
9
10
8
7
13
14
12
15
11
1
16
Mod B
6
17
MOD 0-A
