6 www.dimplex.com

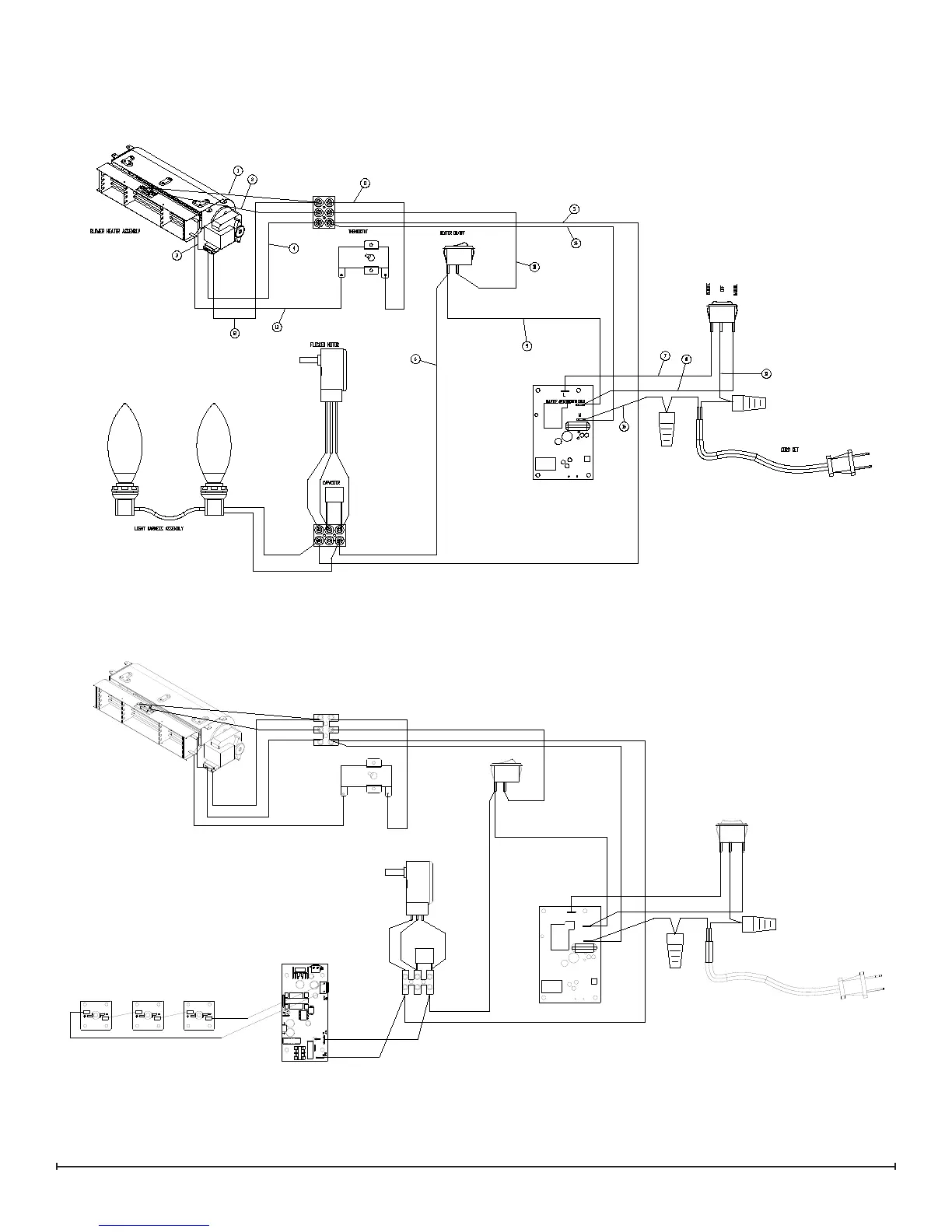

WIRING DIAGRAM: DF2426, DF2550, DFG2562, 6905050100-500
MOD 0-A
MOD B
LED DRIVER BOARD
MANUAL
CAPACITOR
HEATER ON/OFF
CORD SET
ON/OFF REMOTE
BLOWER HEATER ASSEMBLY
FLICKER MOTOR
THERMOSTAT
OFF
REMOTE
N
SWITCH OUPUT
L
LED LIGHT HARNESS
