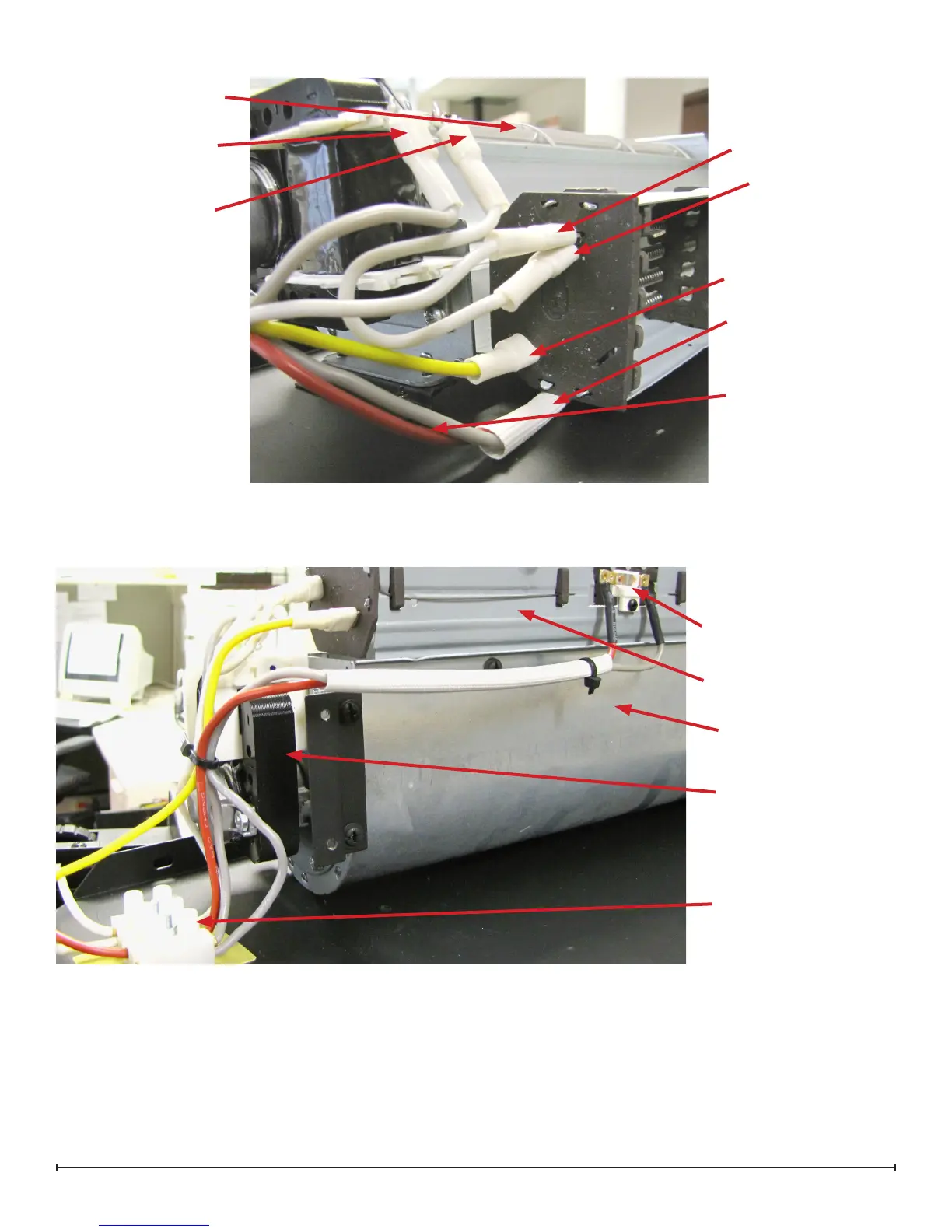

HEATER ASSEMBLY CONNECTIONS
HEATER ASSEMBLY CONNECTIONS WITH HIGH TEMPERATURE CUTOUT
View of Heater Assembly removed from the top panel
Blower
Connects to Terminal
Block
Jumper to “Piggy Back”
connection on lower
prong of element
White - Connects to
Terminal Block
White - Jumper to
Blower Motor
Yellow - Connects to
Thermostat
Grey - Connects to High
Temperature Cutout on
Terminal Block
Red - From the high
temperature cutout to
the terminal block.
High Temperature Cutout
Element Housing
Blower Housing
Blower Motor
Upper Panel Terminal
Block
