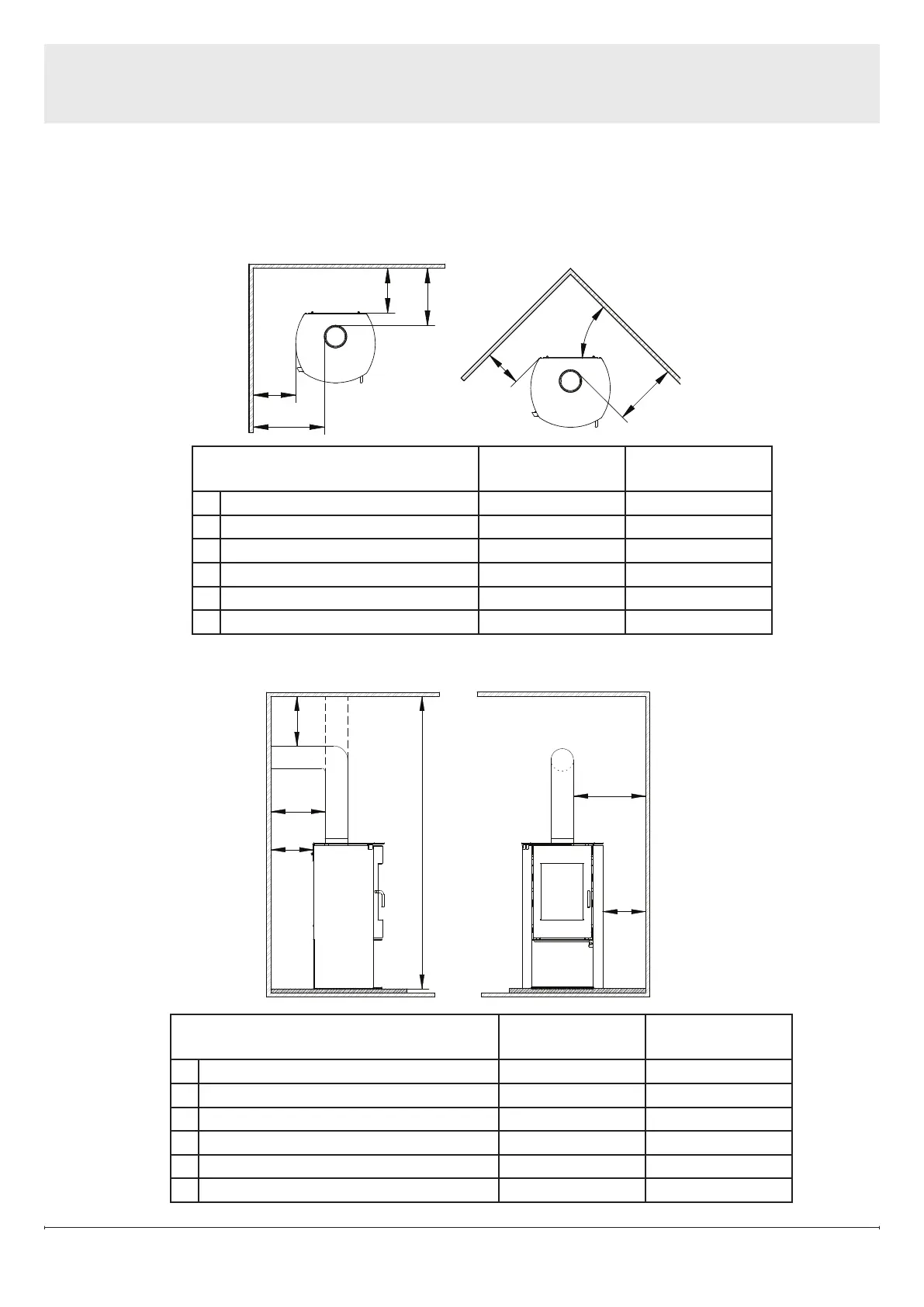

Dimplex Nectre n65 - Clearances to Combustible Material; Back Wall Exit Configuration

9
A
B
F
D
C
E
45º
Minimum Clearance
Single Wall
Connector
Double Wall
Connector
A Back wall to stove rear 13" (330 mm) 10" (254 mm)
B Back Wall to connector pipe 16.5" (419 mm) 13" (330 mm)
C Side wall to stove side 12" (305 mm) 12" (305 mm)
D Side Wall to connector pipe 20.5" (521 mm) 20" (508 mm)
E Corner wall to stove corner 10.5" (267 mm) 6" (153 mm)
F Corner wall to connector pipe 18.5" (470 mm) 13.5" (343 mm)
Clearances to Combustible Material
The minimum clearances shown in the table below have been determined by tests according to

Back Wall Exit Conguration
A
B
D
G
H
C
Hor.
Ver.
Minimum Clearance
Single Wall
Connector
Double Wall
Connector
A Back wall to stove rear 17" (432 mm) 10" (254 mm)
B Back Wall to connector pipe 20.5" (521 mm) 13" (330 mm)
C Side wall to stove side 12" (305 mm) 12" (305 mm)
D Side Wall to connector pipe 20.5" (521 mm) 20" (508 mm)
G Ceiling to horizontal connector pipe 18" (457 mm) 16" (407 mm)
H  82" (2083 mm) 82" (2083 mm)
Installation
Figure 3
Figure 4
