23
Replacing the Firebricks
replaced soon after.
1. Remove all ash.
2. Raise the brick retainer so that the bricks can be removed.
3. Replace with new bricks, refractory bricks in the
brick retainer.
Replacing the Brick Retainer
Over time the original brick retainer may burn out, in which
case it can be replaced with a new one.
To replace the brick retainer:
1.
Remove the old retainer.
2.
locking them into position.
Replacing the Door Glass
This task may be easier with the door removed from the
replacing the glass, the glass gasket should also be replaced to make sure it is properly sealed.
To remove the door:
1. With the Allen key supplied, remove the top air control handle from the air slide.
2. Open the door 90°.
3. With one hand on top of the door and the other supporting it underneath, raise it on the hinge pin
until the top door hinge clears the top of the hinge pin.
4. Lower the door until the lower door hinge clears the bottom of the pin.
To replace the door glass:
1.
the top and two at the bottom.
2. Using the 4 mm Allen key supplied with the stove, remove the four screws and the glass retainer.
3. Remove the glass and the old door seal rope.
4. The new glass will have been supplied with a length of grey door seal with adhesive strip on one
side. Remove the wax paper backing from the adhesive and stick the door seal along the 5 mm
glass. Do this around the external edge of the glass plate.
5.
and fasten with the four M6 screws.
!
NOTE:
stove gets hot and the door expands.

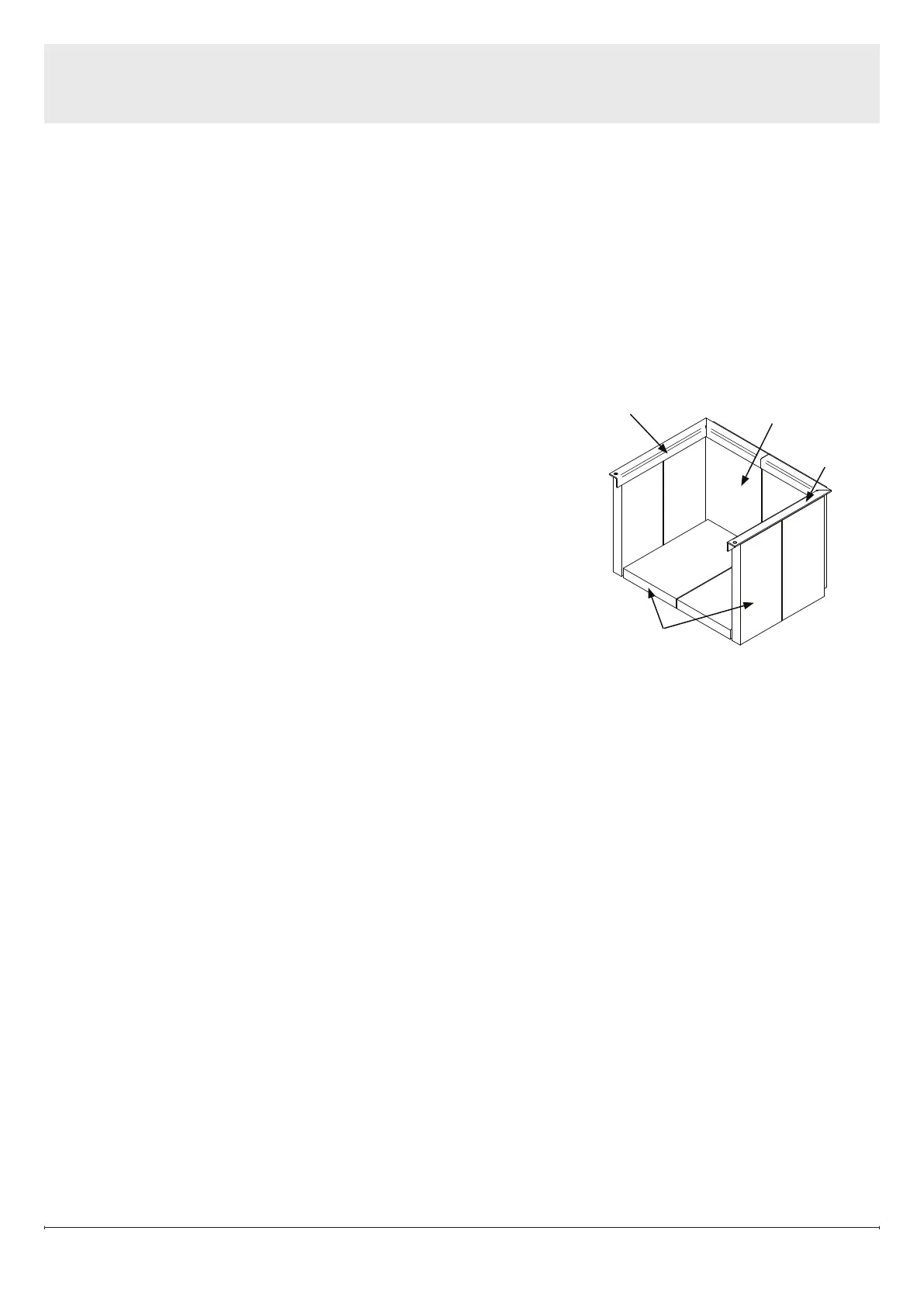

LH Brick
Retainer
Refractory Brick
RH Brick
Retainer
Service
Figure 16
