Installation

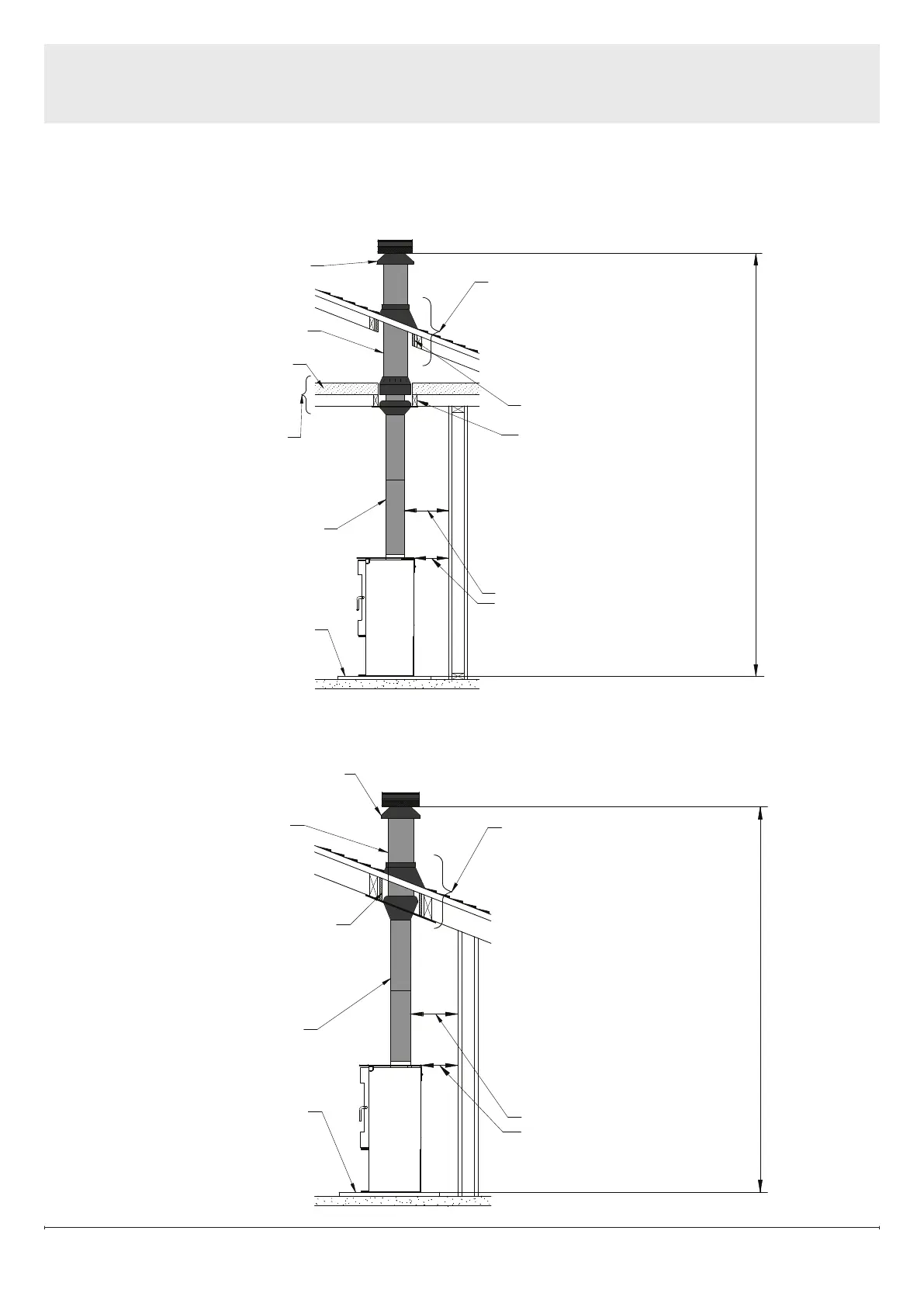

Figure 8
Standard Ceiling with a Factory-Built Chimney
Figure 9
Cathedral Ceiling with a Factory-Built Chimney
Refer to Chimney Termination
& Height section for details
on chimney cap.
Refer to Chimney Termination
& Height section for details
on chimney cap.
Chimney sections
Chimney sections
Chimney insulation
Refer to chimney manufacturer's
instructions and clearance
A ceiling support is required. An
attic insulation shield is required
where insulation is present.
Refer to chimney manufacturer's
instructions for minimum air space
to combustibles.
Chimney connector sections
Chimney connector sections
Refer to Floor Protector section
for the required dimensions of the
Refer to Floor Protector section
for the required dimensions of the
Refer to chimney manufacturer's
instructions and clearance
requirements for roof penetrations.
radiation shield may be required in
some cases.
Refer to chimney manufacturer's
instructions for minimum air
space to combustibles
Refer to Clearances to
Combustible Materials section
for these stove clearances.
Refer to Clearances to
Combustible Materials section
for these stove clearances.
Termination Height
Minimum 15' (4.57 m)
Maximum 33' (10 m)
Termination Height
Minimum 15' (4.57 m)
Maximum 33' (10 m)
Refer to chimney manufacturer's
instructions and clearance
requirements for roof penetrations.
required. A radiation shield may also
be required in some cases.
