Interior Or Exterior Masonry Chimney
CAUTION: Not permitted in Canada unless full reline is used
For this type of installation use, a UBC approved masonry connector or other method approved by
the NFPA 211 Standard. Refer to the Chimney Connector section of this manual for requirements.
A full reline (positive connection) is highly recommended when venting through a masonry chimney.
It is recommended that a minimum 3' chimney be added to the minimum system height for every 1’ of
horizontal run.
!
NOTE: The chimney must have a clay tile
liner. If it does not, the installation must
use a positive connection (full reline). The
undamaged, and meet all local building
codes (UBC, etc.) Damage must be repaired
prior to installation. The chimney must be 15'
(4.57 m) to 33' (10 m) tall.
Refer to the Stove
Placement Requirements
section for minimum
clearances required.
Chimney
Connector
Sections
Refer to the Floor
Protector section for the
required dimensions of
Clay liner
This type of
installation requires
a UBC approved
masonary connector
(U.L. Listed) wall
thimble.
Ensure the
in place
Installation

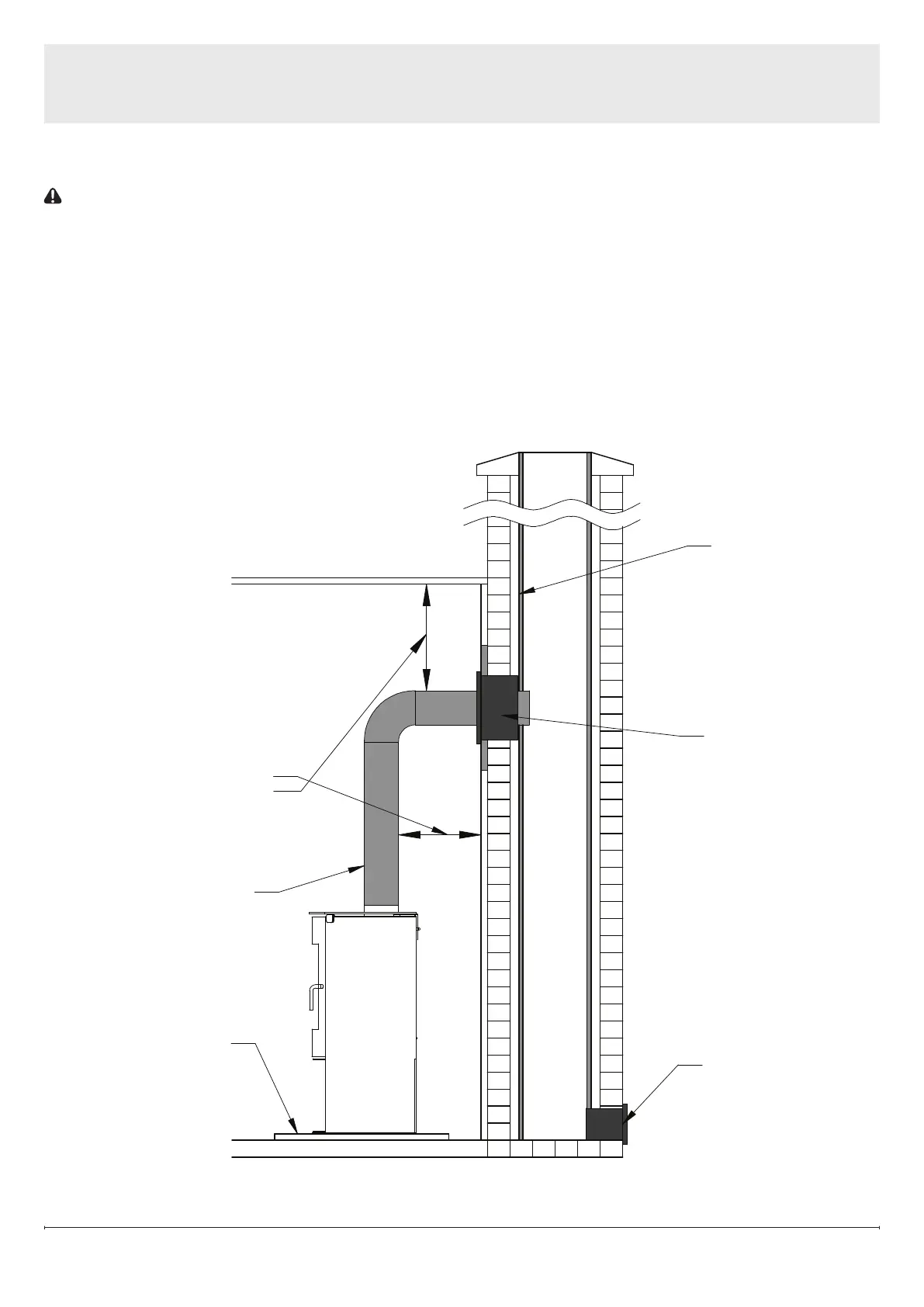

Figure 12
To Next Page
