Dimplex Quantum series Installation Manual

- 12 -
3. Remove the centre EPS piece and stand the heater on its feet before removing the packaging.
Dispose of the packaging in an appropriate way.
To avoid a fire hazard the cardboard insert within the heater core
must be removed before the heater is switched on. Also ensure all
polystyrene packaging is removed before the heater is operated.
Leaving combustible packaging in the appliance could lead to fire and
cause severe personal injury, death and damage to property.
WARNING
Models
LH Foot RH Foot
X Y X Y
A B A B A B A B
050
199 211 114 296 198 212 113 297
070
191 157 166 182 194 155 171 178
100
190 98 166 121 150 111 176 138
125 / 150
189 343 189 343 265 267 265 267

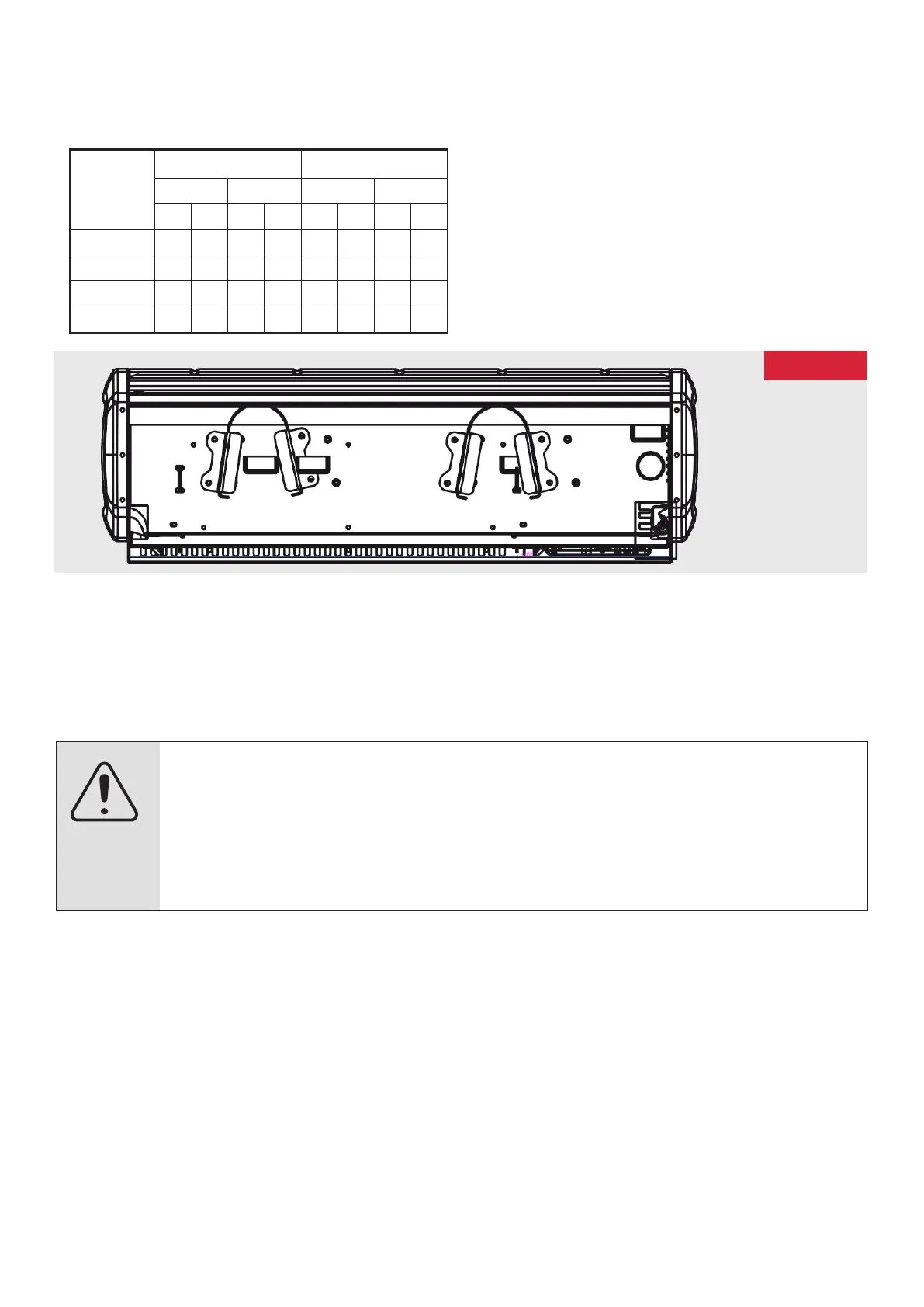

Fig. 3b
The Quantum feet can be fitted in two diferent
locations (X and Y). The X and Y are stamped onto
the base of the heater indicating the 2 locations
Y
X
YX
