Dimplex Quantum series Installation Manual

- 39 -
1. Casing condition good, no dents or scratches.
2. 240V AC power available to both Peak and
Off-Peak circuits.
3. For Single Supply installations, set the heater Standalone Charge Times according to End User
electricity tariff’s Off-Peak rate times.
A. Enter ‘Advance Setup’: Press and hold Advance/Menu buttons at the same time for 5 seconds.
B. Select ‘Charging’ menu.
C. Select ‘Charge Times’ sub-menu
D. Factory default times are 00:00 - 00:00. In this case the heater takes the charge whenever the Off-Peak
supply available and the Run time been calculated.
E. Set the Charge Times according to End User electricity tariff’s Off-Peak rate times.
4. Check date and time is correct. Set Daylight savings time if appropriate (see wiring section)
5. Select Timer Mode (as per customer requirements).
6. Set Comfort Times (as per customer requirements).
7. Fan and Boost Test
(NOTE - DISABLE BOOST WHEN TEST IS FINISHED).

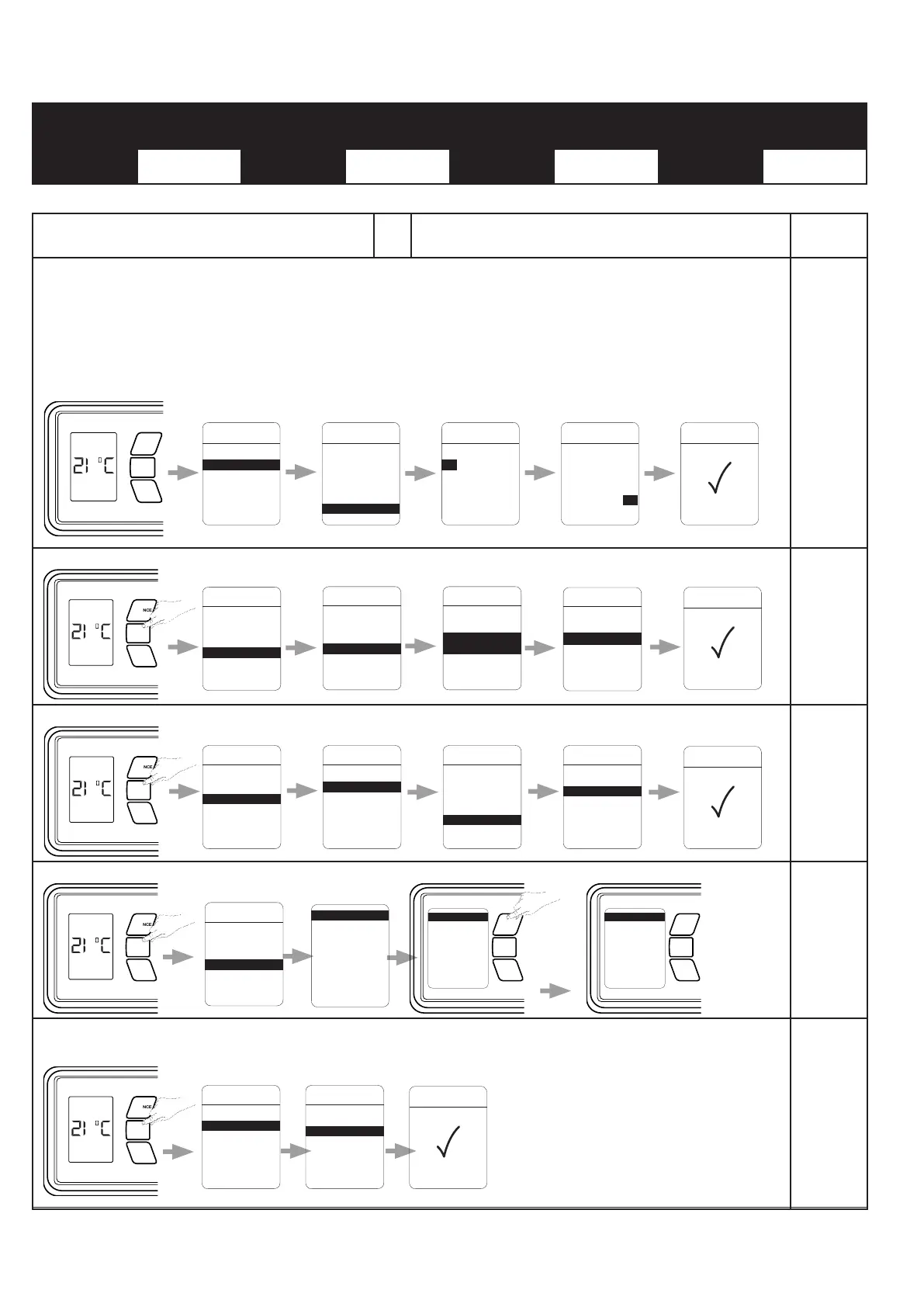

Quantum G.6 Commissioning Checklist
Model No. Serial No. Series Install Date

each box to complete
MENU
BACK
ADVANCE
Heating ON
Home
All Day
Advanced
Settings
Temp
Charging
Service
Heat Source
Factory Reset
Charging
Additional
Charge
Heat Demand
Offset
Charge Times
Charge
Times
ON OFF
00:00->00:00
00:00->00:00
00:00->00:00
00:00->00:00
Charge
Times
ON OFF
00:00->07:00
07:00->07:00
07:00->07:00
07:00->07:00
Charge
Times
Set
MENU
BACK
ADVANCE
Comfort ON
Main Menu
Boost
Modes
Settings
Settings
Heater Lock
Boost
Setback
Date/Time
Sound
Comms
Adaptive
Date / Time
Set
Date/Time
DST Rule
Date / Time
Mon
08 / 10 / 18
13 : 32
Date / Time
Set
Main Menu
Boost
Modes
Settings
Modes
Timer Mode
Frost
Protect
Timer Mode
User Timer
Home
All Day
Out All Day
Away
Out All Day
Select
Modify
Preview
Out All Day
Selected
MENU
BACK
ADVANCE
Comfort ON
Out All Day
Select
Modify
Preview
MENU
BACK
ADVANCE
Comfort ON
t MON u
Period
1 of 4
ON 07 :00
OFF 08 :30
21 °C
MENU
BACK
ADVANCE
t MON u
Period
1 of 4
ON 07 :00
OFF 08 :30
21 °C
Copy -
Press
and Hold
Advance
MENU
BACK
ADVANCE
t TUE u
Period
1 of 4
ON 07 :00
OFF 08 :30
21 °C
Paste
- Press
and Hold
Dial.
Repeat.
Main Menu
Boost
Modes
Settings
Boost
Boost Temp
21 °C
Boost Time
30 Mins
Boost
Boost Set
MENU
BACK
ADVANCE
Comfort ON
Note: This represents the minimum software setup to commission this heater. Instructions here do not subsitute or replace
installation instruction requirements or warnings in the rest of this manual.
