7. Place the heater in its final position and mark the fixing holes through the location holes visible through the back
of the heater.

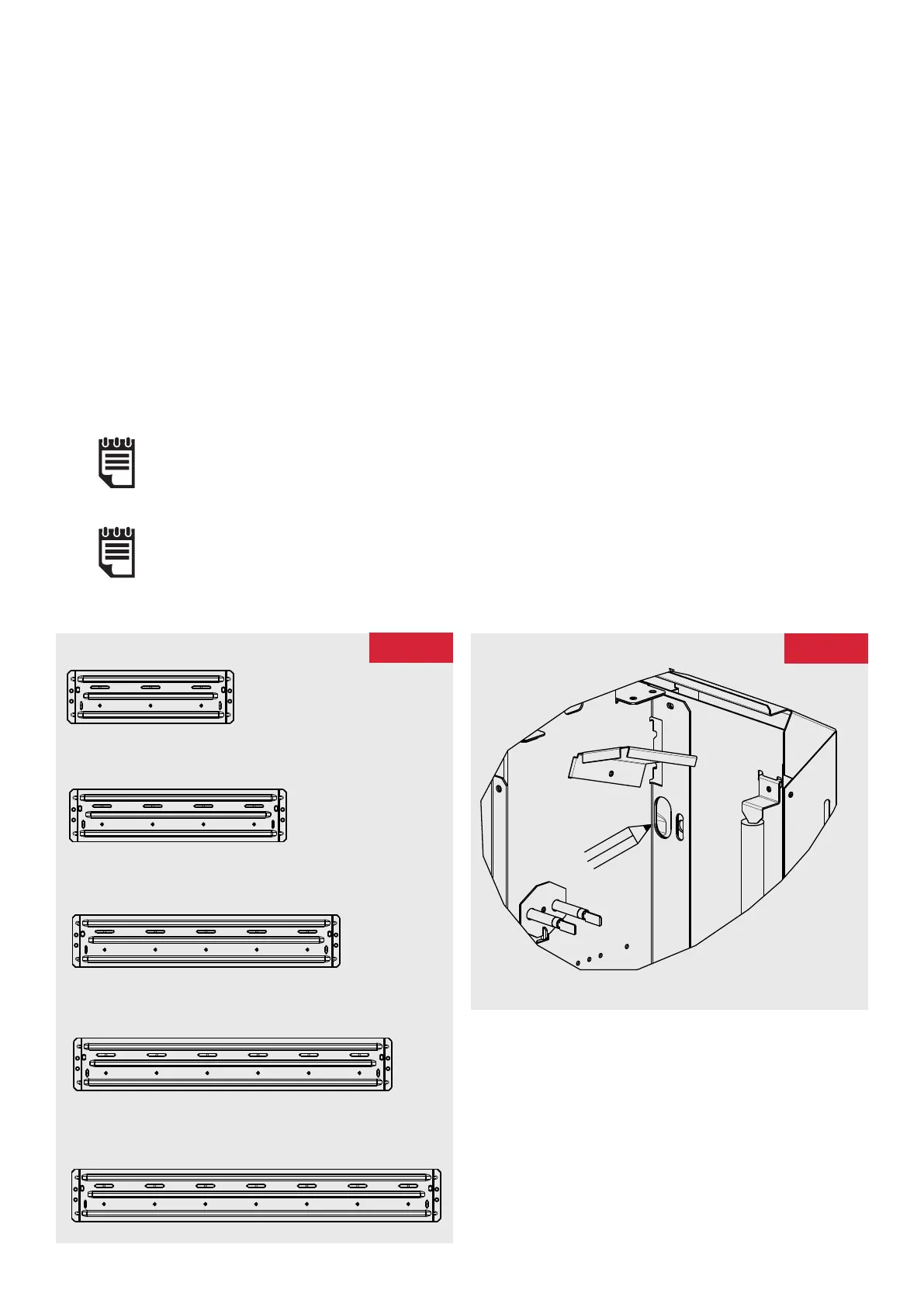

8. Six fixing positions must be selected for ALL models QM050RF, QM070RF, QM100RF, QM125RF and QM150RF.
Fig. 7.
NB: Do not fully tighten screws until energy cells are fully loaded to ensure full weight is on feet and not on the
wall fixings.
Common fixing points for all heater sizes are shown.
Mark the positions for the fixing holes towards the bottom of each slot at the two extreme ends of the slots,
this allows the heater to settle once the energy cells have been fitted. Fig. 8.
Move the heater away from the wall, drill the holes and fit the wall fixings best suited to the application.
Secure the heater to the wall using correct quantity of screws required per model, using the appropriate screw
fittings.
Fig. 8
NOTE:
UNDER NO CIRCUMSTANCES SHOULD ANY SCREWS BE REMOVED WITHOUT FIRST REMOVING ALL
ENERGY CELLS FROM THE HEATER
NOTE:
NEVER FREE THE HEATER FROM THE WALL WITH ENERGY CELLS REMAINING INSIDE THE HEATER
CAVITY.
Fig. 7
QM070RF
QM100RF
QM125RF
QM150RF
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
QM050RF
x
x
x
x
x
x
