Dimplex SIL48 Service Manual

3

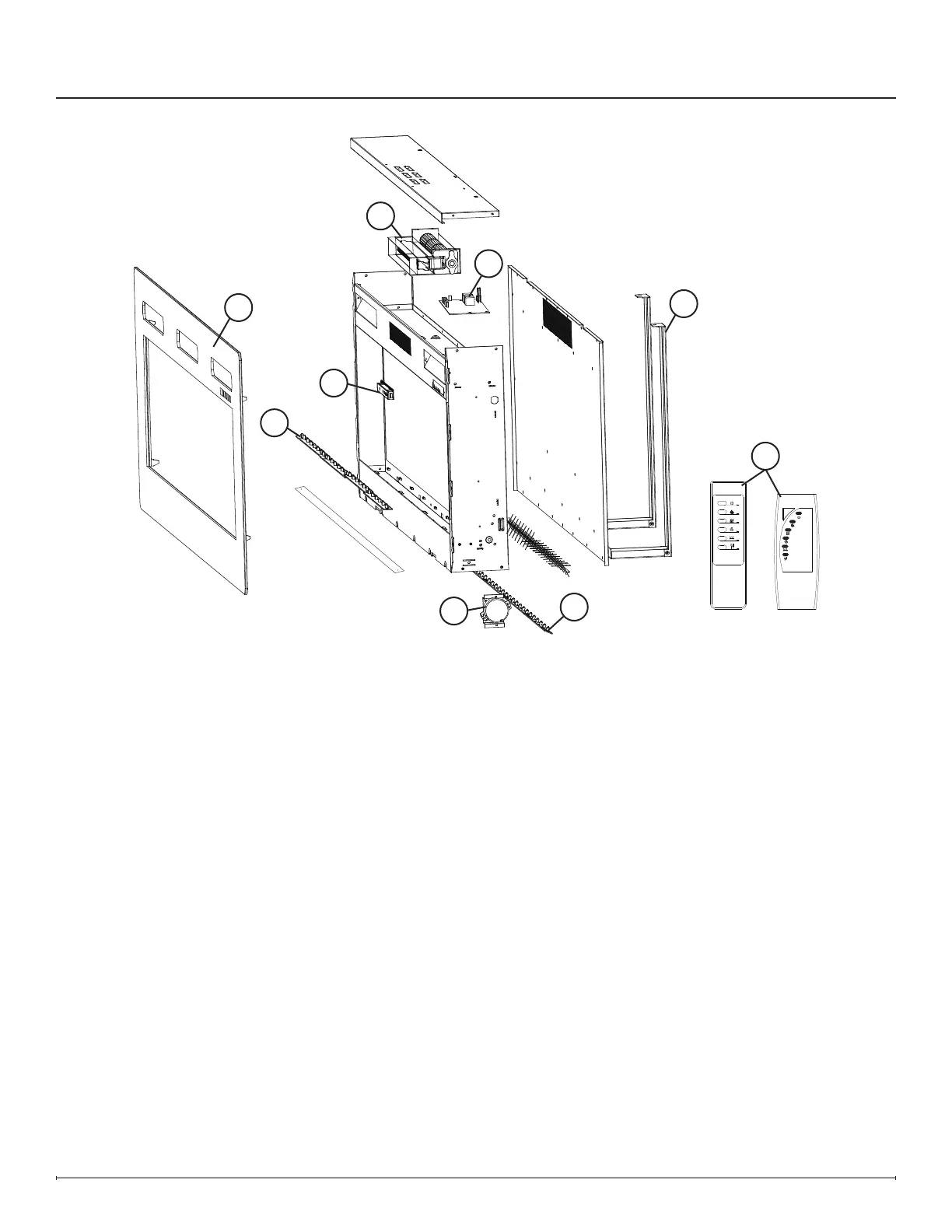

Exploded Parts Diagrams
1. Main Control Board
SIL48 MOD 0 ....................9602330100RP
SIL48 MOD A ....................9602332400RP
SIL48M MOD 0 ...................9602330200RP
SIL48M MOD A ...................9602332500RP
SIL60 & SIL72 MOD 0. . . . . . . . . . . . . . 9602332300RP
SIL60 & SIL72 MOD A. . . . . . . . . . . . . . 9602332600RP
SIL96 MOD 0 ....................9602330300RP
SIL96 MOD A ....................9602332700RP
2. Remote Control
MOD 0. . . . . . . . . . . . . . . . . . . . . . . . . .9602110200RP
MOD A .........................9602332800RP
3. Touch Pad (with IR sensor) . . . . . . . . . . 9602110300RP
4. Flicker Motor. . . . . . . . . . . . . . . . . . . . . 9602110400RP
5. Heater Assembly. . . . . . . . . . . . . . . . . . 9602332200RP
6. Flame LEDs
SIL48 & SIL48M ..................9602110600RP
SIL60 ...........................9602330400RP
SIL72 ...........................9602330500RP
SIL96 ...........................9602330600RP
7. Color LEDs
SIL48 & SIL48M ..................9602110700RP
SIL60 ...........................9602330700RP
SIL72 ...........................9602330800RP
SIL96 ...........................9602330900RP
8. Temperature Sensor (NTC)
SIL48 & SIL48M ..................9602110800RP
SIL60 & SIL72 . . . . . . . . . . . . . . . . . . . . 9602331000RP
SIL96 ...........................9602331100RP
9. Front Glass
SIL48 & SIL48M ..................9602331200RP
SIL60 ...........................9602331300RP
SIL72 ...........................9602331400RP
SIL96 ...........................9602331500RP
10. Power Cord. . . . . . . . . . . . . . . . . . . . . . 9602111000RP
11. Wall Mounting Hardware. . . . . . . . . . . .9602331600RP
12. Feet
MOD 0 .........................9602331700RP
MOD A .........................9602332900RP
13. Log Set
SIL48 & SIL48M ..................9602331800RP
SIL60 ...........................9602331900RP
SIL72 ...........................9602332000RP
SIL96 ...........................9602332100RP
1
3
4
5
6
7
9
11
MOD 0 MOD A
2
