Electrical•Connections
Warning:•Before•obtaining•access•to•terminals,•all•supply•circuits•must•be•disconnected.

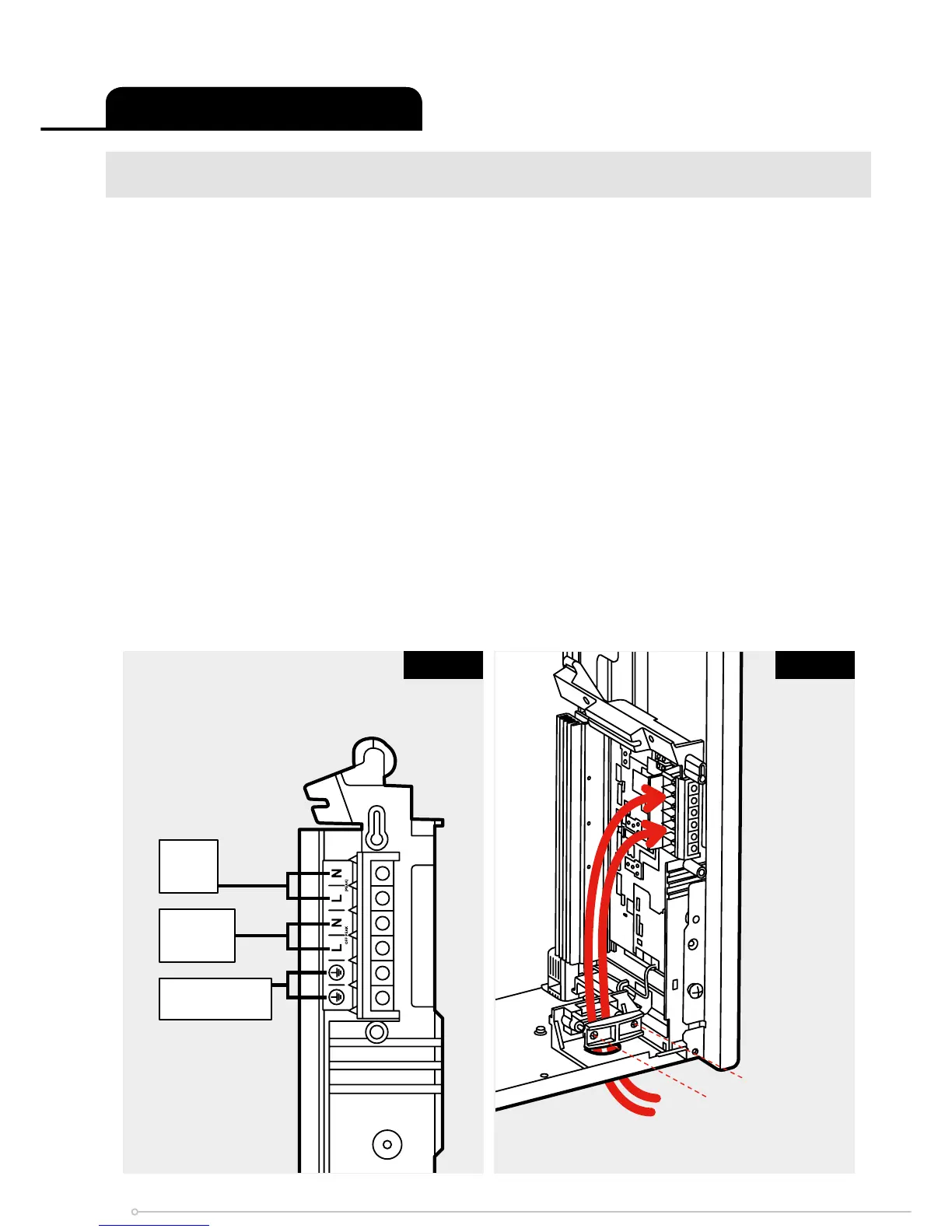

7. The heater leaves the factory con• gured to operate with two mains supplies, a 24 hour peak
supply and an o• peak switched supply. (Fig.•7)
Storage•/•Fan•circuit
Fan Circuit = PEAK L
Storage Circuit = OFF-PEAK L
Fan Circuit = PEAK N
Storage Circuit = OFF-PEAK N
The earth wire should be connected into the earth terminal block marked E
WARNING•-•Terminal•block•maximum•torque•0.5•Nm
Neutral
Live
(Off -Peak)
Neutral
Live
(Peak)
Earth
(Both Supplies)
Switched
Supply
Terminal Block
Mains
Cable
Tighten Screws
Fig. 8
Fig. 7
