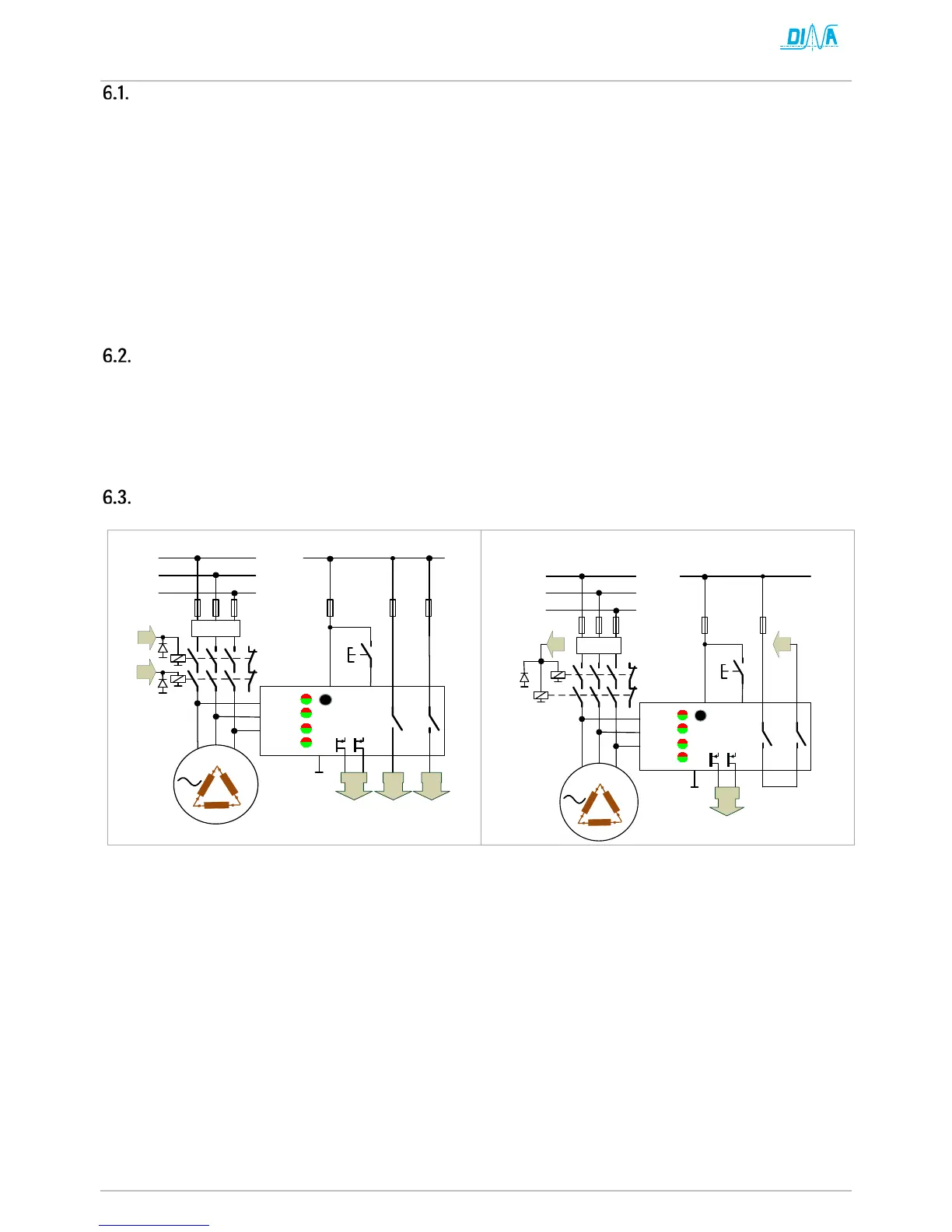

DINA DN3PD1 - 6.1 Wiring; 6.2 Commissioning

DN3PD1
Mounting and removal
12 18-09-27 / 33pd02-V0743
Wiring
• Conductor cross-section of 1.5 mm² must not be undercut.
• Use Copper wires approved up to 60°C/75°C.
• For of wire end sleeve is recommended.
• Loads connected to the measuring wires are not allowed.
• The placing of the measuring wires has to avoid a cross connection or short. Laying in cable channel.
• The regulations according to EN 60204-1 are to be followed.
• Use effective protective circuits parallel to an inductive load to avoid a shortcut of the output contacts.
• The arrangements of the overcurrent protective mechanism are to consider.
• Overvoltage > 32V DC destroys the unit.
• Use power supply with max. 32V output voltage also with fault..
Commissioning
• Switch off the unit befor you start working.
• Wire the unit according to intended use
• Connect the power supply 24V DC to A1 and 0V to A2.
• Self-test follows. After faultless self-test the unit is in function. The LED OK is green
Example of application
Application: Output contacts connected in parallel
