DINGLI S03-E - Control Panel

OPERATOR’S MANUAL with Maintenance Information
Control Panel
8

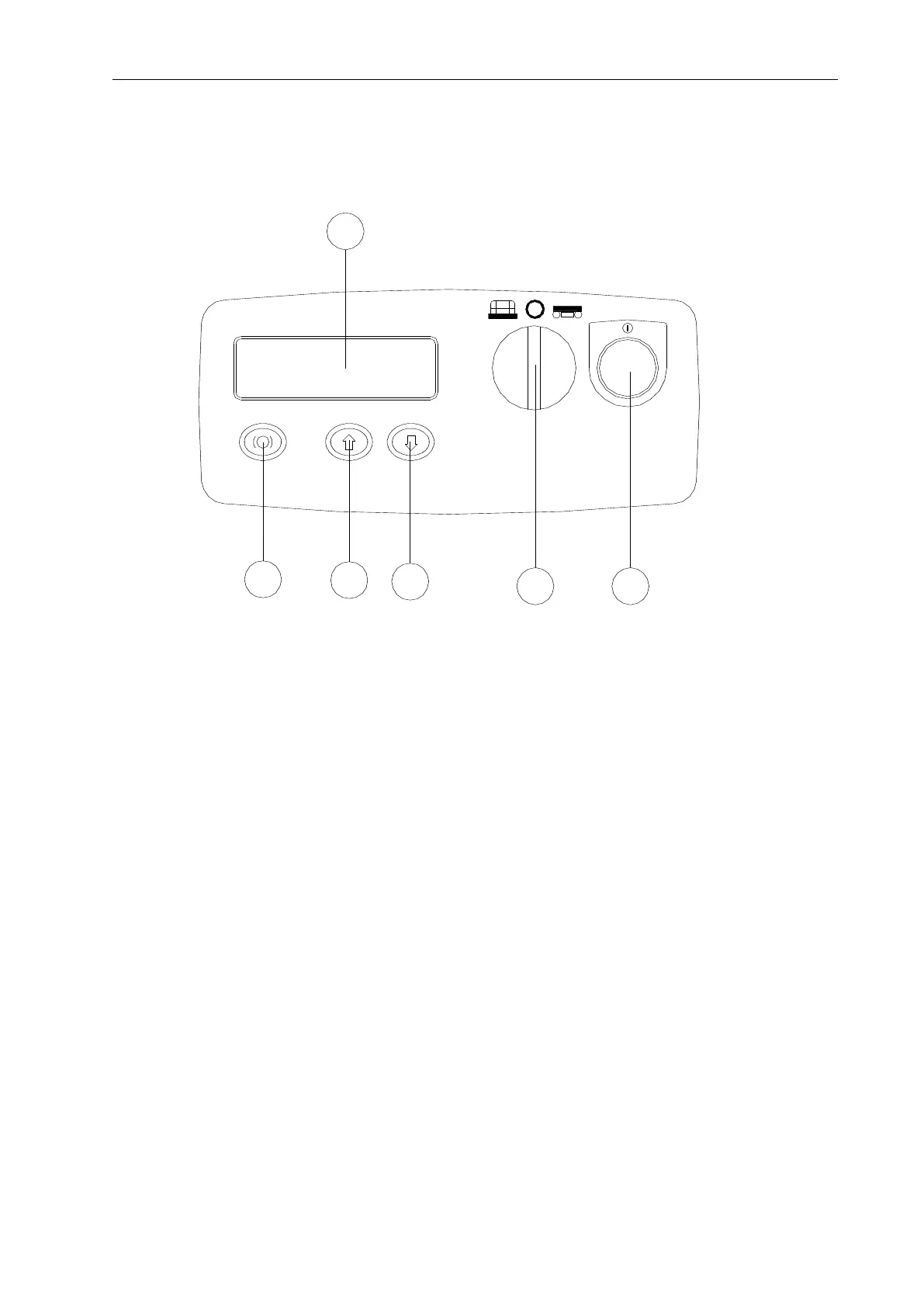

Ground Control Panel
1 Break release button
2 Platform up button
Press the button and the platform will raise.
3 Platform down button
Press the button and the platform will lower.
4 LED
5 Key switch for platform / off / ground control
selection
Turn the key switch to the platform position and
the platform controls will operate. Turn the key
switch to the off position and the machine will
be off. Turn the key switch to the base position
and the ground controls will operate.
6 Red Emergency Stop button
Push in the red Emergency Stop button to the
off position to stop all functions. Pull out the red
Emergency Stop button to the on position to
operate the machine.
1
2
3
5 6
4
