Dingo K9-3 Operation & Maintenance Manual
21

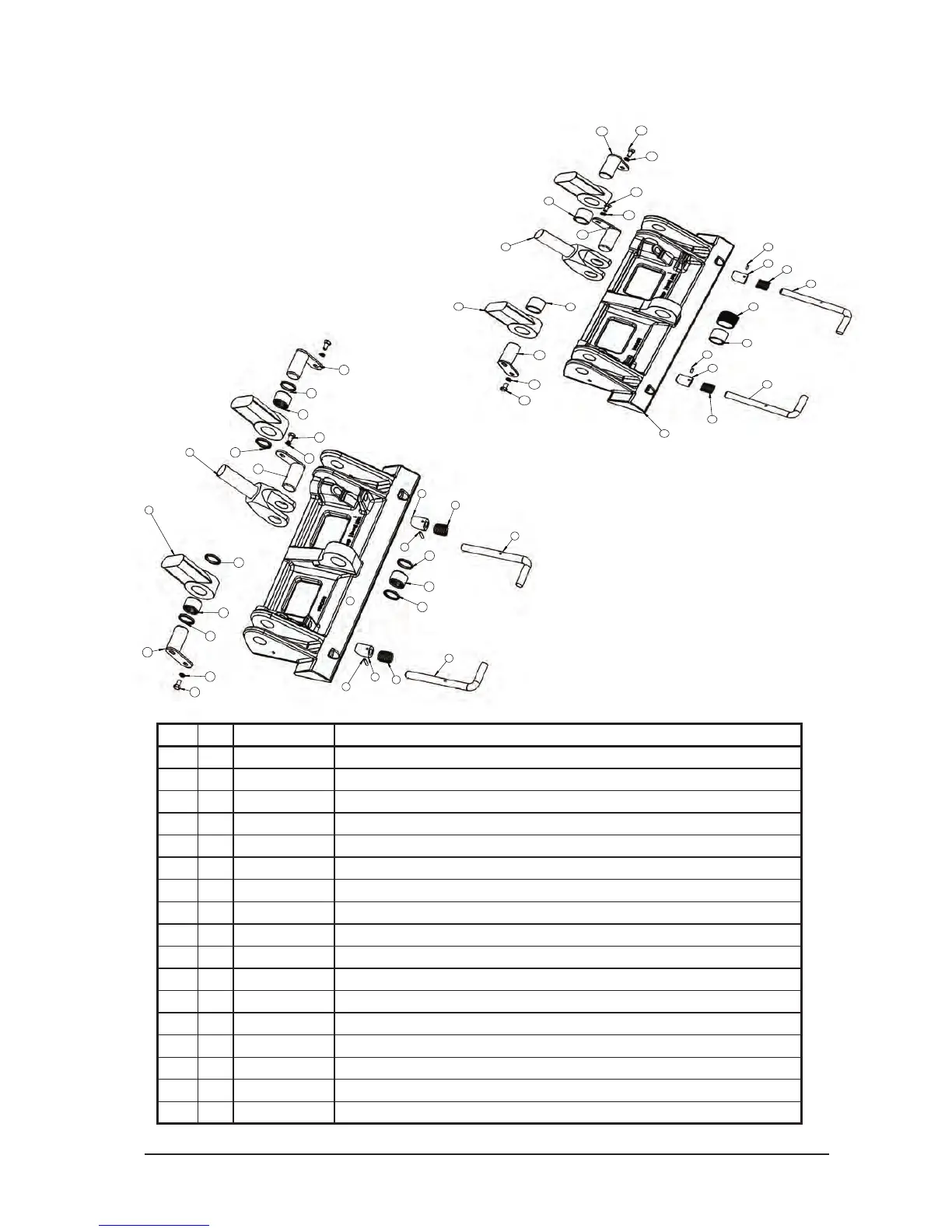

Item Qty Part Number Description
1 1 K94-214 Bare Mount Plate For Bushes
1 1 K94-212 Bare Mount Plate For Bearings
2 1 321-000-005 2 1/2” x 8” Lift Ram 1 1/4” Top Clevis
3 1 K94-207 Load Arm Assembly
4 2 043-000-020 Bevelled Bush
5 2 043-000-031 Locking Pin Spring
6 2 100-000-025 ROLL PIN 5/32” X 1” B1114
7 2 D95-211 Locking Pin
8 3 043-000-057 1 1/2”OD 1 1/4” ID Duralon Bush
9 1 K94-213 Steel Bush 1.5” ID1.75”OD 32mm K94-212 Mount Plate Only
10 1 K94-026 Clevis Pin 1 1/4” x 66mm 50mm Tag Chrome
11 2 K93-008 Clevis Pin 1 1/4” x 63mm 50mm Tag Chrome
12 3 132-131-000 5/16” / 8mm Spring Washer
13 3 111-311-016 Hex Bolt M8x16
14 3 K94-105 Clevis Pin 1 1/4” x 63mm 50mm Tag PGIH
15 6 043-300-054 Seal For 1 1/4” Needle Bearing L15X
16 3 043-000-053 1 1/4” Needle Bearing
To Next Page
