DINGO K9-3 User Manual

Dingo K9-3 Operation & Maintenance Manual
22
Dingo K9-3 Operation & Maintenance Manual
23

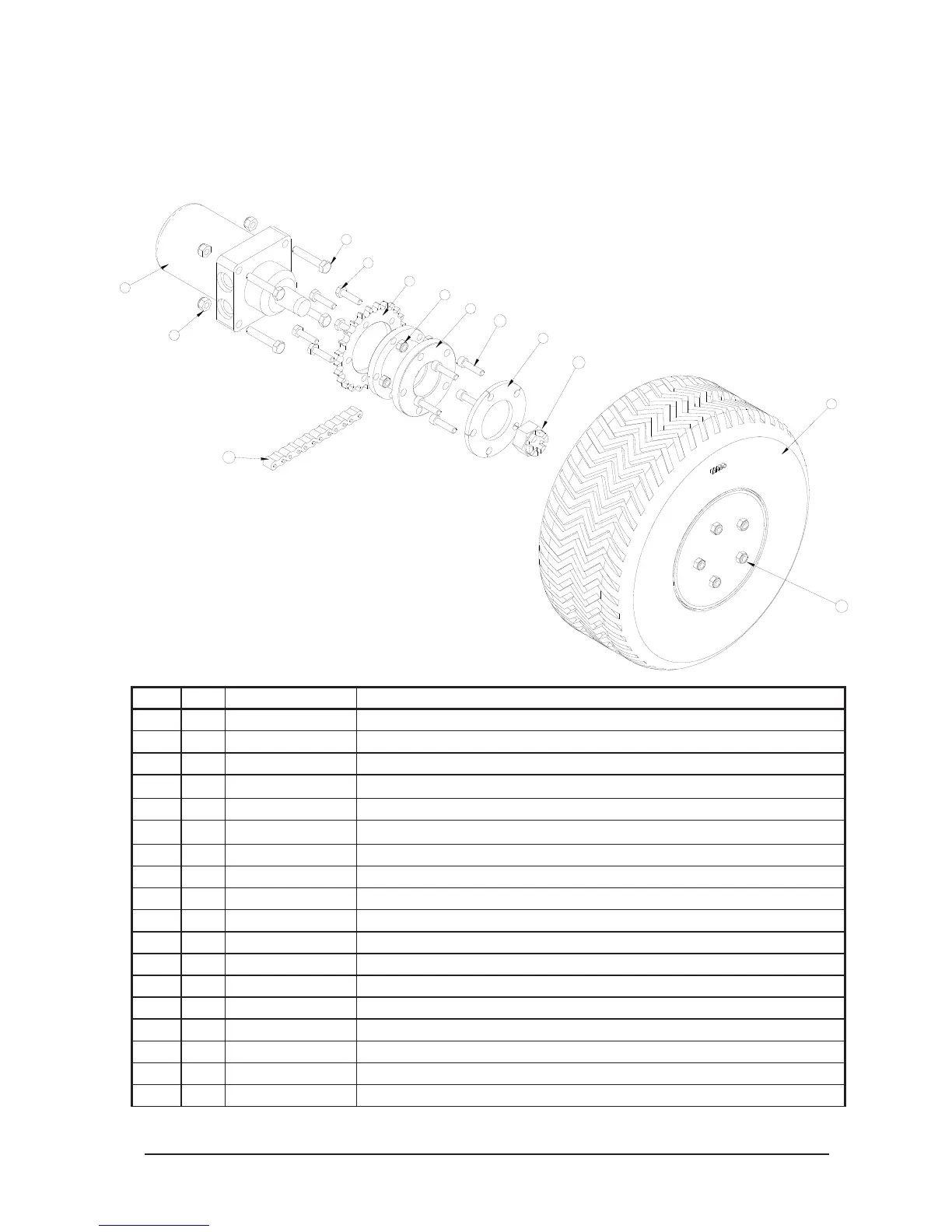

Rear Wheel Assembly & Part List
12
11
10
4
13
5
2
6
3
9
8
1
7
Item Qty Part Number Description
1 1 331-001-004 Wheel Motor 1 1/4" Drive Shaft
1 1 330-001-006 Wheel Motor 1 3/8" Drive Shaft
2 1 610-000-011 Rear Hub (1 1/4" Drive Shaft) With Studs
610-000-013 Rear Hub (1 1/4" Drive Shaft) With Sprockets
2 1 K93-020 Rear Hub (1 3/8" Drive Shaft) With Studs
610-000-029 Rear Hub (1 3/8" Drive Shaft) With Sprockets
3 1 615-000-004 Drive Sprocket
4 1 610-000-010 Wheel & Tyre Assembly (Trelleborg Tyre)
5 1 D95-420 Tyre Spacer (20" Sand Tyre Only)
6 10 122-241-000 7/16" UNF Nyloc Nut Zinc
7 4 122-351-000 1/2" UNC Nyloc Nut Zinc
8 4 113-521-040 1/2"UNC x 2 1/2" Hex Bolt H/T
9 5 112-411-024 7/16" UNF x 1 1/2 Hex Bolt Black
10 5 610-000-021 Wheel Stud 7/16" UNF x 1 1/2"
10 5 610-000-030 Wheel Stud 7/16" UNF x 1 7/8" (2003 Onwards)
11 1 614-000-001 Chain 60H 102 Links Including Connector
12 1 330-001-002 1 1/4" UNEF Castle Nut To Suit Taper Shaft MB/ME Wheel Motor
12 1 330-001-007 1 3/8" Nyloc nut For Tapered Shaft
