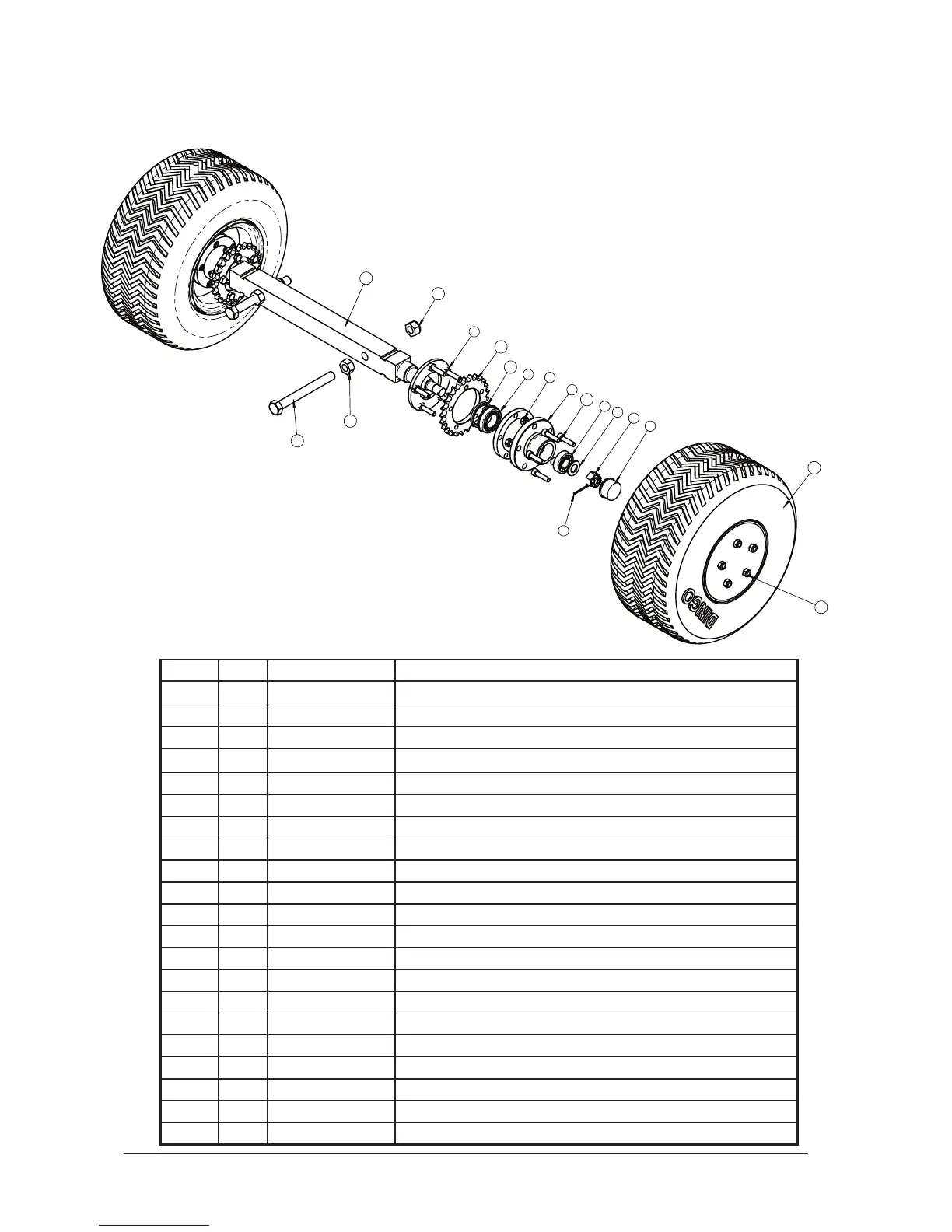

Front Axle Assembly & Part List
Item Qty Part Number Description
610-000-002 Axle Assembly With Hubs & Adjusting Bolts
1 2 610-000-008 Dust Cap
2 2 610-000-012 Front Hub With Studs
610-000-014 Front Hub Complete With Sprockets & Bolts
3 2 610-000-004 Inner Bearing
4 2 610-000-005 Outer Bearing
5 10 112-411-024 7/16" UNF x 1 1/2" Hex Bolt Black
6 2 120-282-001 3/4" UNF Slotted Nut
7 10 122-241-000 7/16" UNF Nyloc Nut Zinc
8 2 131-281-000 3/4" UNC Flat Washer Zinc
9 2 100-000-008 Cotter Pin Ø3.2 x 40
10 2 610-000-010 Sealing-Ring-Single-Lip SD-50*62*5
11 2 610-000-003 Front Axel Adjusting Bolt With Nut
12 2 122-381-000 3/4" UNC Nyloc Nut Zinc
13 2 615-000-001 Drive Sprocket
14 1 610-000-001 Front Axle Bare With Washers And Nuts
15 10 610-000-021 Wheel Stud 7/16" UNF x 1 1/2"
15 10 610-000-030 Wheel Stud 7/16" UNF x 1 7/8" (2003 Onwards)
16 2 610-000-010 Wheel & Tyre Assembly (Trelleborg Tyre)
17 2 121-382-000 3/4" UNC Hex Nut Black
18 2 610-000-027 Wheel Nut 7/16" UNF
