Dingo K9-3 Operation & Maintenance Manual
26
Dingo
K9-3
Operation
&
Main
tenance
Man
ual
27

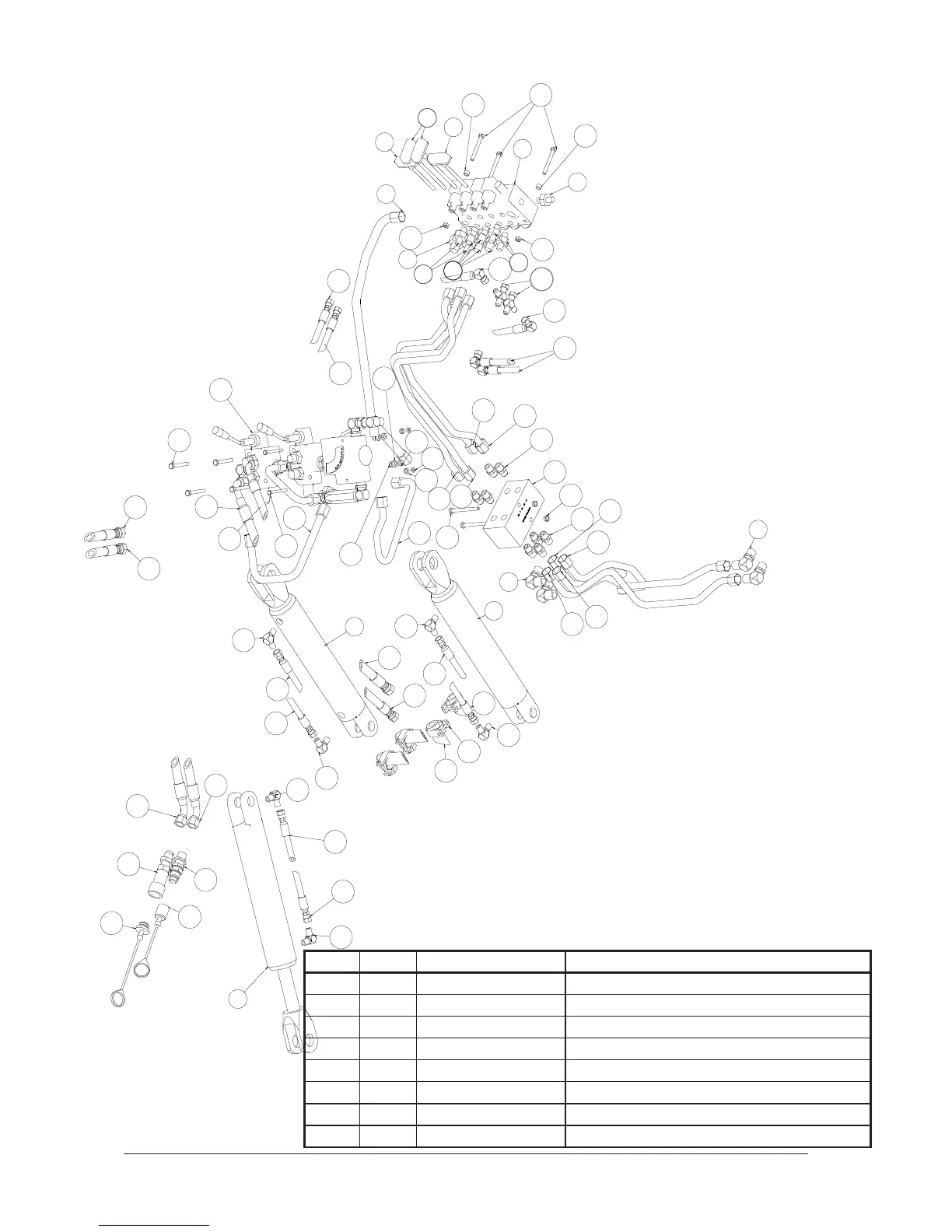

Hydraulic Assembly & Part List
Item
Qty
Part Number
Description
1
3
321-000-005
Lift Cylinder
2
1
330-003-008
Main Control Bank
3
4
315-797-500
C59-1414 Fitting
4
2
330-003-032
Short Handle
5
2
330-003-031
Long Handle
6
5
316-377-500
CR2-0614 Fitting
7
4
316-377-500
CR2-0614 Fitting
8
1
316-377-500
CR2-0614 Fitting
25
27
Table of Contents
Introduction
2
Table of Contents
3
Safety
5
General Operation
5
Operating on Slopes
6
Children
6
Service
6
Safety and Instruction Decals
7
Specifications
8
Operation - Pre Start-Up
9
Pre Start-Up (Daily)
9
Adding Fuel
9
Checking the Engine Oil
9
Remove Debris from the Machine
9
Tyres and Traction
10
Operating Instructions
10
Control Levers / Control Panel
10
Key Switch
10
Throttle
10
Choke
10
Drive Control Levers
10
Attachment Tilt Lever
11
Loader Arms Lever
11
Control Panel Diagram
11
Auxiliary Hydraulic Lever
11
Pump Selector Lever
11
Flow Divider Control
11
Starting the Engine
12
Stopping the Engine
12
Stopping the Dingo
12
Moving a Non Functioning Dingo
12
Using Cylinder Locks
12
Attachments
12
Connecting
12
Disconnecting
13
Maintenance
13
Maintenance Schedule
14
Dingo Service Pack
15
Bushes & Pins
15
Air Filter
15
Engine Oil
15
Changing / Draining Oil
15
Changing Oil Filter
16
Spark Plugs
16
Fuel Filter
16
Draining the Fuel Tank
16
Hydraulic System
16
Replacing the Hydraulic Filter
16
Changing the Hydraulic Fluid
17
Check Hydraulic Lines
17
Adjusting Drive Chains
17
Battery
18
Cleaning and Long Term Storage
18
Transporting and Securing
13
Troubleshooting
19
Arm Assembly & Part List
20
Mount Plate Assembly & Part List
21
Front Axle Assembly & Part List
22
Rear Wheel Assembly & Part List
23
Dash Assembly & Part List
24
Hydraulic Assembly & Part List
26
Kohler Petrol Engine Assembly & Part List
28
Perkins Diesel Engine Assembly & Parts List
30
Oil Tank Top Assembly & Part List
33
Risk Hazard Assessment
36
Warranty Statement
38
