DINGO K9-3 User Manual

Dingo K9-3 Operation & Maintenance Manual
28
Dingo K9-3 Operation & Maintenance Manual
29
39
53
44
46
38
38
37
37
36
26
34
33
47
46
45
1
35
14
15
18
55
54
43
22
13
48
45
49
47
45
45
49
47
48
44
50
46
44
49
29
30
32
31
51
5
25
2
52
42
12
6
4
27
40
16
17
41
40
24
8
7
3
42
9
20
19
10
23
21
45
45
44
11
28

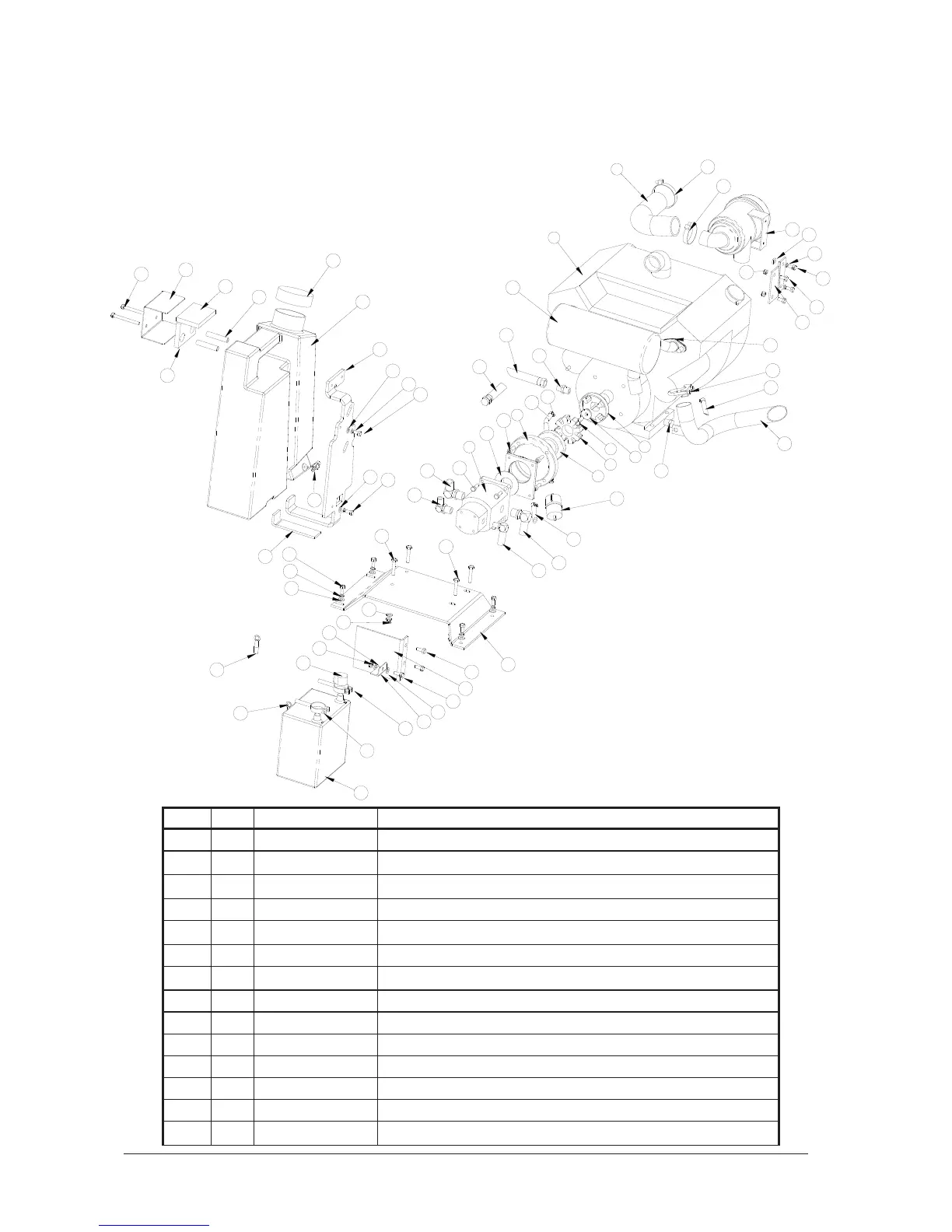

Petrol Engine Assembly &
Part List
Item Qty Part Number Description
1 1 511-000-000 Kohler Engine 22 Hp
1 512-000-011 Robin Engine 20.5 Hp
512-000-016 Robin Engine 22 Hp
2 1 330-005-005 Kohler Housing
1 330-005-003 Robin Housing
3 1 330-005-008 Kohler Coupling (Taper Shaft)
1 330-005-007 Robin Coupling (Straight Shaft)
4 1 330-005-014 Spider Coupling
5 1 330-002-004 Hydraulic Pumps
6 1 330-005-009 Pump Coupling
7 1 D95-352 Kohler Shaft Washer
8 1 111-421-025 Hex Bolt M10 x 25
9 1 515-000-001 Kohler Main Air Hose (Up To D014) Small Air Cleaner
1 515-000-056 Kohler Main Air Hose (D015 Onwards) Large Air Cleaner
