Assembly
USER_MAN_ENG_TPW_v4
VERSION 2

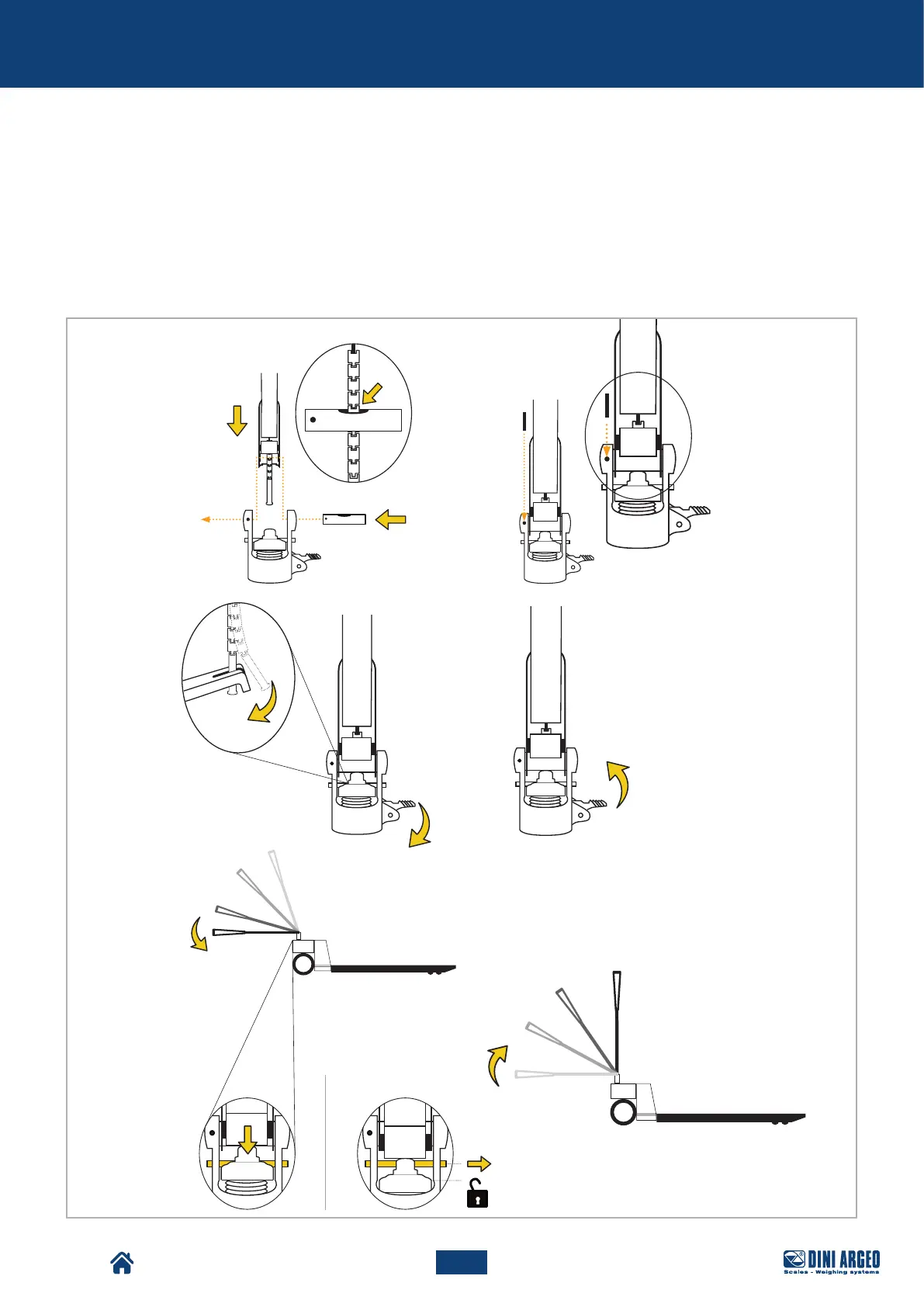

B.5. Position the tiller vertically above the carriage, making sure that the chain falls at the hole. Then insert the
pin into the side hole.
B.6. Insert the split pins to lock the pin.
B.7. Hook the chain to the specific locking lever.
B.8. Fully lower the tiller to compress the spring as much as possible, so as to leave enough space to remove
the pin. Bring the tiller back to normal position.
