Directechs Directed DB3 - Installation; Wiring Diagram with T-Harness (THFD1)

6
403.FORD6 3.24 2013 Ford Taurus (40-Bit)
©2022 VOXX•DEI LLC. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).
RAP Off Interrupt (connector side): Yellow/Red
RAP Off Interrupt (vehicle side): Orange/Red
(-) Lock Output: Green/Black
(-) Unlock Output: Red/Black
(-) Trunk Hatch Release/Power Liftgate Output: Violet/Brown
Driver’s Door Trigger

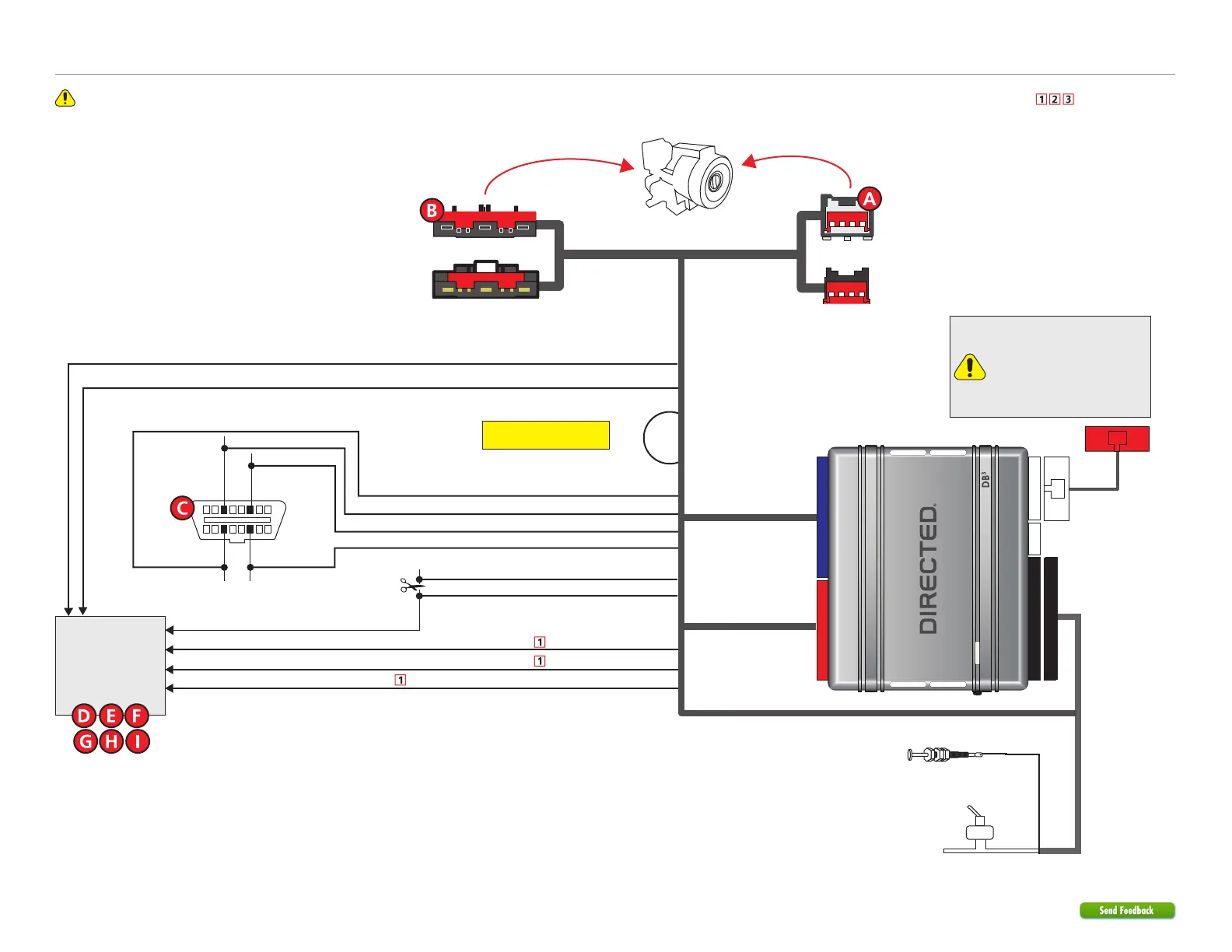

Wiring diagram with T-Harness (THFD1)
Cut
Refer to
“Vehicle connections”
section for the
connector, pin and
wire color.
(+) 12V Input: Yellow
1412
10
42
Remote Start Safety
Override Switch
Hood Pin
Note: The Hood Pin is only required on vehicles
that are not equipped with a factory hood pin.
Ignition Switch
(connector side)
Ignition
Barrel
THFD1
(optional
T-Harness)
P.A.T.S.
4-pin
connector
(connector side)
16
8
9
1
HS CAN Low:
Pin 14
HS CAN High:
Pin 6
MS CAN Low:
Pin 11
MS CAN High:
Pin 3
OBDII Diagnostic
(connector side view)
MS CAN Low: Tan
MS CAN High: Tan/Black
HS CAN High: Orange/Green
HS CAN Low: Orange/Brown
Violet
Attention! DO NOT cut
loop in RSR Application
You can connect to either a
XL202 RFTD OR a SmartStart
module.
Refer to the SmartStart/XL202
Installation Notes for more
information.
(+) Parking Lights Output: White
