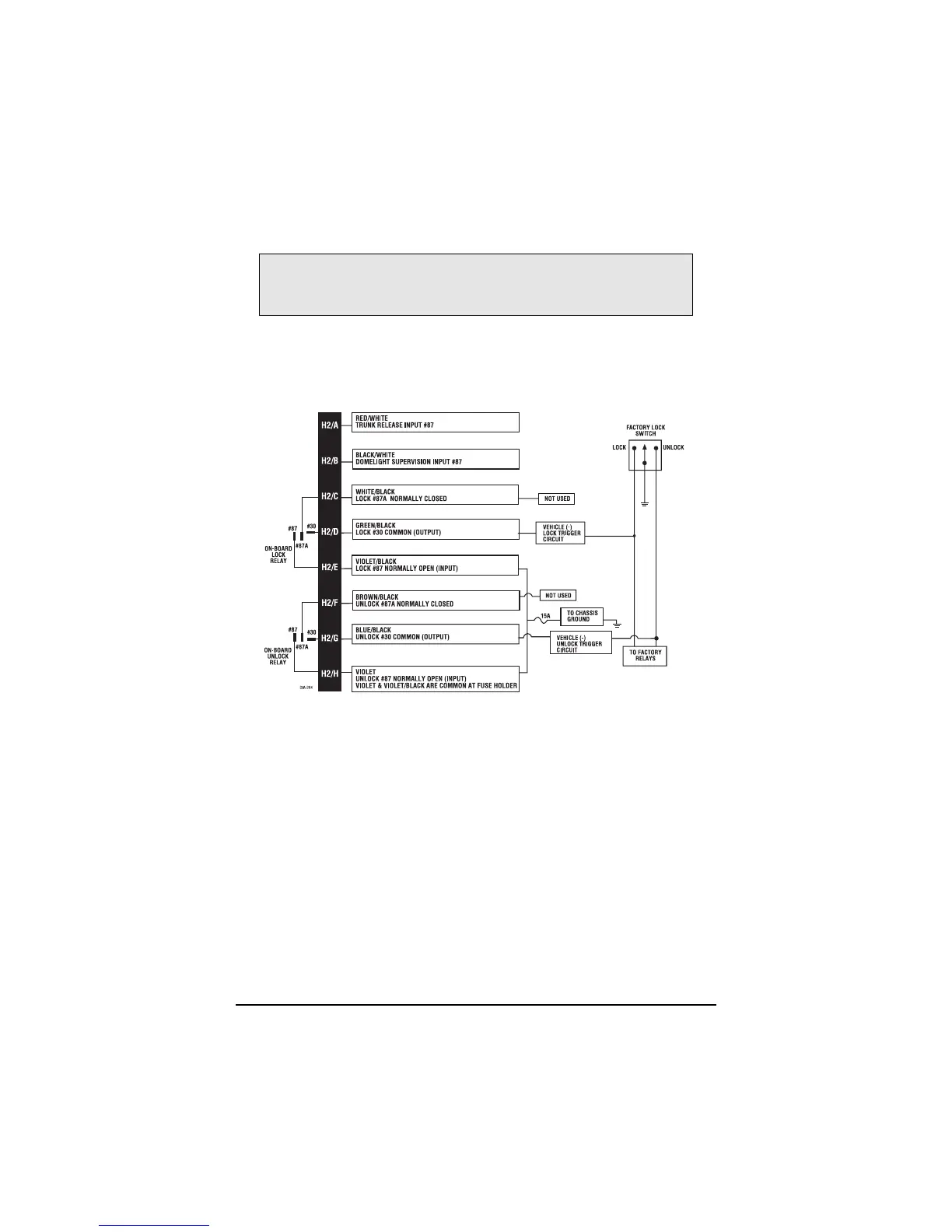

Type B: Negative-Triggered, Relay-Driven System
IMPORTANT! The H2/A and H2/B wires are not required for wiring the door locks. For
detailed wiring instructions for these two wires, refer to the beginning of the Door Lock
Harness (H2) Wire Connection Guide section.Depending on the type of door lock system,
there may be additional H2 harness wires that are not used for wiring the door locks.
