2002
Directed Electronics, Inc.
23
Shock Sensor Harness, 4-Pin White Plug
GREEN (-) Multiplex Input
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8
seconds will trigger full alarm sequence and report Zone 4.
NOTE: If installing an optional Directed dual-stage sensor, connect to the GREEN wire. The
following diagram eliminates the need for diodes to isolate the sensors, as well as providing a
separate zone for each sensor.

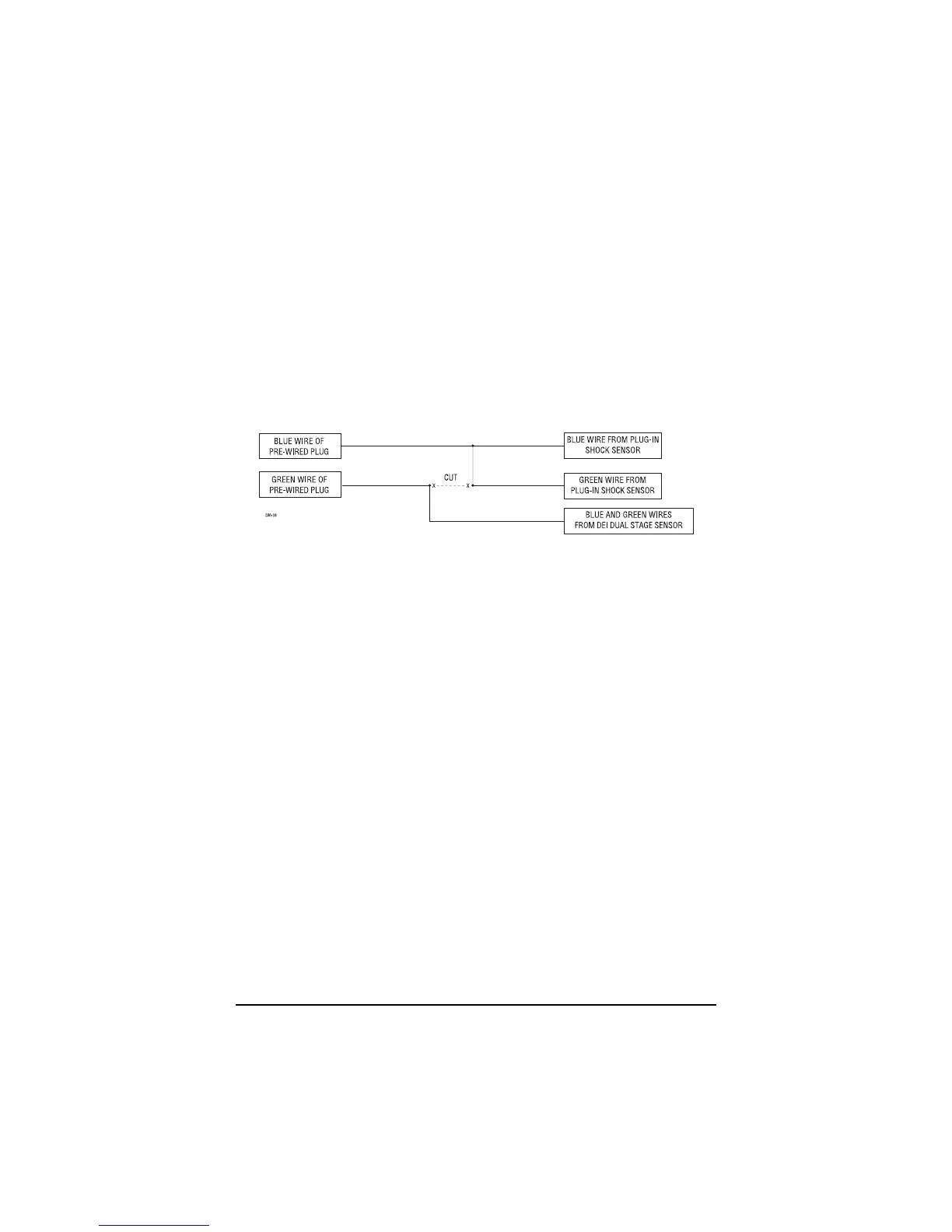

Diagram for adding optional Directed dual stage sensor to GREEN wire (zone 4).
BLUE (-) Multiplex Input
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8
seconds will trigger full alarm sequence and report Zone 2.
RED (+) 12V Constant and BLACK (-) Ground
Do not use these for anything besides the plug-in shock sensor.
