14
©
2002
Directed Electronics, Inc.
➤➤

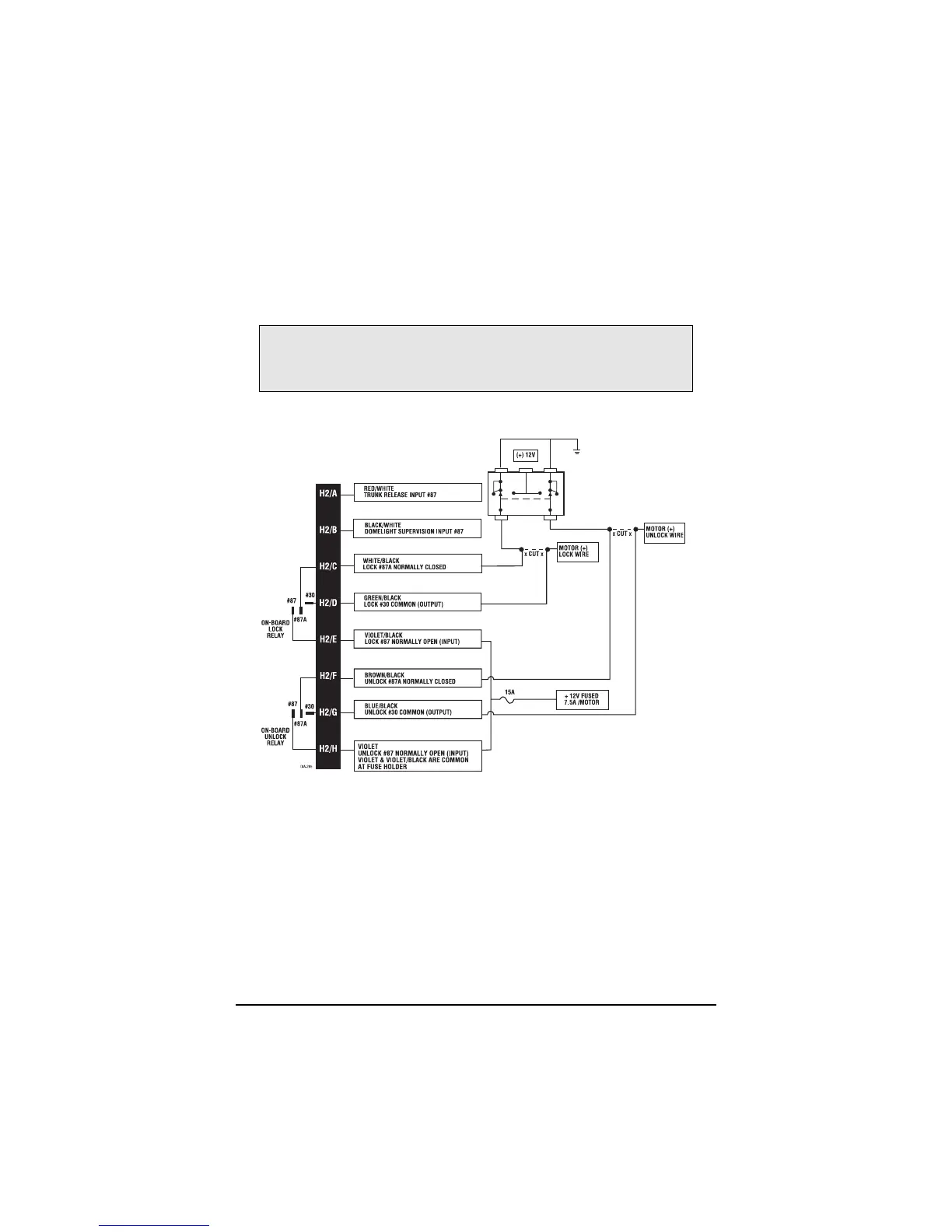

HH22//FF BBRROOWWNN//BBLLAACCKK
- Connect the brown/black wire to the master switch side of the
unlock wire. The master switch side will show (+)12V when the master switch is in the unlock
position and (-) ground when the master switch is in the middle position.
➤➤
HH22//GG BBLLUUEE//BBLLAACCKK
- Connect the blue/black wire to the other side of the unlock wire.
IMPORTANT! The H2/A and H2/B wires are not required for wiring the door locks. For
detailed wiring instructions for these two wires, refer to the beginning of the Door Lock
Harness (H2) Wire Connection Guide section.Depending on the type of door lock system,
there may be additional H2 harness wires that are not used for wiring the door locks.
