154
DIRECTV HD DVR RECEIVER USER GUIDE

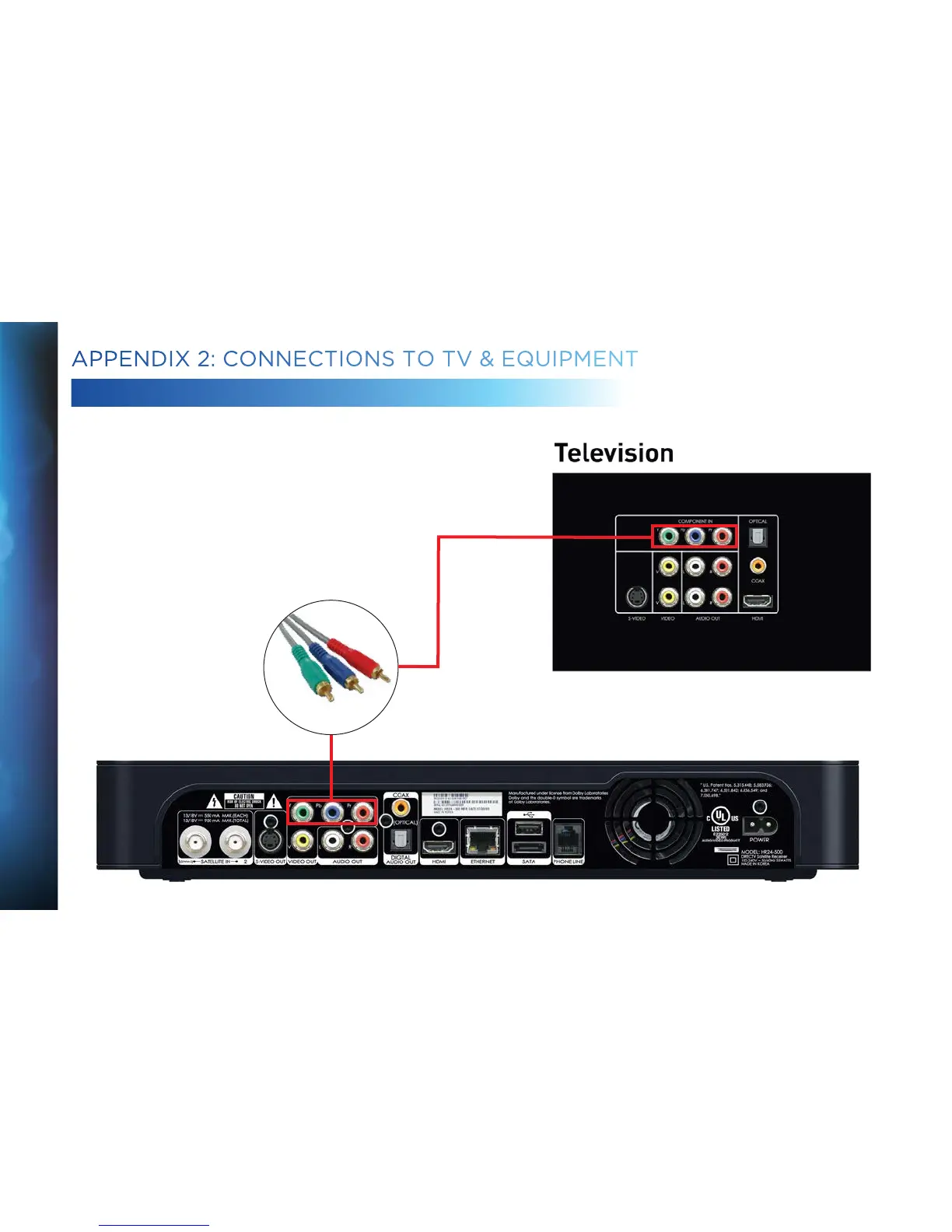

Example: TV with Component Video Connectors
Here is an example using a TV that has component video connectors
as the best video input.
Note: A Component Video connection will not provide a 1080p
picture nor 3D TV.
Component Video requires a separate audio connection.
HD TV CONNECTIONS
Component
Video
APPENDIX 2: CONNECTIONS TO TV & EQUIPMENT
