Getting Started
6

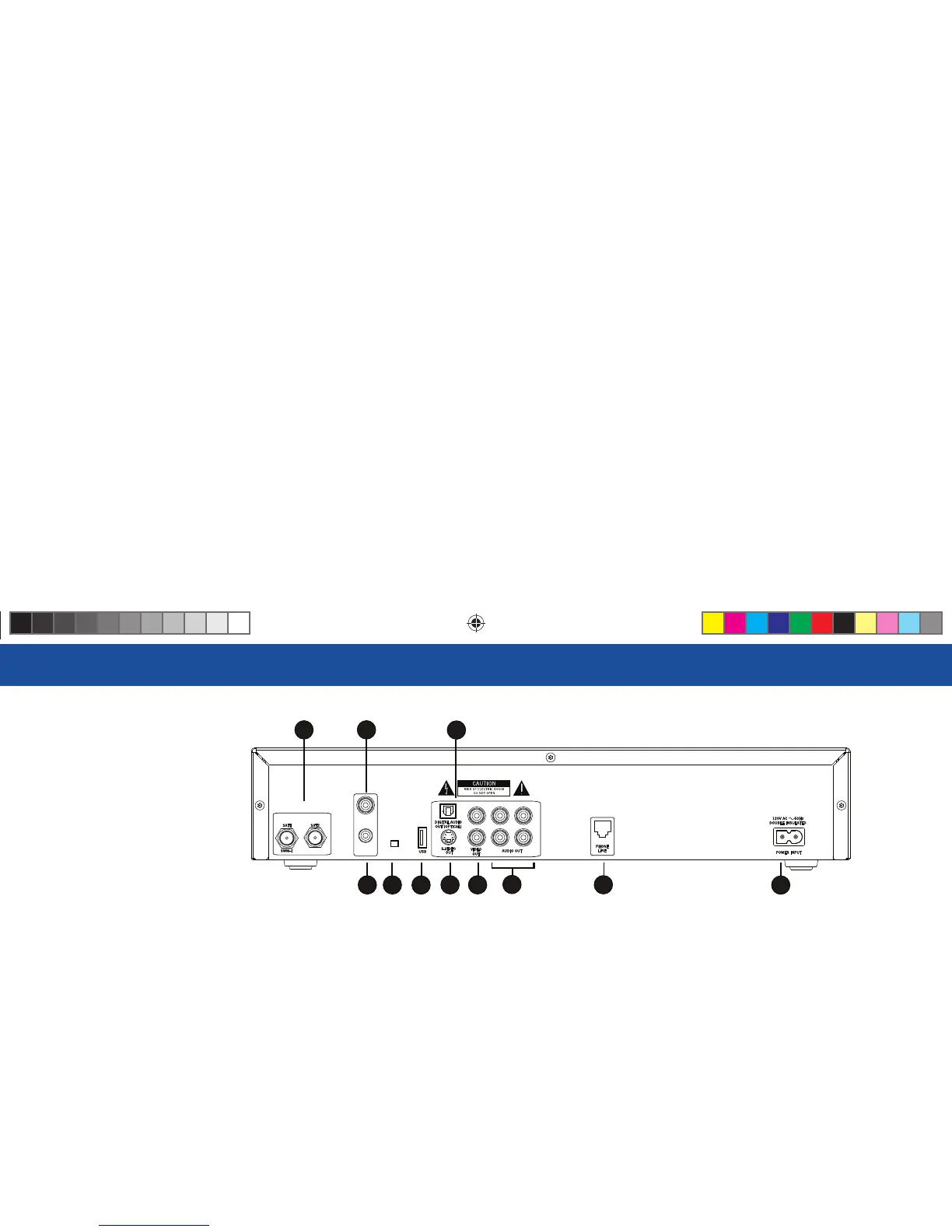

DIRECTV Plus DVR Rear Panel
1) SATELLITE IN – (2 inputs) Use to connect the DIRECTV Plus DVR to the satellite dish antenna.
Both inputs must be used to get the full range of DIRECTV Plus DVR features.
2) OFF-AIR IN – Connect a standard TV antenna or cable feed to the DIRECTV Plus DVR using this
jack, then connect the OUT TO TV to your TV’s antenna input. To watch from your off -air antenna
signal, turn off the DIRECTV Plus DVR. Note that you will not be able to record programs received
off the air on your DIRECTV Plus DVR.
3) OUT TO TV – Connects the DIRECTV Plus DVR to your TV or VCR using RF coaxial cable. is
jack provides the most basic connection, carrying good sound and video quality.
4) 3/4 CHANNEL SWITCH – Allows you to choose the channel that is not used in your area (3 or 4)
when the receiver is connected to TV using RF coaxial cable from the DIRECTV Plus DVR’s OUT
TO TV.
5) USB PORT – For future use.
OFF-AIR
IN
OUT
TO TV
CHANNEL
SATELLITE IN
10
6
2
1
8
4
9
7
3
5
11
Your equipment may not look exactly like the model illustrated.
