Dish TV SmartVU+ - Your SmartVU+ (A7070); Front Panel; Back Panel

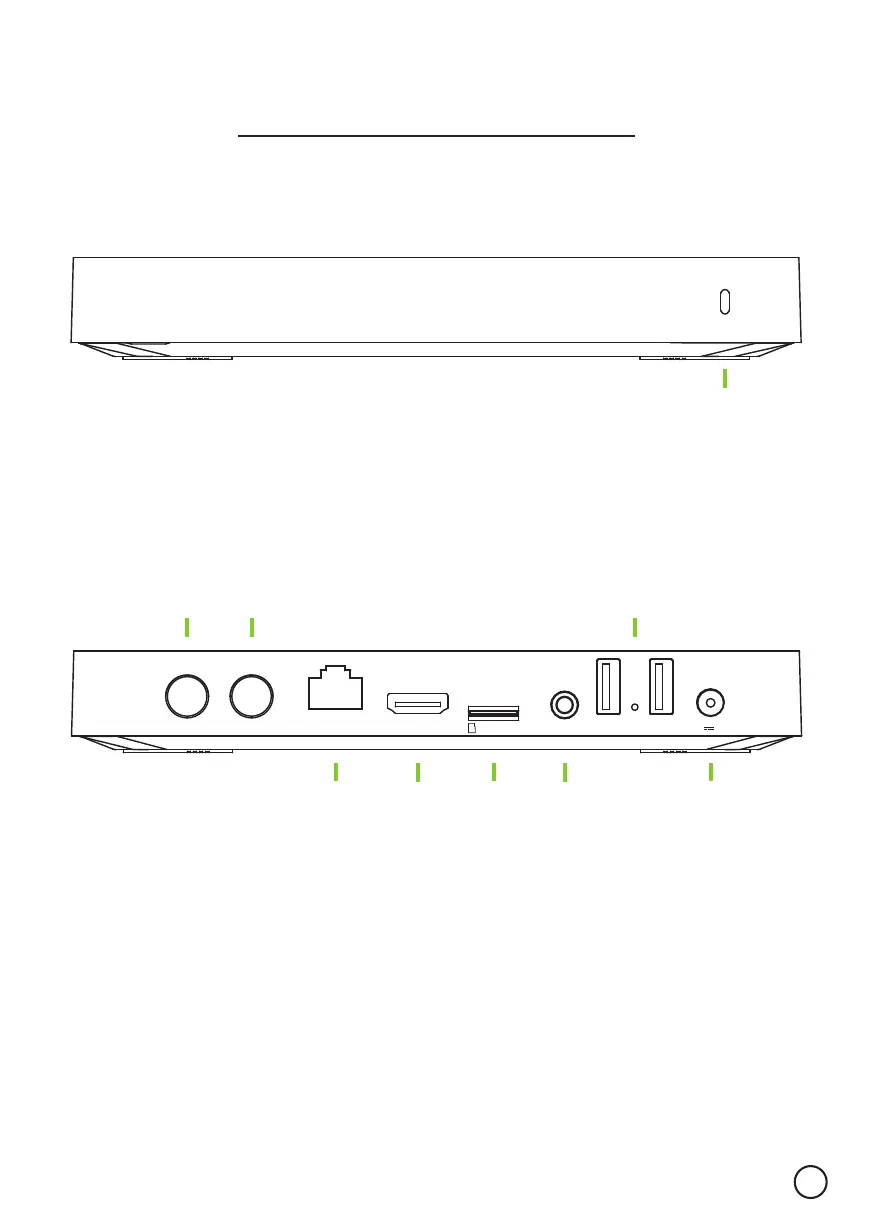

Your SmartVU+ (A7070)
04
¹Requires use of an AV Adapter Cable (not supplied).
Back Panel
Front Panel
04
08
03
05
01
1. RF IN
Connect to UHF Aerial cable.
2. LNB IN
Connect to Satellite Dish cable.
3. ETHERNET
Wired Internet Connectivity.
4. HDMI
High Definition output for HDTV.
5. TF CARD
Storage, etc.
6. AV-OUT¹
Standard Definition output to TV.
7. USB
Firmware Update, Storage, etc.
8. DC 12V
Connect the Power Adapter.
01
1. LED STATUS
RED: Standby. BLUE: Power On.
TF CARD USB USB HDMILAN AVRF IN LNB IN 12V 1.5A
06
0702
