Controls - 22 1330 Operator’s Manual
Control Console
CMW

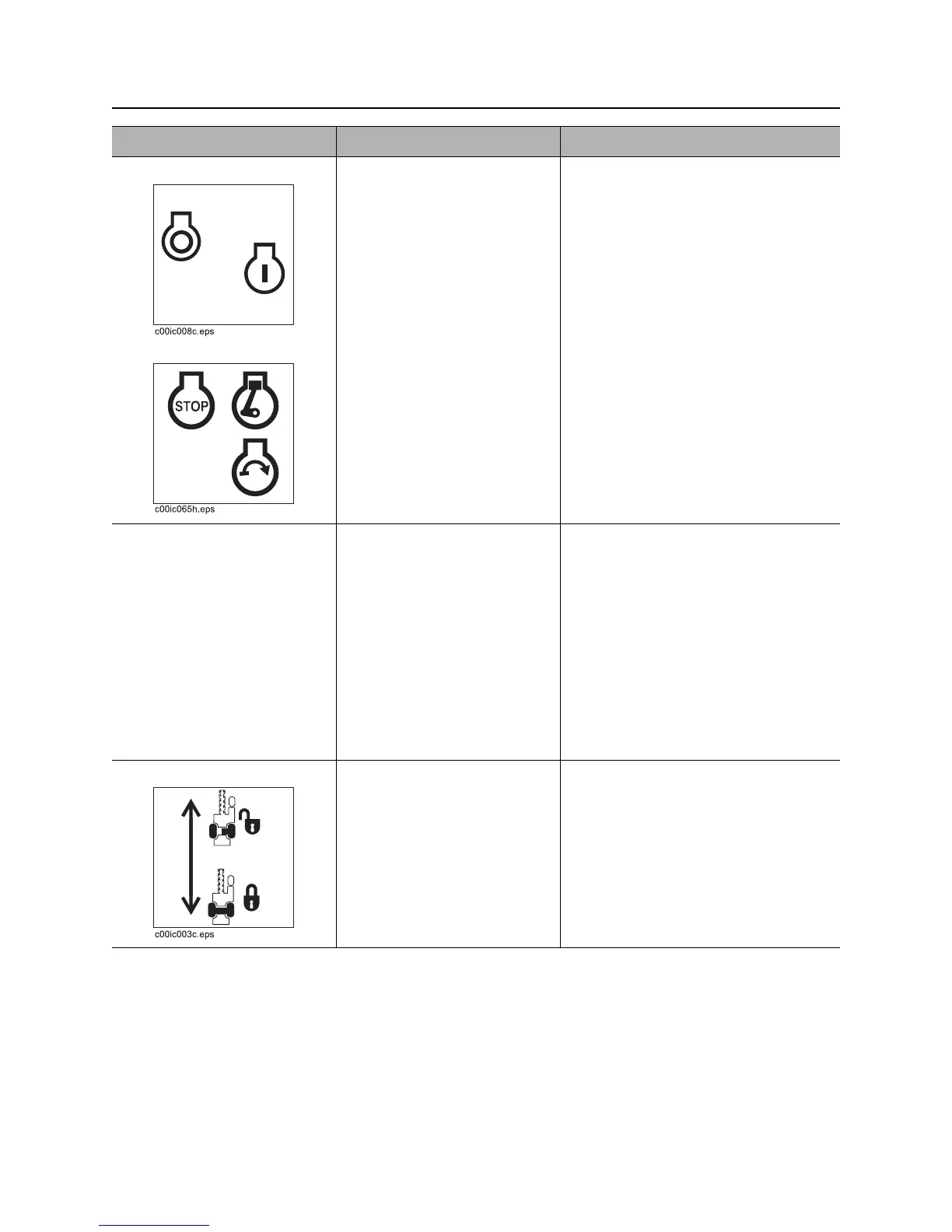

6. Ignition switch Units with rope start:
To turn power on, turn
clockwise to middle position.
Engine will start when rope is
pulled.
To stop engine, turn
counterclockwise.
Units with electric start:
To start engine, turn all the
way clockwise.
To stop engine, turn
counterclockwise.
7. Manual start bypass
button
To bypass electric start
system and allow manual
rope start with dead battery:
• Turn ignition switch to
ON.
• Push and hold bypass
button while pulling rope
to start engine.
• Release bypass button
when engine starts.
IMPORTANT: If ignition switch is not
in ON position, engine will start but
will not continue running after bypass
button is released.
8. Axle lock (blue) To unlock axle, push.
To lock axle, pull.
Use unlocked axle to maneuver
trencher.
Use locked axle for loading, straight
trenching, and driving over rough
terrain.
