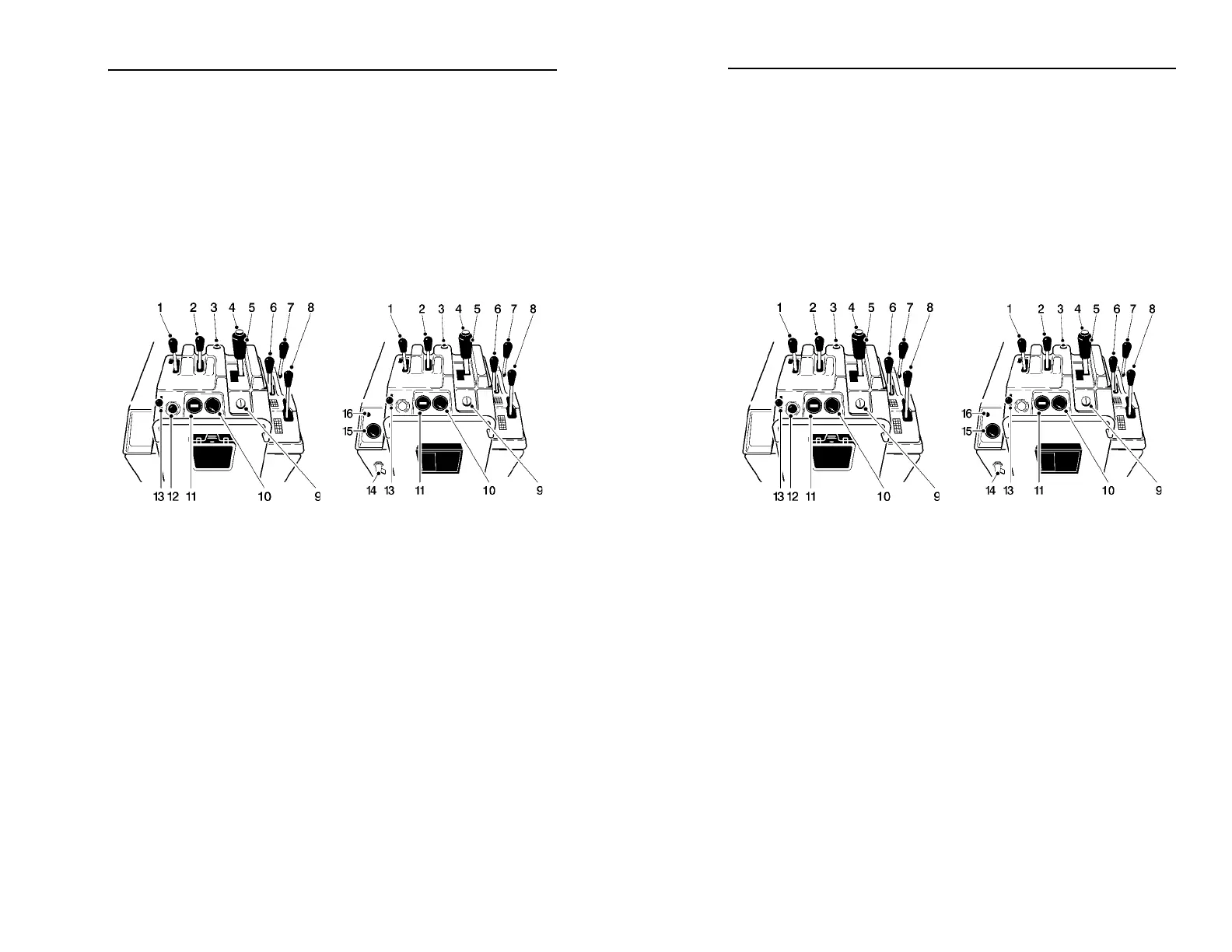

1820 - CONTROLS 11
CONSOLE
1820 - CONTROLS 11
CONSOLE
CONTROLS
CONSOLE
Gasoline Engine
Diesel Engine
om1783a
om1783
1. Axle lock (blue)
2. Boom control (green)
3. Oil pressure indicator
4. Operator presence switch
(red)
5. Speed/Direction control
(orange)
6. Hydraulic pump control
(orange)
7. Roto Witch control
(optional)
8. Digging chain control
(yellow)
9. Ignition switch
10. Voltmeter
11. Hourmeter
12. Choke (gas only)
13. Throttle
14. Battery disconnect switch
(diesel only)
15. Water temperature gauge
(diesel only)
16. Glow plug indicator (diesel
only)
CONTROLS
CONSOLE
Gasoline Engine
Diesel Engine
om1783a
om1783
1. Axle lock (blue)
2. Boom control (green)
3. Oil pressure indicator
4. Operator presence switch
(red)
5. Speed/Direction control
(orange)
6. Hydraulic pump control
(orange)
7. Roto Witch control
(optional)
8. Digging chain control
(yellow)
9. Ignition switch
10. Voltmeter
11. Hourmeter
12. Choke (gas only)
13. Throttle
14. Battery disconnect switch
(diesel only)
15. Water temperature gauge
(diesel only)
16. Glow plug indicator (diesel
only)
