Ditch Witch 1820 - Lubrication (Continued); Headshaft Reducer Box Oil Maintenance

1820 - LUBRICATION 59
REDUCER BOXES
1820 - LUBRICATION 59
REDUCER BOXES
Headshaft Reducer Box
Check headshaft reducer box oil after every 500 hours.
Change headshaft reducer box oil after first 50 hours of operation
and then every 500 hours.

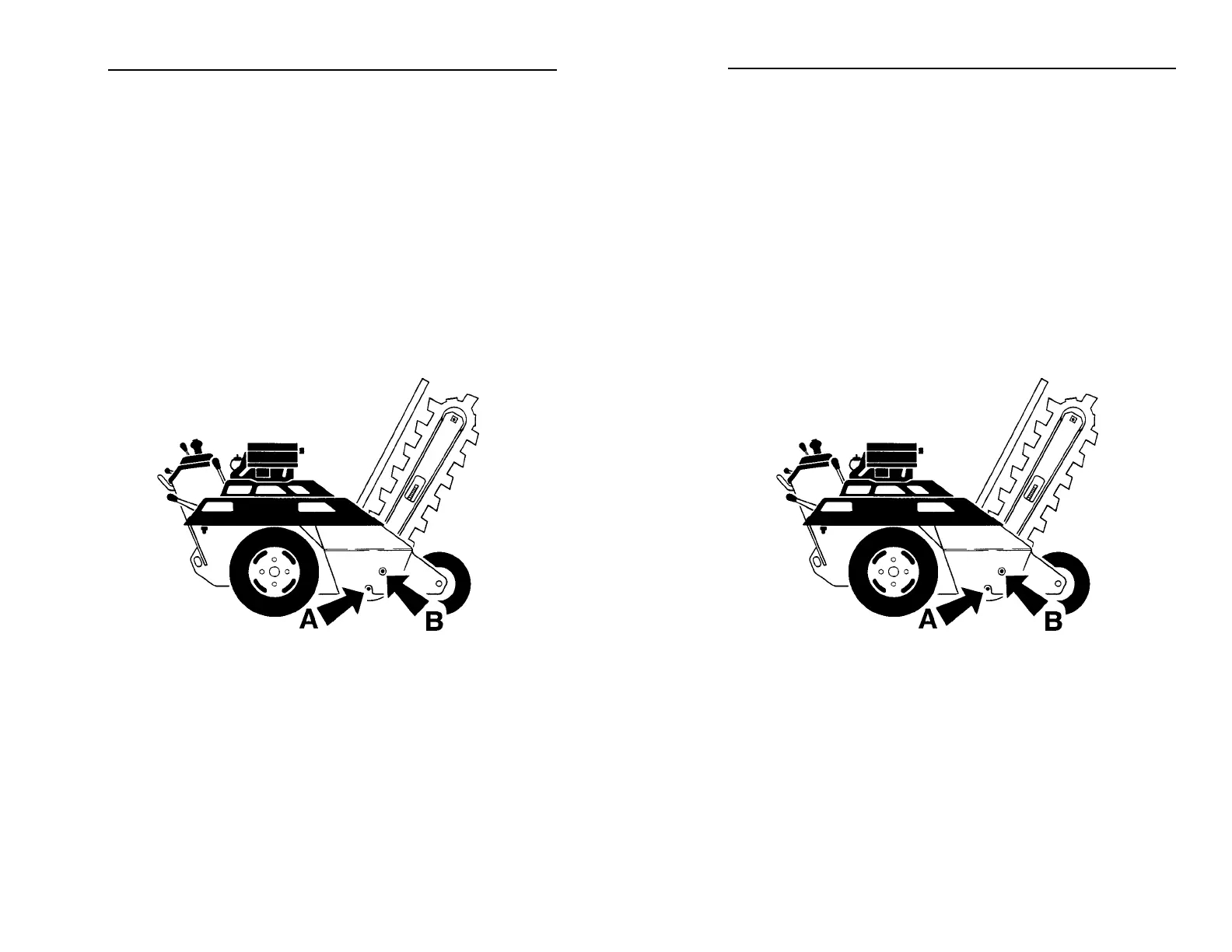

• Remove gear box fill plug (B) through access hole. Oil should
be at bottom of fill opening threads.
• Drain at plug (A).
• Refill gear box with 2.5 pint (1.2 L) MPL.
• Do not overfill.
om1039.pcx
Headshaft Reducer Box
Check headshaft reducer box oil after every 500 hours.
Change headshaft reducer box oil after first 50 hours of operation
and then every 500 hours.
• Remove gear box fill plug (B) through access hole. Oil should
be at bottom of fill opening threads.
• Drain at plug (A).
• Refill gear box with 2.5 pint (1.2 L) MPL.
• Do not overfill.
om1039.pcx
