Ditch Witch C24x User Manual

Specifications - 116 Cx Series Operator’s Manual
C30x
C30x

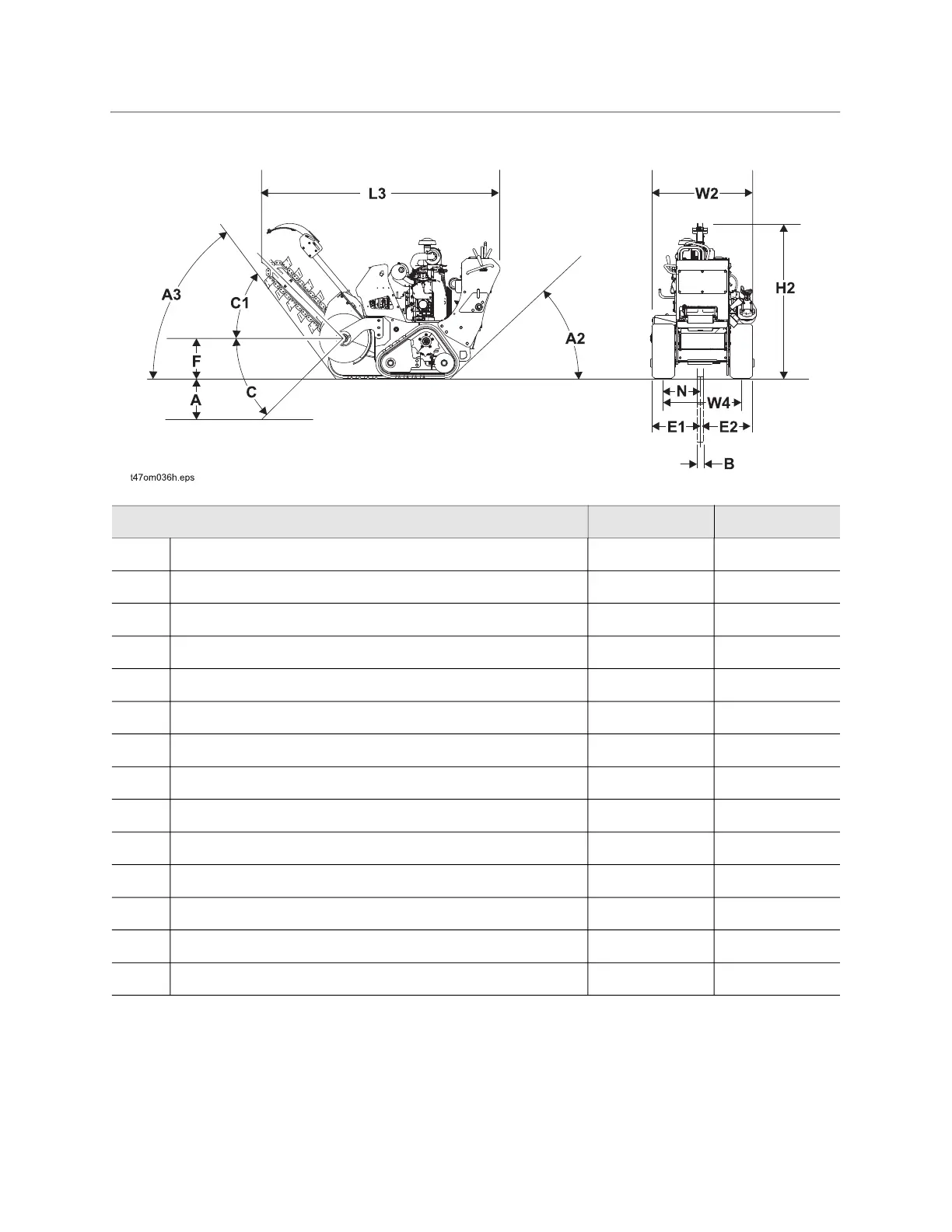

Unless otherwise noted, dimensions are based on 48” (1220mm) boom in transport position.
Dimensions US Metric
A Trench depth, max 48” 1.2m
A2 Angle of departure 45° 45°
A3 Angle of approach 51° 51°
B Trench width 4.3-6” 110-150mm
C Boom travel down 63° 63°
C1 Boom travel up 60° 60°
E1 Centerline trench to outside edge of machine, left 17.2” 437mm
E2 Centerline trench to outside edge of machine, right 18.6” 472mm
F Headshaft height, digging chain 13.7” 348mm
H2 Height 66” 1680mm
L3 Length, max 101” 2570mm
N Spoil discharge reach 14.1” 358mm
W2 Width 35.8” 909mm
W4 Tread 27” 686mm

Ditch Witch C24x Specifications

General

Engine Make	Kubota
Engine Type	Diesel
Transmission	Hydrostatic
Gross Power	24.8 hp
Max Digging Depth	5 ft
Width	48 in
Horsepower	24.8 hp
Max Trenching Depth	5 ft
